11.16
9928487 R01 - 2018 RANGER XP 1000 Service Manual
© Copyright Polaris Industries Inc.
ACCESSING MENUS AND OPTIONS
GAUGE SETTINGS MENU
Press and release the MODE button to cycle through the
Area 1 modes until the desired default mode displays.
See Mode Information Displays, page 11.15.
Press and hold the MODE button to enter the settings
menu.

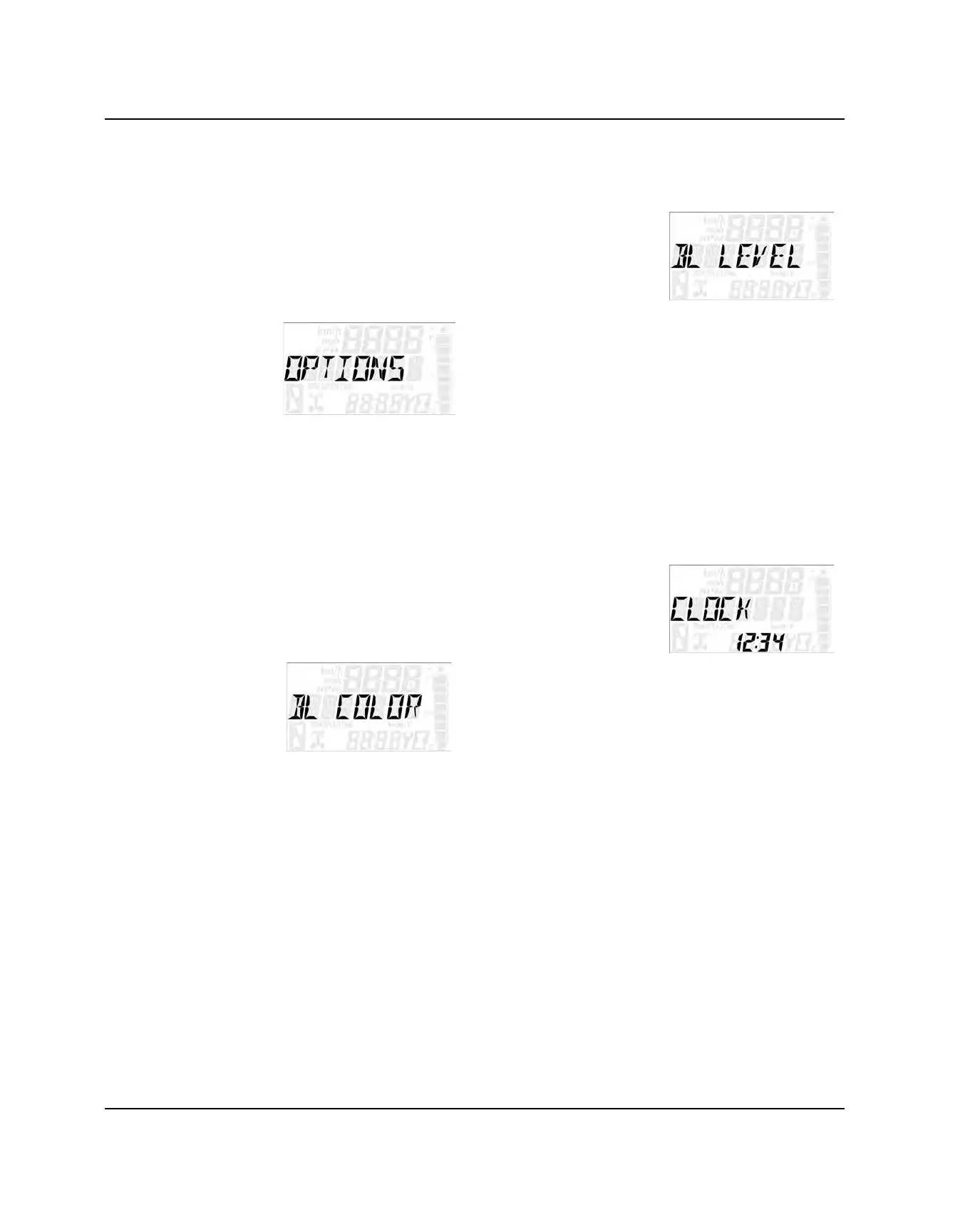

The OPTIONS screen will display for a few seconds.
1. Press and release
either toggle button to
cycle to the desired
option.
2. Press MODE to select
the option.
3. Press either toggle
button to cycle to the
desired setting.
4. Press MODE to save
and exit to the settings
menu.
5. Press and hold the
MODE button to exit the
settings menu.
BACKLIGHT COLOR
The information center
backlight can be set to
either blue or red.
1. Press and hold the
MODE button to enter
the settings menu.
2. Press either toggle
button to cycle to the
“BL COLOR” option.
Press MODE to select.
3. Press either toggle
button to cycle to the
desired setting.
4. Press MODE to save
and exit to the settings
menu,
BACKLIGHT BRIGHTNESS
The information center backlight can be set to either blue
or red.
1. Press and hold the
MODE button to enter
the settings menu.
2. Press either toggle
button to cycle to the
“BL LEVEL” option.
Press MODE to select.
3. Press “UP” button to
increase brightness.
Press “DOWN” button
to decrease brightness.
4. Press MODE to select
and exit to the settings
menu.
CLOCK
The clock must be reset any time the battery has been
disconnected or discharged.
1. Press and hold the
MODE button to enter
the settings menu.
2. Press either toggle
button to cycle to the
“CLOCK” option. Press
MODE to select.
3. Press either toggle
button to cycle to the
desired setting (12H or
24H). Press MODE to
select.
4. Press either toggle
button to change each
segment of the clock.
Press MODE to accept
a change and advance
to the next segment.
ELECTRICAL
