6. Measure camshaft bore and compare to
specifications.
NOTE
Replace cylinder head if camshaft journal bores are
damaged or if worn past the service limit.
MEASUREMENT
Camshaft Carrier Bore I.D.:
.9055 - .9063" (23.000 - 23.021 mm)
Service Limit:
.9072" (23.044 mm)
7. Calculate oil clearance by subtracting camshaft
journal O. D. s from camshaft carrier bore I. D. s.
Compare to specification.
MEASUREMENT
Calculated Camshaft Oil Clearance:
.0000 - .0026" (0.001 - 0.067 mm)
Service Limit:
.0039" (0.1 mm)
CYLINDER HEAD REMOVAL
NOTE
The cylinder head can be serviced with the engine
installed in the chassis.
Necessary Preliminary Procedures
• Remove intake Assembly Intake System Assembly
View, page 3.13
• Remove exhaust assembly Exhaust System Assembly
View, page 3.19
• Remove Valve Cover Valve Cover Removal, page 3.29
• Remove Camshafts Camshaft Removal, page 3.29

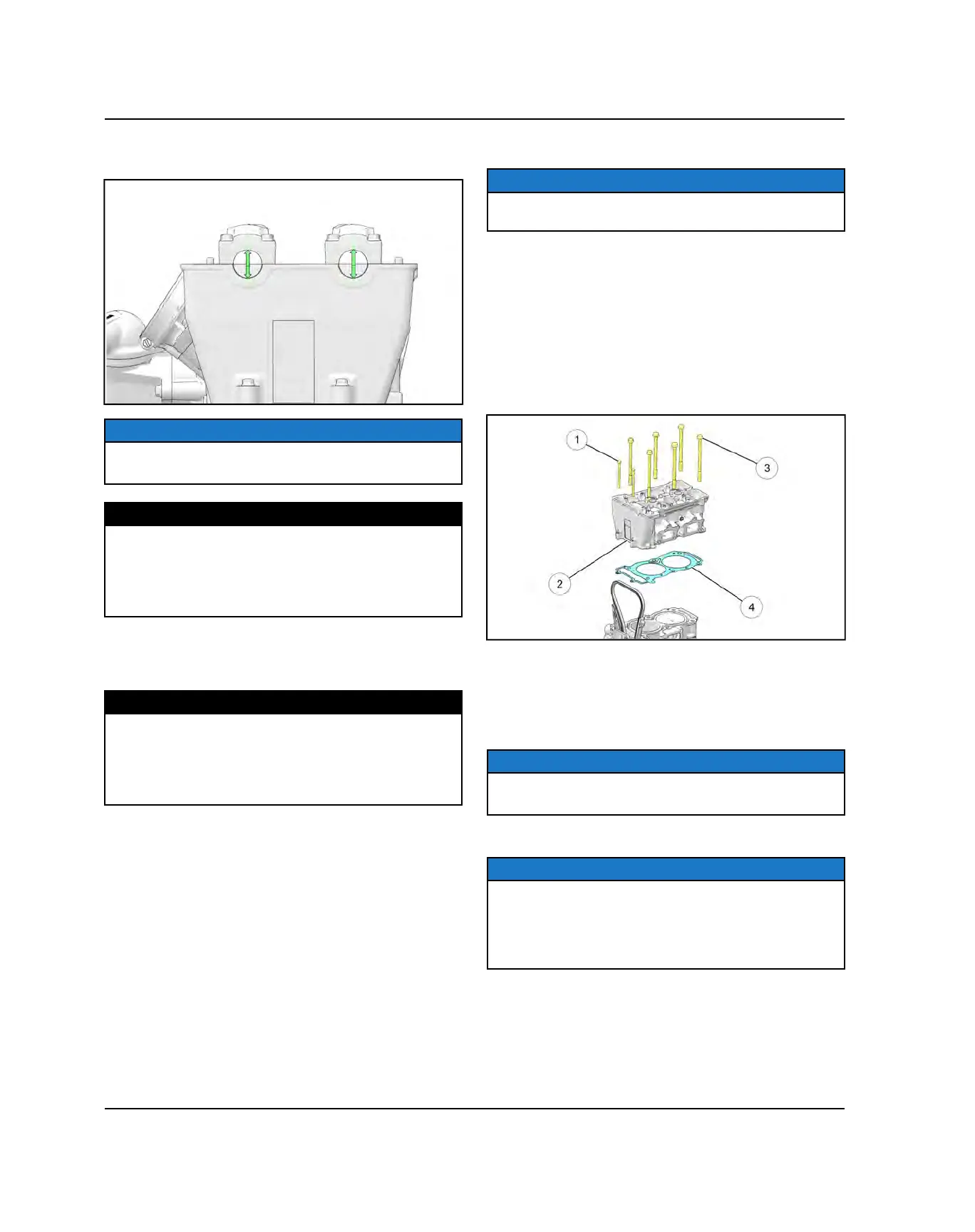

1. Remove the two outer M6 bolts
q
that retain the
cylinder head
w
to the cylinder.
2. Loosen the six cylinder head bolts
e
evenly 1/8 turn
at a time until all are loose.
3. Remove and discard the cylinder head bolts.
4. Tap cylinder head lightly with a soft faced hammer
until loose.
NOTE
Tap only in reinforced areas or on thick parts of the
cylinder head casting.
5. Remove the cylinder head
w
and head gasket
r
.
NOTE
Once the cylinder head is removed, nothing retains the
cylinder to the engine. DO NOT rotate the engine
without using the Cylinder Holding & Camshaft Timing
Plate (PU-50563). Refer to Cylinder / Piston
Removal, page 3.51 procedure.
Necessary Subsequent Procedures
1. Check Engine Timing Camshaft Timing - Quick Refer-
ence, page 3.80
