8
9928487 R01 - 2018 RANGER XP 1000 Service Manual
© Copyright Polaris Industries Inc.
8.3
STEERING ASSEMBLY SERVICE

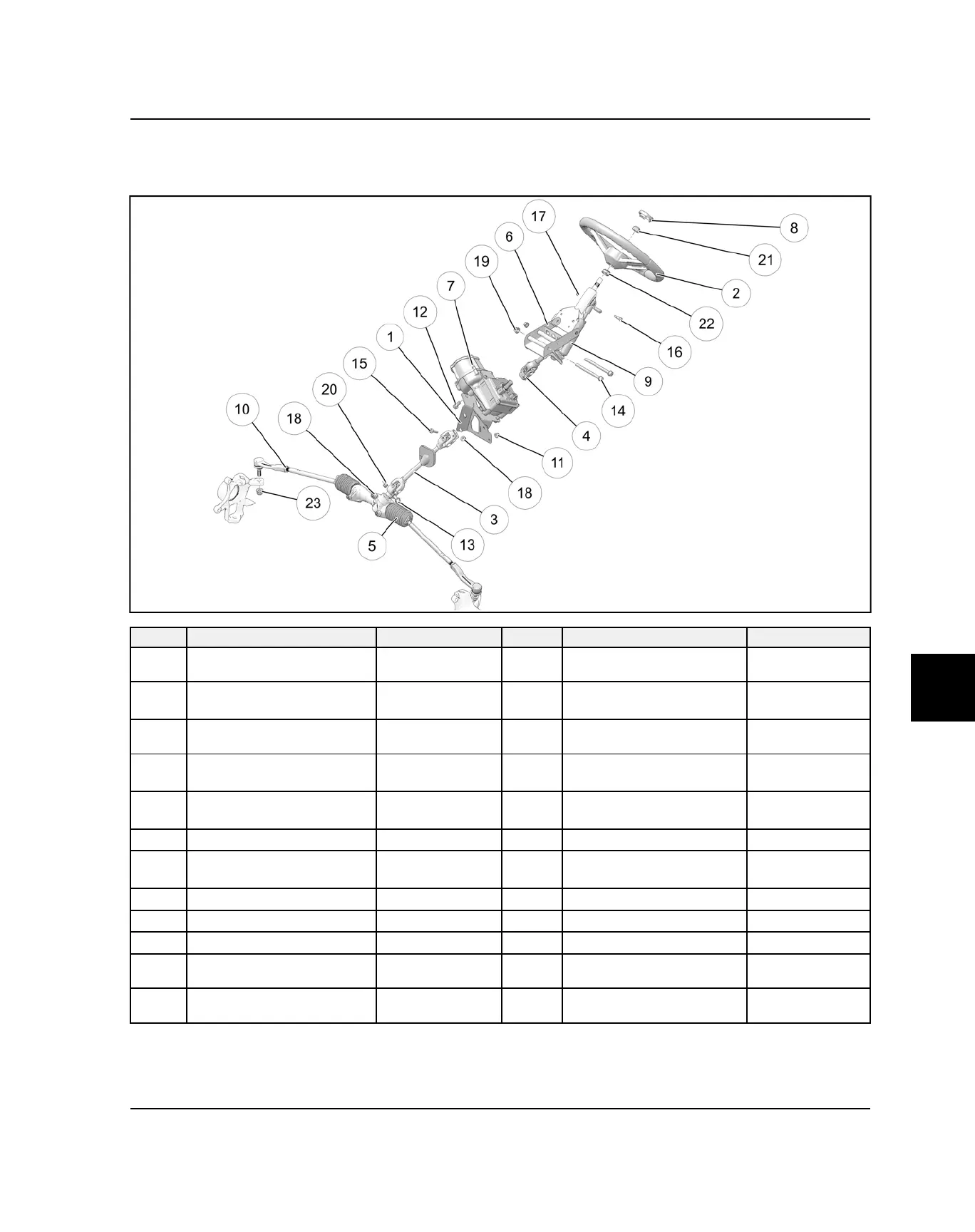

STEERING ASSEMBLY VIEW
ITEM
DESCRIPTION TORQUE
ITEM
DESCRIPTION TORQUE
q
Power Steering Mount
NA
f
Lower Steering Shaft Pinch
Bolt
25 ft-lbs (34 Nm)
w
Steering Wheel
NA
g
Steering Wheel Tilt
Assembly Bolt
NA
e
Steering Shaft, Lower
NA
h
Upper Steering Shaft Pinch
Bolt
25 ft-lbs (34 Nm)
r
Steering Shaft , Upper
NA
j
Steering Adjustment Shock
Assembly Bolt
NA
t
Steering Gear Box Asm.
NA
k
Steering Adjustment Shock
Assembly Nut
7 ft-lbs (10 Nm)
y
Tilt Steering Asm.
NA
l
Steering Rack Mount Nuts 40 ft-lbs (54 Nm)
u
Power Steering Asm.
NA
1(
Steering Wheel Tilt
Assembly Nut
40 ft-lbs (54 Nm)
i
Steering Wheel Cap
NA
2)
Lower Steering Shaft Nut
NA
o
Tilt Assembly
NA
2!
Nut
65 ft-lbs (88 Nm)
a
Tie Rod Jam Nut
13 ft-lbs (18 Nm)
2@
Steering Bushing
NA
s
Power Steering Unit Frame
Nut
NA
2#
Tie Rod Retaining Nut
30 ft-lbs (41 Nm)
+ 90°
d
Power Steering Unit Frame
Fasteners
14 ft-lbs (19 Nm)
STEERING / SUSPENSION
