5.10
9928487 R01 - 2018 RANGER XP 1000 Service Manual
© Copyright Polaris Industries Inc.
PVT SYSTEM SERVICE

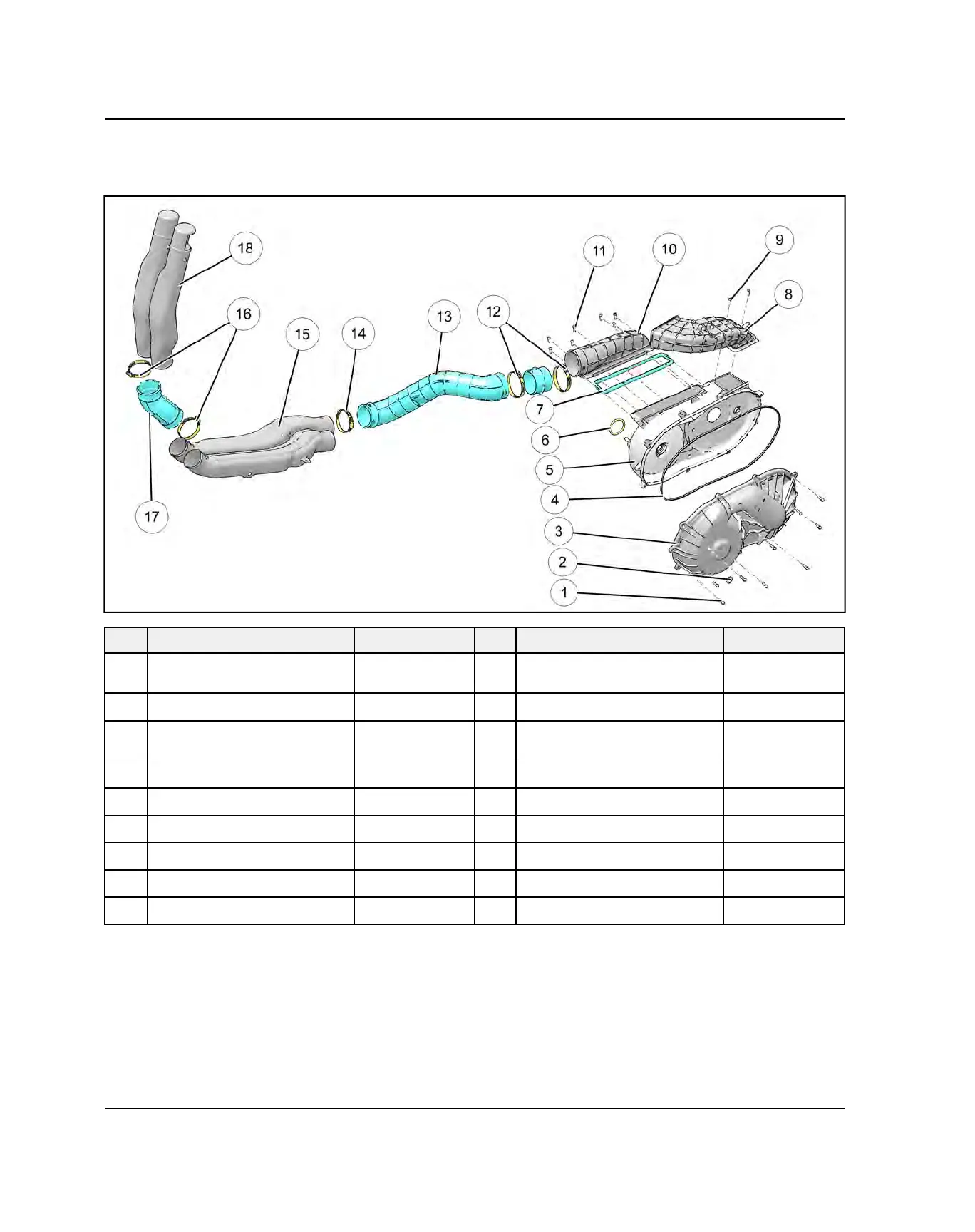

PVT COVERS AND DUCTING ASSEMBLY VIEW
REF
DESCRIPTION
TORQUE
REF
DESCRIPTION
TORQUE
q
CLUTCH COVER
FASTENERS
35 in-lbs (4 Nm)
a
INLET DUCT NA
w
DRAIN PLUG NA
s
INLET DUCT FASTENERS
54 in-lbs (6 Nm)
e
OUTER CLUTCH COVER NA
d
PVT HOSE ADAPTER
CLAMPS
35 in-lbs (4 Nm)
r
SEAL, OUTER COVER
NA
f
PVT INLET HOSE TO TUNNEL NA
t
INNER CLUTCH COVER NA
g
PVT INLET HOSE CLAMP
35 in-lbs (4 Nm)
y
O-RING NA
h
INTAKE CLUTCH DUCT NA
u
SEAL, INLET DUCT
NA
j
PVT INLET HOSE CLAMP
35 in-lbs (4 Nm)
i
OUTLET DUCT NA
k
PVT HOSE JOINT NA
o
OUTLET DUCT FASTENERS
54 in-lbs (6 Nm)
l
REAR FENDER INTAKE NA
PVT SYSTEM
