9928487 R01 - 2018 RANGER XP 1000 Service Manual
© Copyright Polaris Industries Inc.
4.7

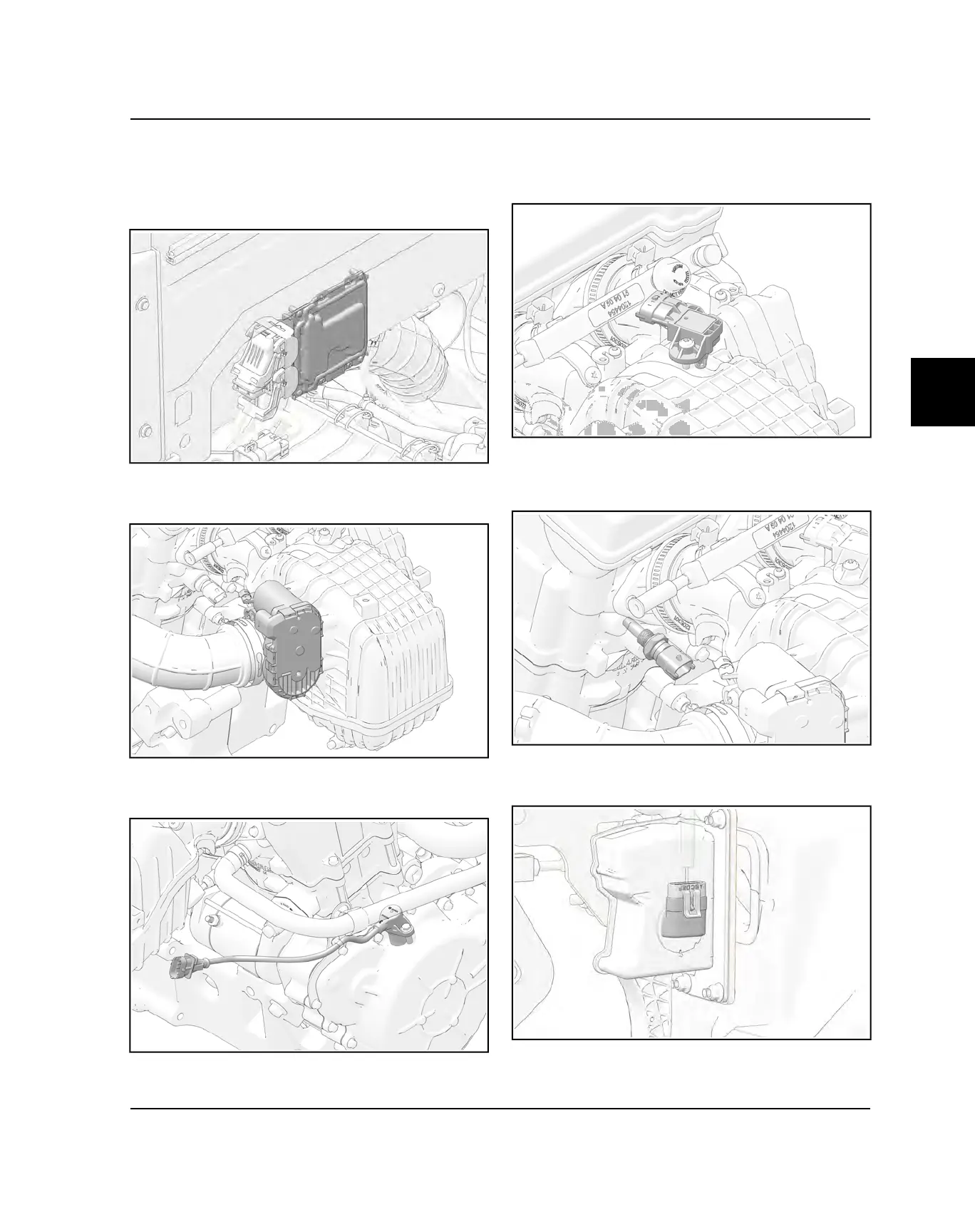

FUEL SYSTEM COMPONENT LOCATIONS
1. Electronic Control Unit (ECU)
- Located behind the driver seat. Tilt the cargo box to
access.
2. Electronic Throttle Control (ETC)
- Located between the intake boot and intake plenum.
3. Crankshaft Position Sensor (CPS)
- Located on top of the stator cover.
4. Temperature / Manifold Absolute Pressure Sensor
(T-MAP)
- Located on top of the intake plenum.
5. Engine Coolant Temperature Sensor (ECT)
- Located on the cylinder head below the intake
manifold.
6. Pedal Position Sensor (PPS)
- Located on the side of the throttle pedal assembly.
