FUEL LINE QUICK CONNECT REMOVAL
When properly used, fuel line quick connects can be
disconnected and reconnected multiple times for vehicle
service needs. If the quick connect is damaged, it is not
designed to be serviceable and the fuel line assembly
will require replacement.

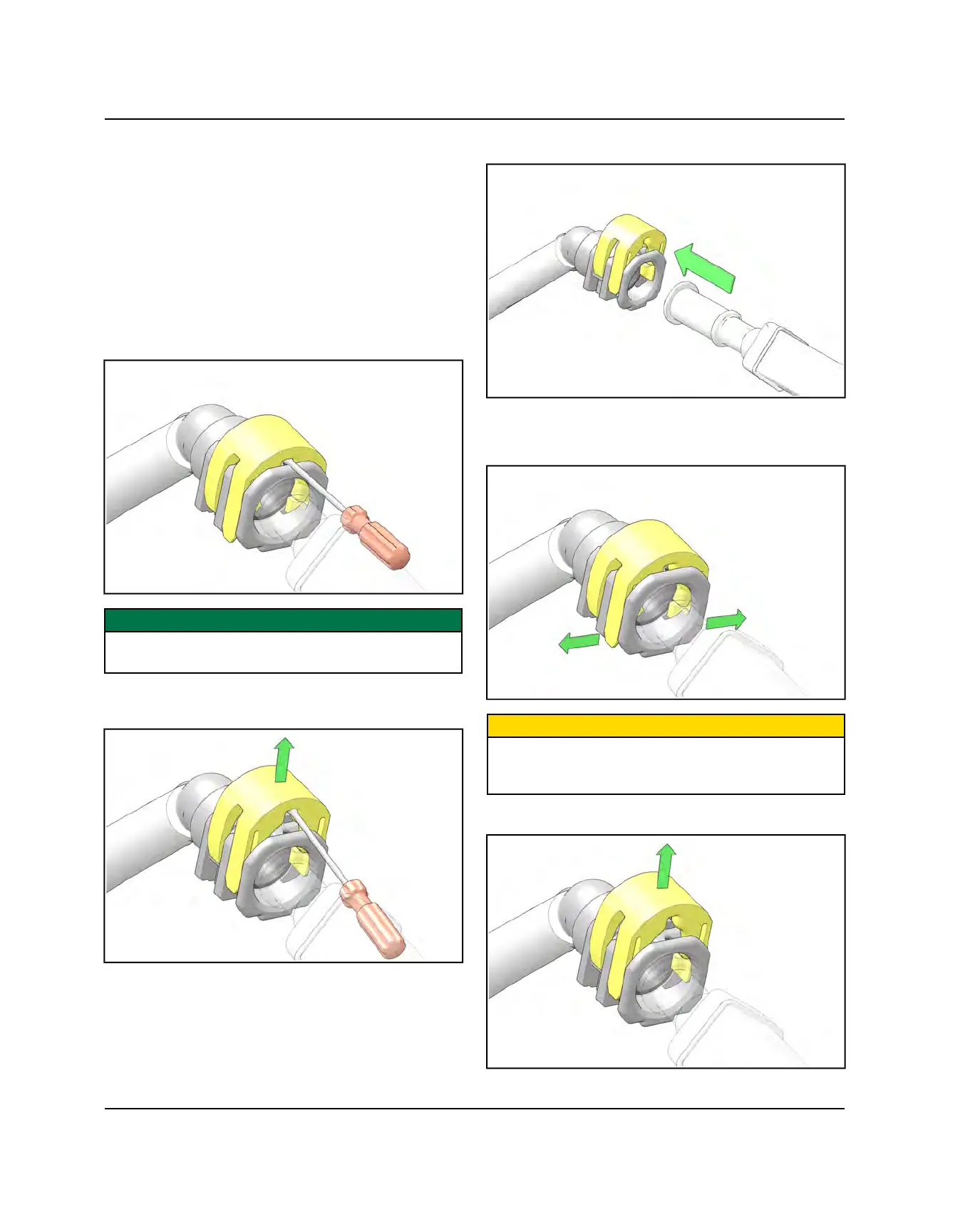

There are two methods of disconnecting Fuel line quick
connects, the preferred method is by using a small
straight blade screwdriver.
Screwdriver Method:
1. Insert a #1 flat blade screw driver into the pry slot on
the top of the retaining clip.
IMPORTANT
To prevent damage to the retaining clip, be sure to use
a flat blade screwdriver that fits into the pry slot.
2. Gently pry the retaining clip upwards into the open
position.
3. Remove quick connect from the fuel fitting.
Hand Method:
4. Gently pull outward on retaining tabs to unlock
retaining clip.
CAUTION
Do not over-pry or excessively bend the retaining tabs.
This can damage the retaining clip, and require
replacement of the fuel line assembly.
5. Push retaining clip upward into the open position.
