6.20
9928487 R01 - 2018 RANGER XP 1000 Service Manual
© Copyright Polaris Industries Inc.

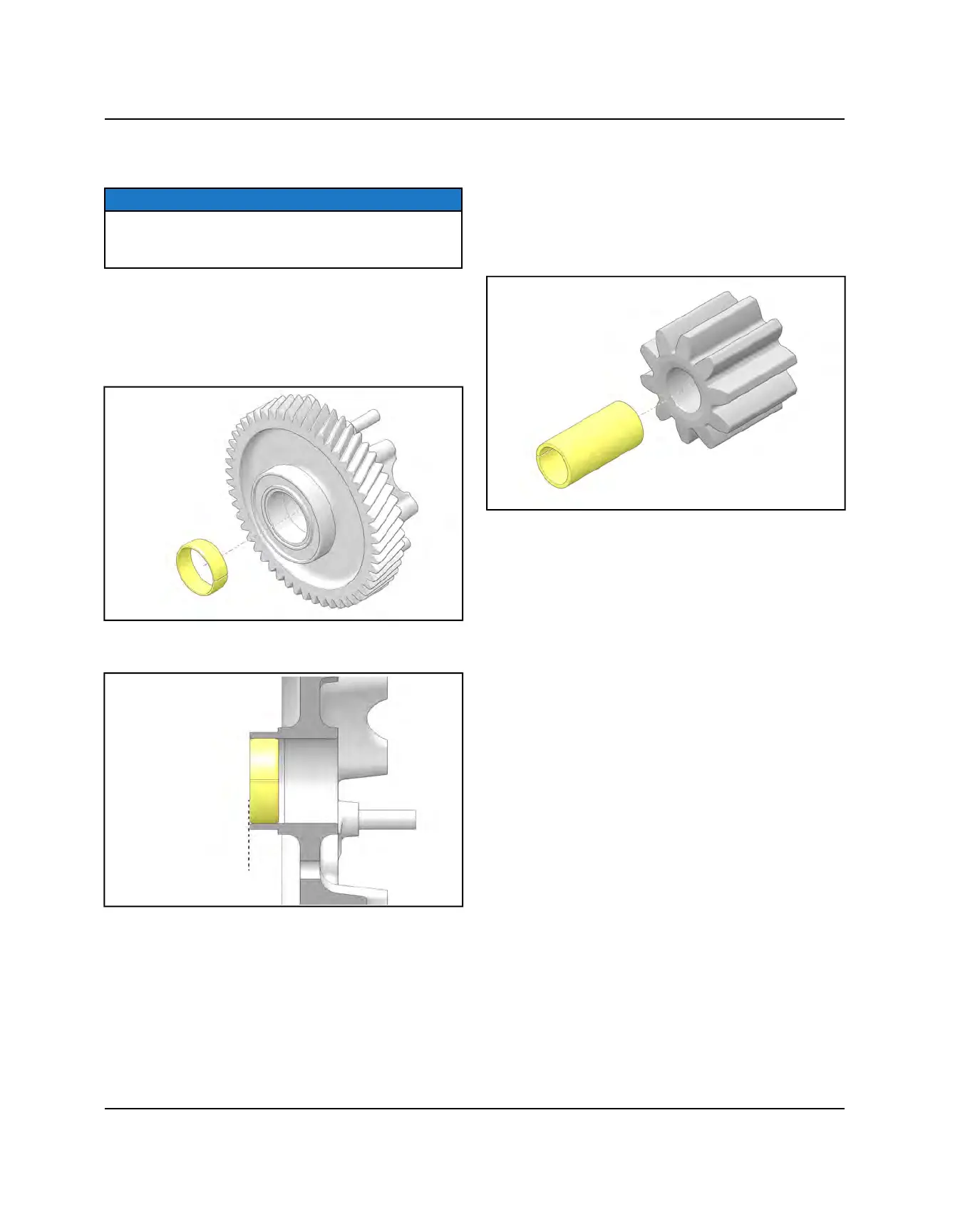

PLANETARY DIFFERENTIAL BUSHING
REPLACEMENT
NOTE
If the differential is completely assembled, perform the
Planetary Differential Disassembly, page 6.19
procedure.
Ring Gear Bushing Replacement
1. Press the old bushing out of the ring gear.
2. Thoroughly clean the bore of the ring gear and check
for any unwanted burs.
3. Press the new bushing into the ring gear housing.
4. Install the bushing flush to 1mm past the end of the
ring gear hub as shown.
Planet Gear Bushing Replacement
1. Press the old bushing out of the planet gear.
2. Thoroughly clean the bore of the planet gear and
check for any unwanted burs.
3. Press the new bushing into the planet gear until it is
flush on each end. Repeat this procedure for the
remaining planet gears.
TRANSMISSION
