9928487 R01 - 2018 RANGER XP 1000 Service Manual
© Copyright Polaris Industries Inc.
7.7

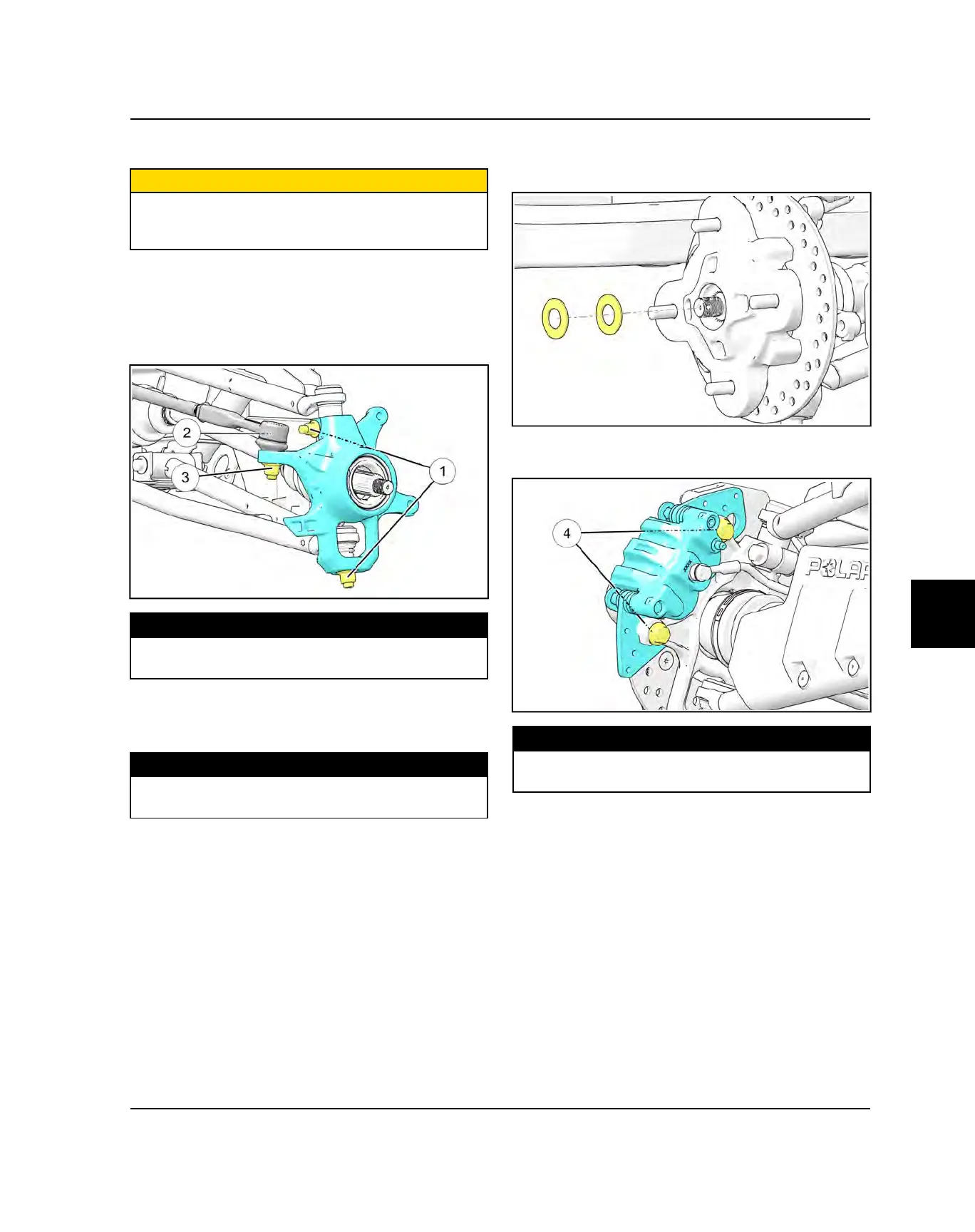

BEARING CARRIER INSTALLATION
CAUTION
New bolts have a pre-applied locking agent which is
destroyed upon removal. Always use new brake caliper
mounting bolts upon assembly.
1. Install the end of the drive shaft through the backside
of the bearing carrier.
2. Install the upper and lower ball joint ends into the
front bearing carrier.
3. Install pinch bolts
q
and torque to specification.
TORQUE
Ball Joint Pinch Bolts:
42 lb-ft (57 Nm)
4. Install the steering tie rod end
w
onto the front
bearing carrier and torque the fastener
e
to
specification.
TORQUE
Tie Rod End Fastener:
40 lb-ft (54 Nm)
5. Apply grease to the drive shaft splines.
6. Install front wheel hub assembly, cone washers, and
hand tighten the castle nut. Install washers with
domed side out.
7. Install the front brake caliper. Install the mounting
bolts
r
and torque to specification.
TORQUE
Front Caliper Mounting Bolts:
30 lb-ft (41 Nm)
FINAL DRIVE
