9
9928487 R01 - 2018 RANGER XP 1000 Service Manual
© Copyright Polaris Industries Inc.
9.17
FRONT CALIPER SERVICE

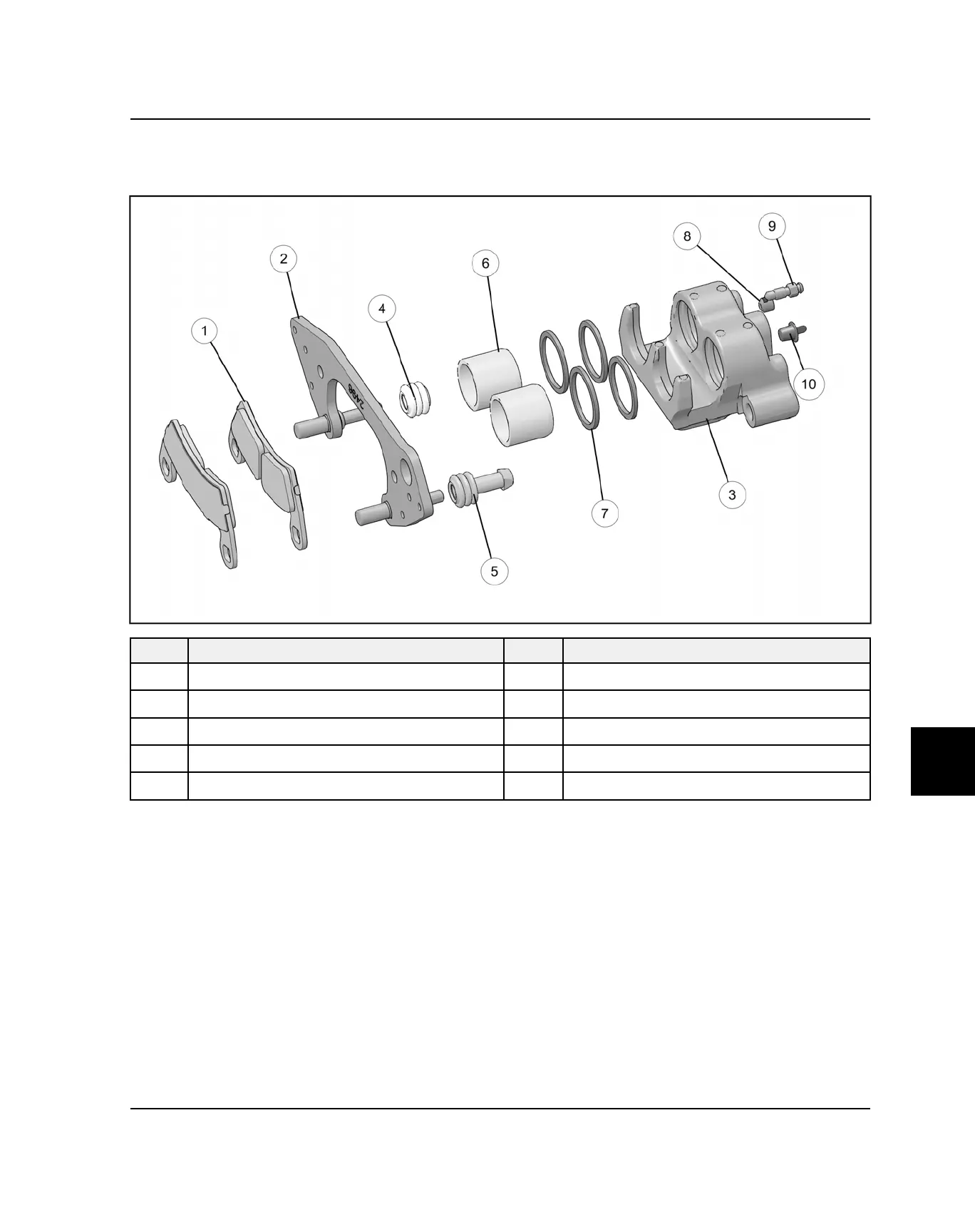

FRONT CALIPER ASSEMBLY VIEW
REF
PART DESCRIPTION
REF
PART DESCRIPTION
q
Brake Pad Assembly
y
Brake Piston
w
Caliper Mount Assembly
u
Ring
e
Brake Caliper
i
Bolt
r
Pin Seal Boot
o
Bleeder Screw
t
Pin Bushing Boot
a
Plug Cap
BRAKE SYSTEM
