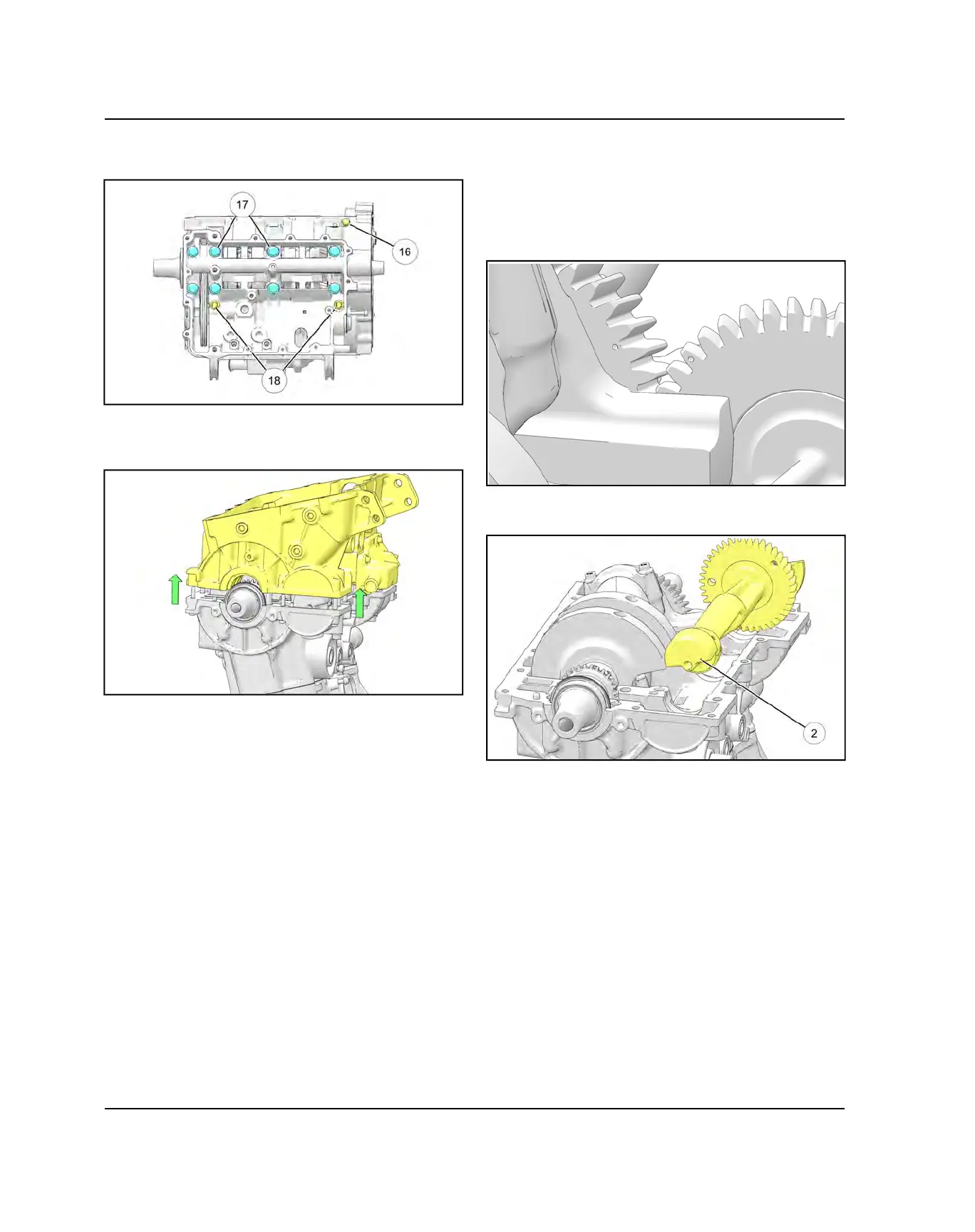

16.Remove the eight M10
k
, two M8
l
and one M6
j
lower crankcase bolts. Discard the eight M10 bolts.
17.Tap on the lower crankcase in reinforced areas with a
soft faced hammer to loosen. Carefully lift up and
remove the lower crankcase half.
BALANCE SHAFT REMOVAL / INSPECTION
1. Perform Crankcase Disassembly / Inspection, page
3.44 procedure.
2. Note timing marks on balance shaft and crankshaft
drive gears. Shafts must be properly timed upon
assembly.
3. Carefully rotate the balance shaft
w
and remove it
from the crankcase.
4. Inspect the balance shaft gear teeth for damage.
