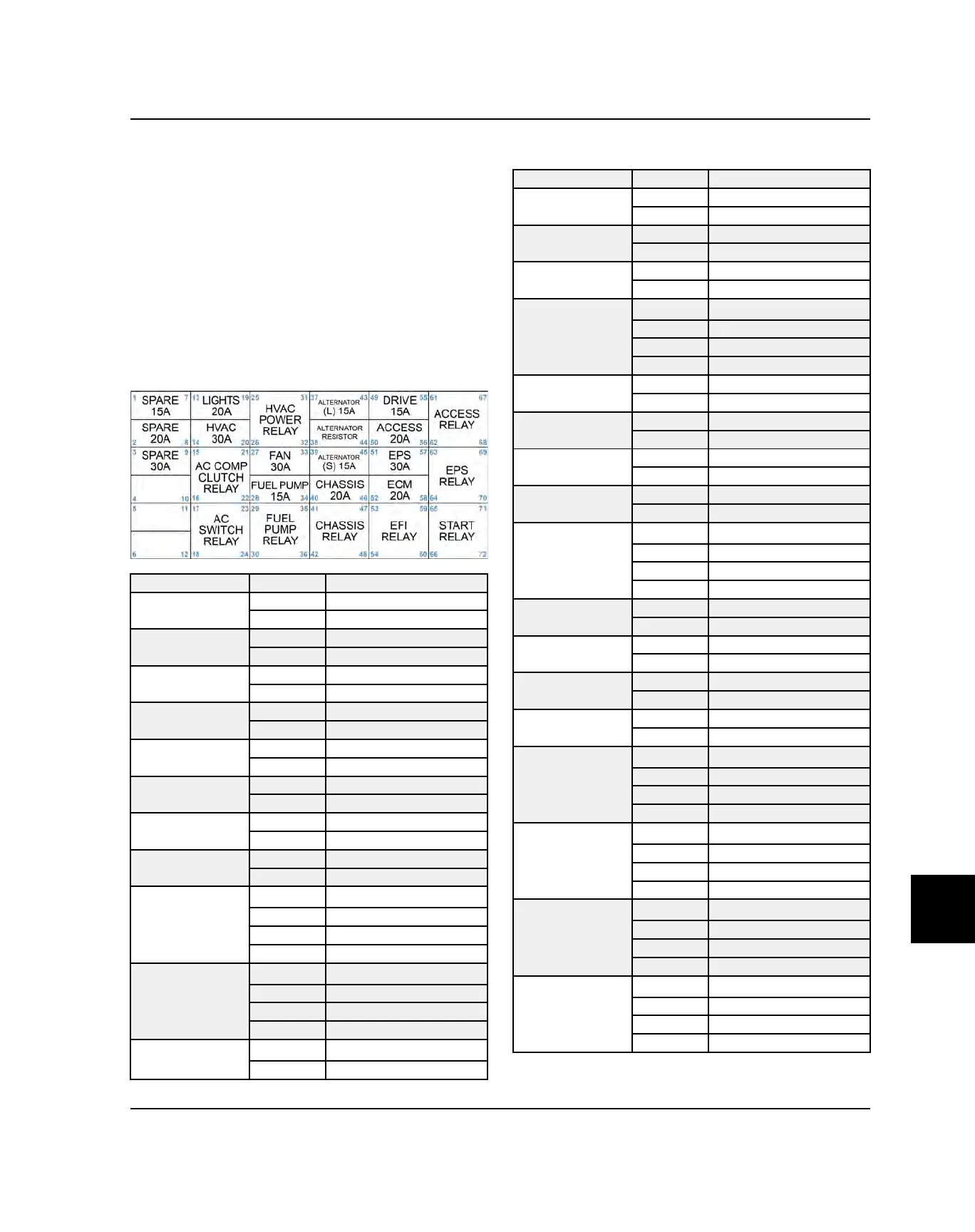

FUSES / RELAYS / CIRCUIT BREAK SERVICE
FUSE BOX OPERATION OVERVIEW
Located in the fuse box under the passenger seat, the
fuses provide overload protection for wiring and
components such as the instrument cluster, ECU, EFI
system, main harness, lights and accessories. The
relays assist with component operation like the cooling
fan, fuel pump, EFI system, and drive system. A
separate 20-amp circuit breaker, located near the fuse/
relay box, protects the fan motor circuit. NOTE: EPS
models have a separate electrical system which
includes a 30-amp fuse and relay. Refer to EPS
System Breakout, page 11.54 for EPS electrical
component details.
CIRCUIT PIN FUNCTION
Spare 15A Fuse
1
Power In
7 Power Out
Spare 20A Fuse
2 Power In
8 Power Out
Spare 30A Fuse
3 Power In
9 Power Out
OPEN
4 Power In
10 Power Out
OPEN
5 Power In
11 Power Out
OPEN
6 Power In
12 Power Out
Lights 20A Fuse
13 Power In
19 Power Out
HVAC 30A Fuse
14 Power In
20 Power Out
AC Comp Clutch
Relay
15
Coil High
16 Power In
21 Power Out
22 Coil Low
AC Switch Relay
17
Coil High
18 Power In
23 Power Out
24 Coil Low
HVAC Power
Relay
25
Coil High
26 Power In
CIRCUIT PIN FUNCTION
31 Power Out
32 Coil Low
Fan 30A Fuse
27
Power In
33 Power Out
Fuel Pump 15A
Fuse
28 Power In
34 Power Out
Fuel Pump Relay
29
Coil High
30 Power In
35 Power Out
36 Coil Low
Alternator (L)
15A Fuse
37 Power In
43 Power Out
Alternator
Resistor
38 Power In
44 Power Out
Alternator (S)
15A Fuse
39 Power In
45 Power Out
Chassis 20A
Fuse
40 Power In
46 Power Out
Chassis Relay
41
Coil High
42 Power In
47 Power Out
48 Coil Low
Drive 15A Fuse
49 Power In
55
Power Out
Accy 20A Fuse
50 Power In
56 Power Out
EPS 30A Fuse
51 Power In
57
Power Out
ECM 20A Fuse
52 Power In
58 Power Out
EFI Relay
53
Coil High
54 Power In
59 Power Out
60 Coil Low
Access Relay
61
Coil High
62 Power In
67 Power Out
68 Coil Low
EPS Relay
63
Coil High
64 Power In
69 Power Out
70 Coil Low
Start Relay
65
Coil High
66 Power In
71 Power Out
72 Coil Low
