11.6
9928487 R01 - 2018 RANGER XP 1000 Service Manual
© Copyright Polaris Industries Inc.

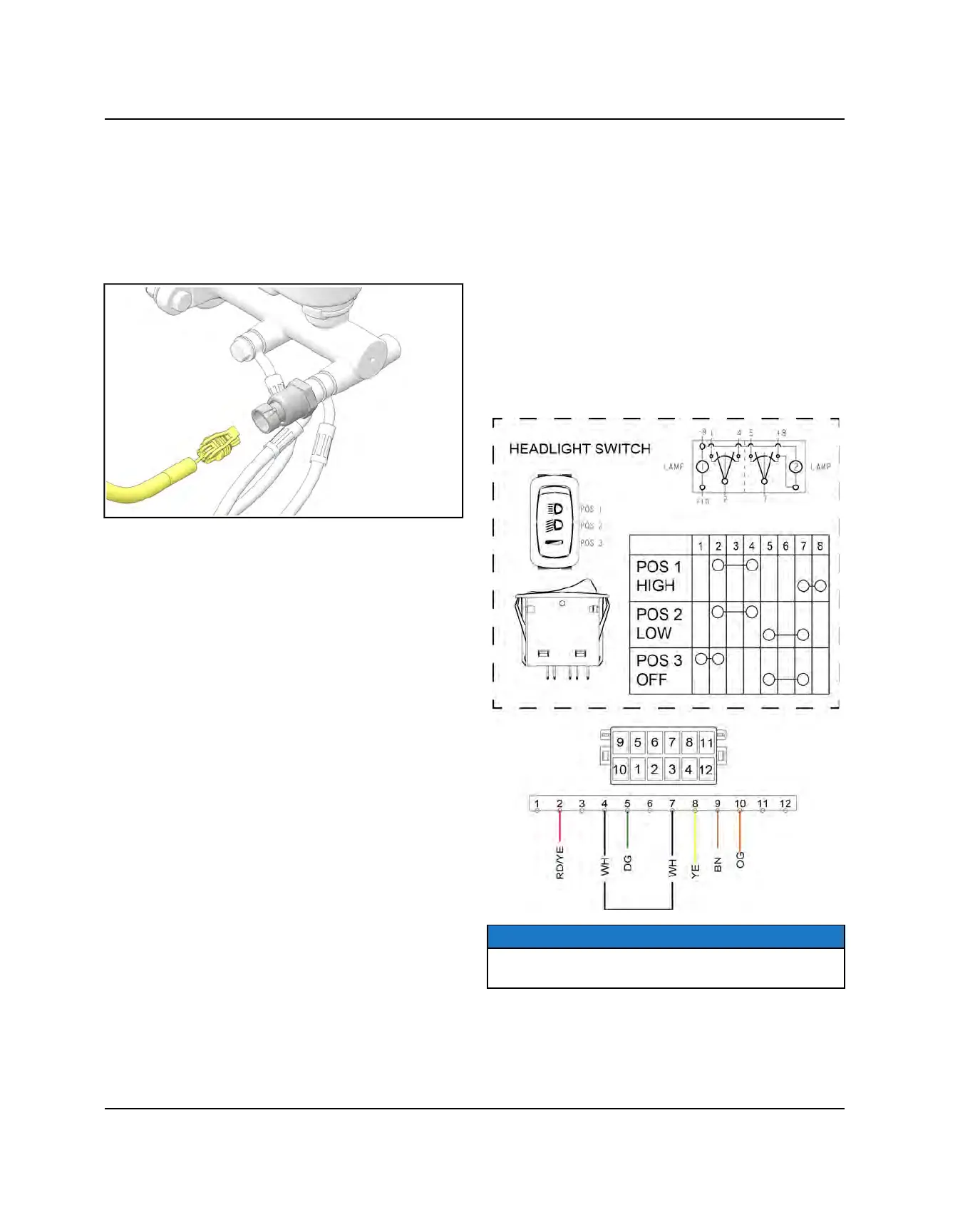

SWITCHES / CONTROLS SERVICE
BRAKE SWITCH
The brake switch is located on the front brake line of the
master cylinder. The brake switch can be accessed
through the front left wheel well opening.
1. Disconnect the vehicle harness from the brake
switch.
2. Connect an ohmmeter across switch contacts.
Reading should be infinite (OL).
3. Apply foot brake and check for continuity between
switch contacts. If there is no continuity or if
resistance is greater than 0.5 ohms, clean the switch
contacts and re-test. Replace switch if necessary.
4. If brake switch is being replaced, the brake system
will need to be bled. See Brake Fluid Replacement /
Brake Bleeding, page 9.9.
HEADLAMP SWITCH
1. Disconnect the headlamp switch harness by
depressing the connector locks and pulling on the
connector. Do not pull on the wiring.
2. Test between the 3 sets of outputs (HIGH / LOW /
OFF). If any of the tests fail, replace headlamp switch
assembly.
• Move the switch to HIGH. There should be continuity
between switch pins 2 and 4; 7 and 8.
• Move the switch to LOW. There should be continuity
between switch pins 2 and 4; 5 and 7.
• Move the switch to OFF. There should be continuity
between switch pins 1 and 2; 5 and 7.
NOTE
Pins 9 and 10 provide power and ground to light the
switch lamp.
ELECTRICAL
