9928487 R01 - 2018 RANGER XP 1000 Service Manual
© Copyright Polaris Industries Inc.
9.13

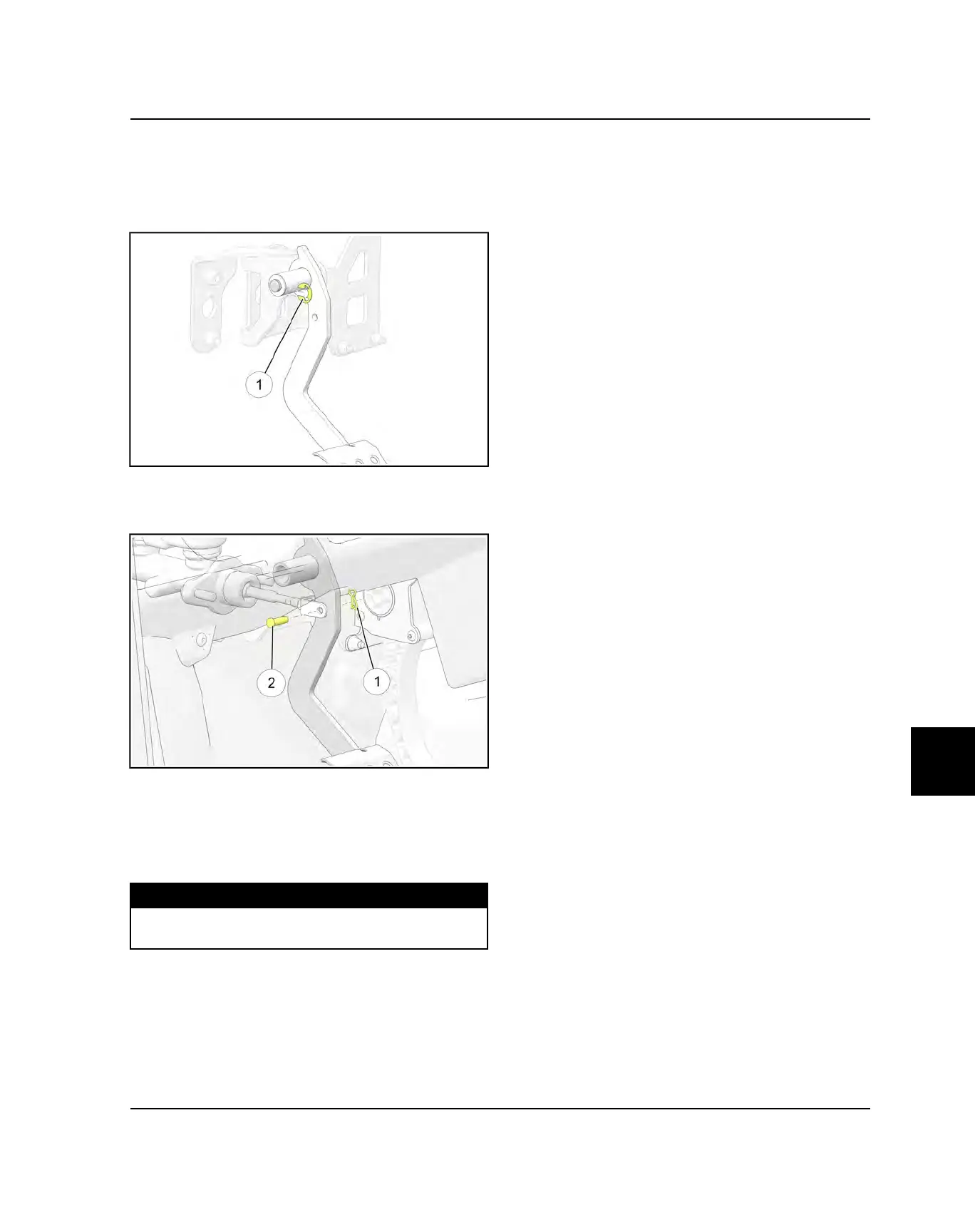

BRAKE PEDAL REPLACEMENT
BRAKE PEDAL REMOVAL
1. Remove the clip
e
from the end of the pedal mount
bracket.
2. Remove the retaining clip
q
and clevis pin
w
from
the master cylinder arm to free it from the brake
pedal.
3. Slide the brake pedal and bushings off the pedal
mount bracket.
BRAKE PEDAL INSTALLATION
1. If the pedal mount bracket was removed, torque
retaining nuts to specification.
TORQUE
Brake Pedal Mount Bracket Nuts:
18 lb-ft (24 Nm)
2. Install brake pedal to the pedal mount bracket and
secure with pin and clip.
3. Install the clevis pin and retaining clip securing the
brake pedal to the master cylinder arm.
BRAKE SYSTEM
