9928487 R01 - 2018 RANGER XP 1000 Service Manual
© Copyright Polaris Industries Inc.
10.13

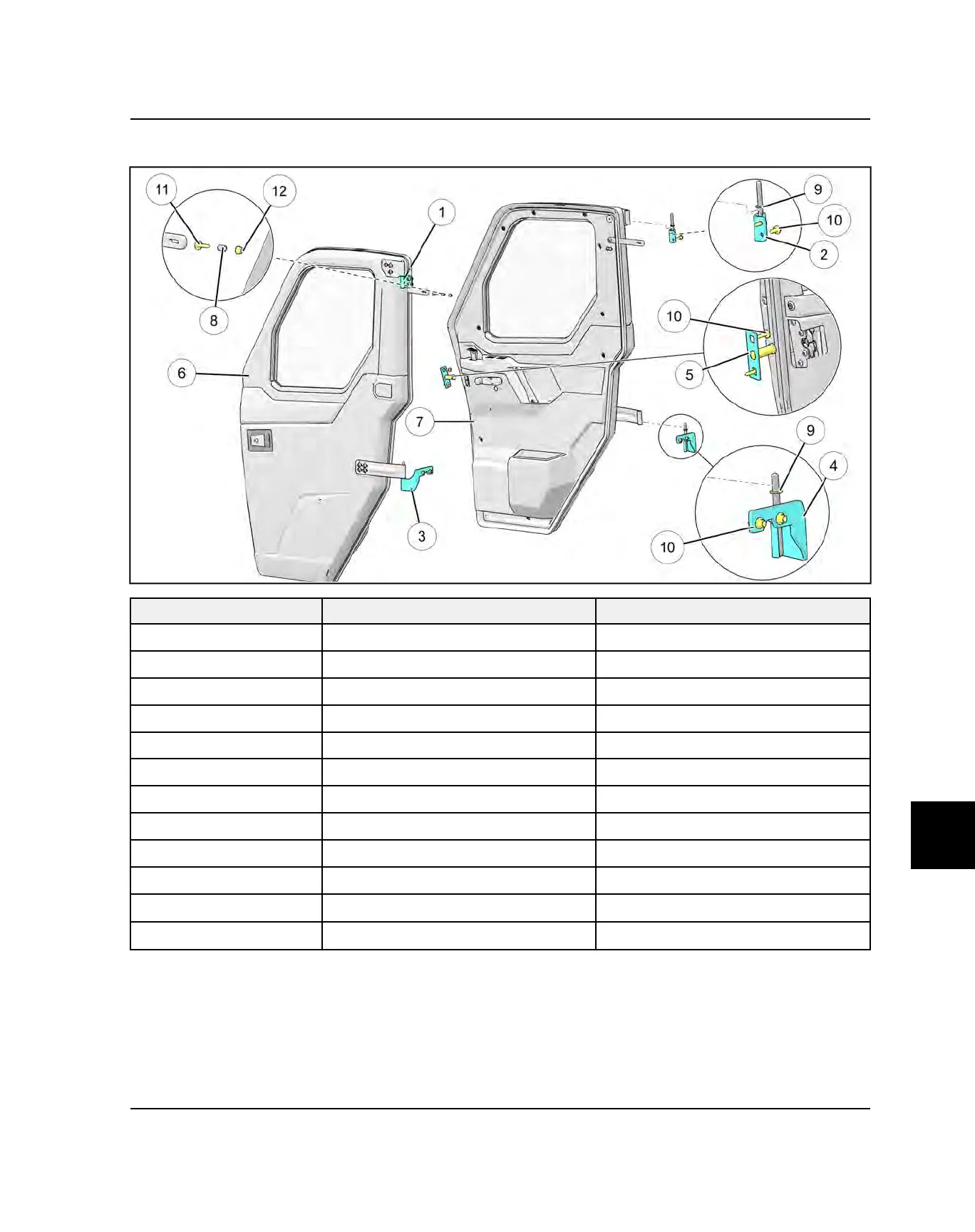

DOOR ASSEMBLY VIEW
REF
DESCRIPTION TORQUE
q
HINGE, UPPER-LH
NA
w
HINGE, UPPER-RH
NA
e
HINGE, LOWER-LF
NA
r
HINGE, LOWER-RH
NA
t
STRIKER
NA
y
DOOR ASSEMBLY-LH
NA
u
DOOR ASSEMBLY-RH
NA
i
DOOR RETAINER SPAER
NA
o
WASHER
NA
a
STRIKER HARDWARE 17 lb-ft (23 Nm)
s
DOOR RETAINER FASTENER 6 lb-ft (8 Nm)
d
DOOR RETAINER NUT 6 lb-ft (8 Nm)
BODY / FRAME
