DRIVEN CLUTCH SERVICE

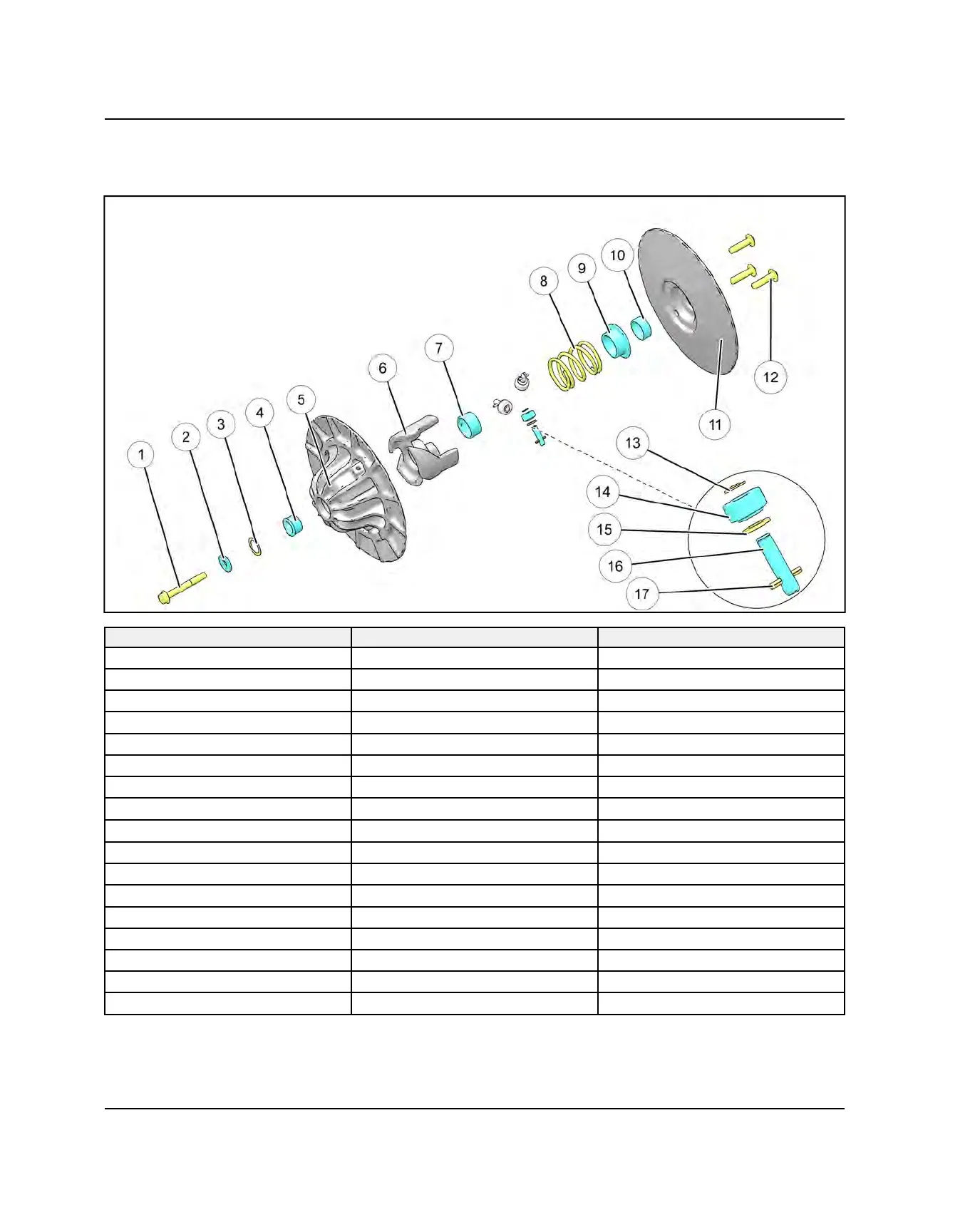

DRIVEN CLUTCH ASSEMBLY VIEW
REF DESCRIPTION
TORQUE / NOTE
q
Driven Clutch Bolt
43 ft-lbs (58 Nm)
w
Washer 0 - 8
e
Shim NA
r
Bushing
NA
t
Stationary Sheave
NA
y
Helix NA
u
Bushing
NA
i
Spring
NA
o
Spring Cup
NA
a
Bushing
NA
s
Moveable Sheave NA
d
Helix Fasteners
32 ft-lbs (44 Nm)
f
E-Clip Fully Seat in Grooves
g
Roller NA
h
Washer NA
j
Roller Pin NA
k
Spring Pin
NA
