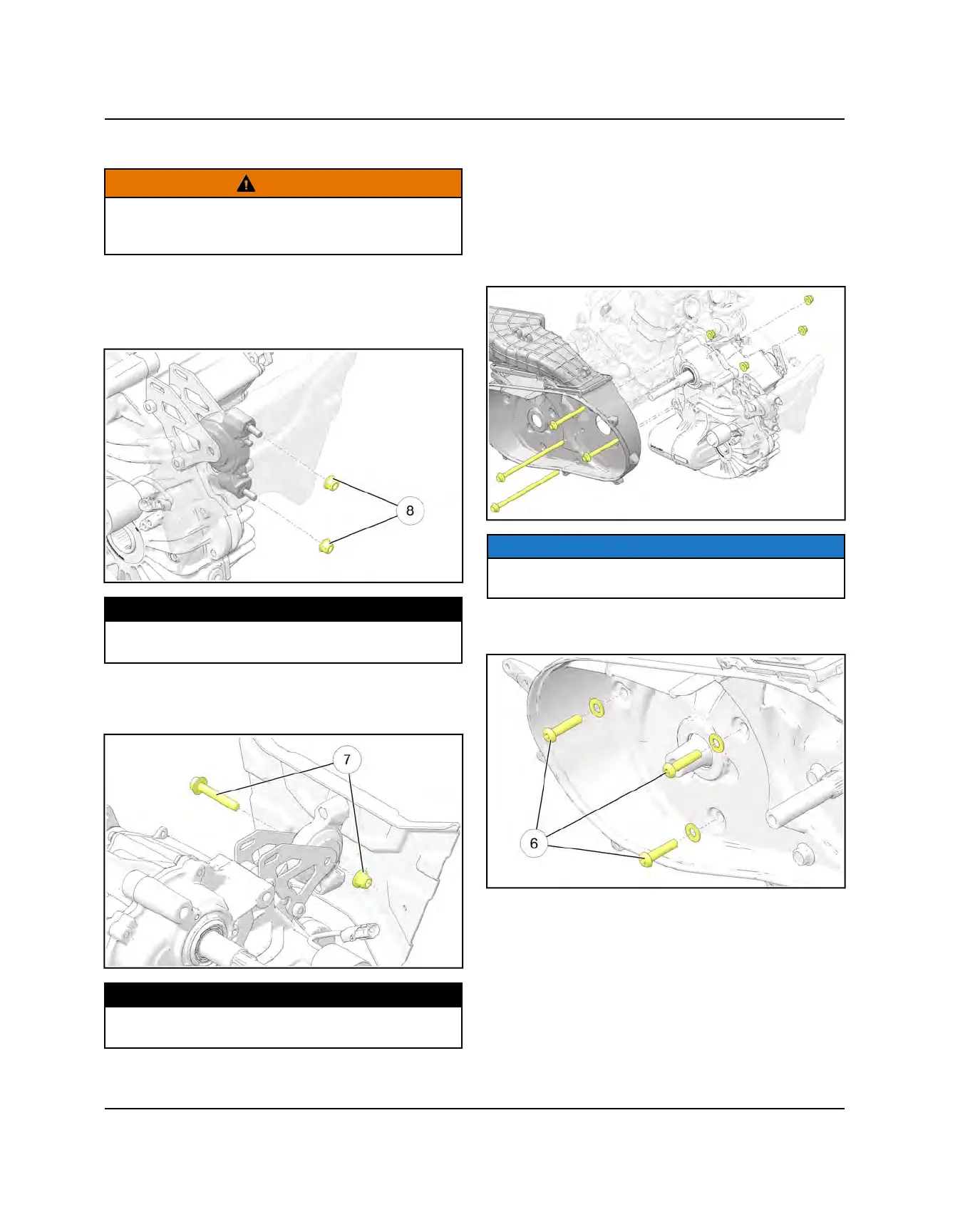

TRANSMISSION INSTALLATION
CAUTION
Serious injury may result if machine tips or falls. Be
sure machine is secure before beginning this
procedure. Always wear eye protection.
1. Install transmission through the top of the vehicle
chassis.
2. Install rear transmission mount to the frame bracket.
Torque fasteners
i
to specification.
TORQUE
Rear Transmission Mount Fasteners:
22 ft-lbs (30 Nm)
3. Install transmission isolator bolt
u
through the
transmission bracket and isolator. Torque fasteners to
specification.
TORQUE
Rear Transmission Mount Bracket Fastener:
40 ft-lbs (54 Nm)
4. Inspect seal 5416417 prior to installing PVT inner
cover. Replace seal if damaged. Install seal to the
groove in the clutch cover around crankshaft opening
and o-ring 5415647 to transmission in the groove
around the input shaft. Loosely install fasteners
retaining inner cover to the transmission and engine/
trans joint.
NOTE
Make sure O-ring seal is in place in the transmission
gland around the input shaft prior to installing the cover.
5. Loosely install the three bolts
y
with washers
retaining inner cover to engine.
TRANSMISSION
