M126/M127/M128 4-58 SM
4.2.39 RIGHT REAR FRAME ASSEMBLY REMOVAL
1. Flatbed assembly ( p.4-73 "Flatbed Removal")

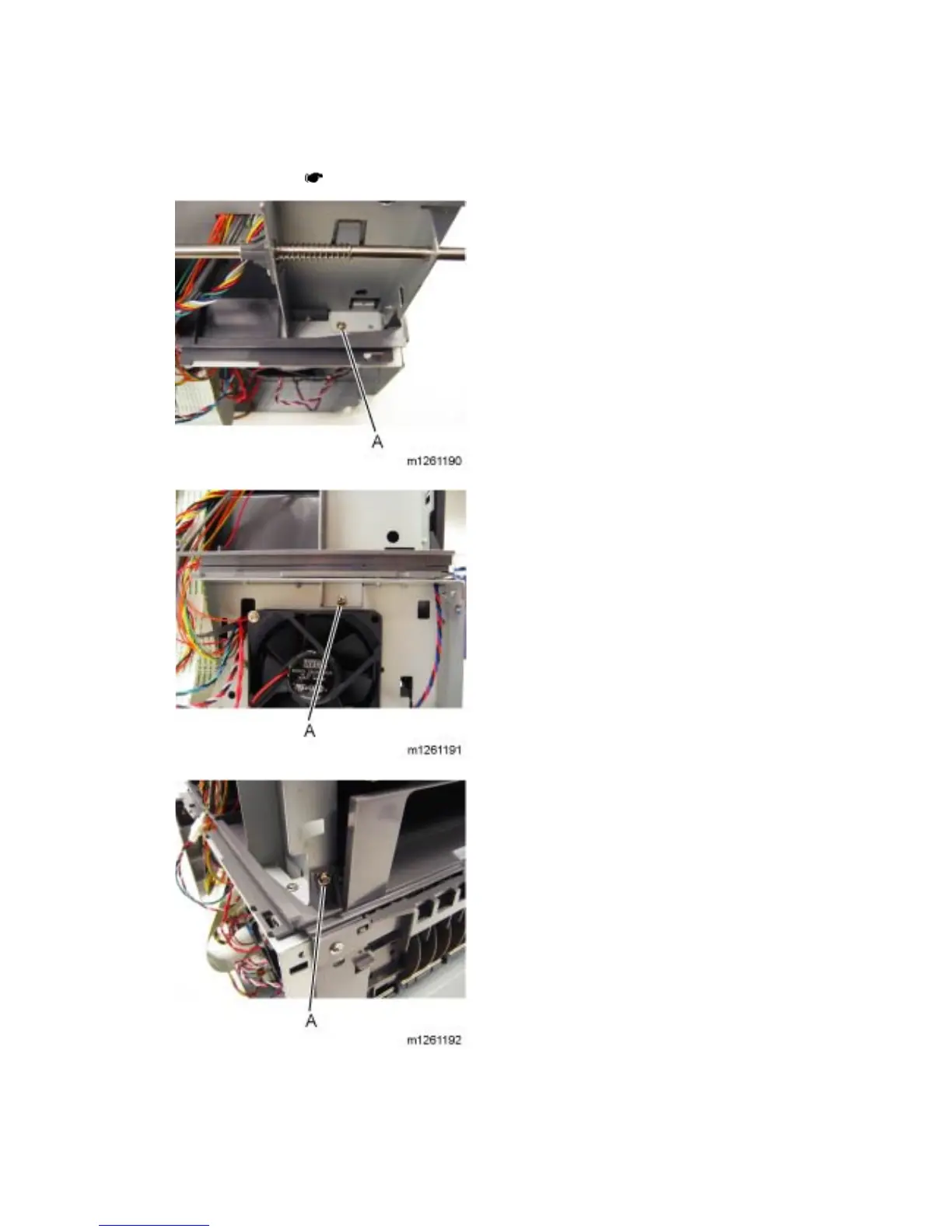

2. Remove the three screws (A) from the right rear frame assembly.
3. Carefully lift the right rear frame assembly off the print engine frame.
