M126/M127/M128 4-88 SM

4.4 OPTION BOARD INSTALLATION AND REMOVAL

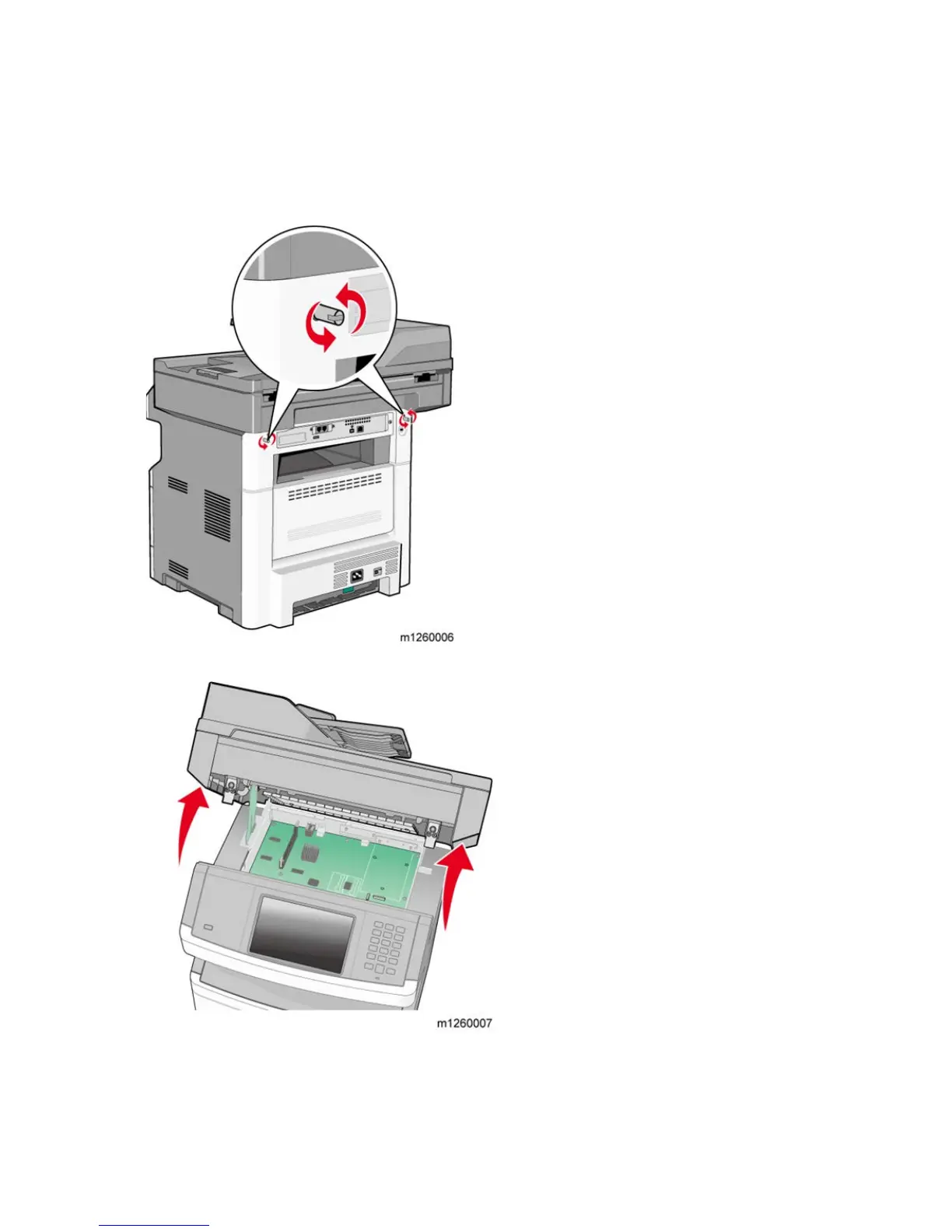

4.4.1 LIFTING THE SCANNER TO THE UP POSITION

1. Turn the two rear frame assembly locks counter-clockwise to the unlock position.

2. Lift the scanner assembly to the up position. The kickstand will lock into place.
