Ricoh M126 User Manual

Removal Procedures
SM 4-47 M126/M127/M128
Replacement
and
Adjustment

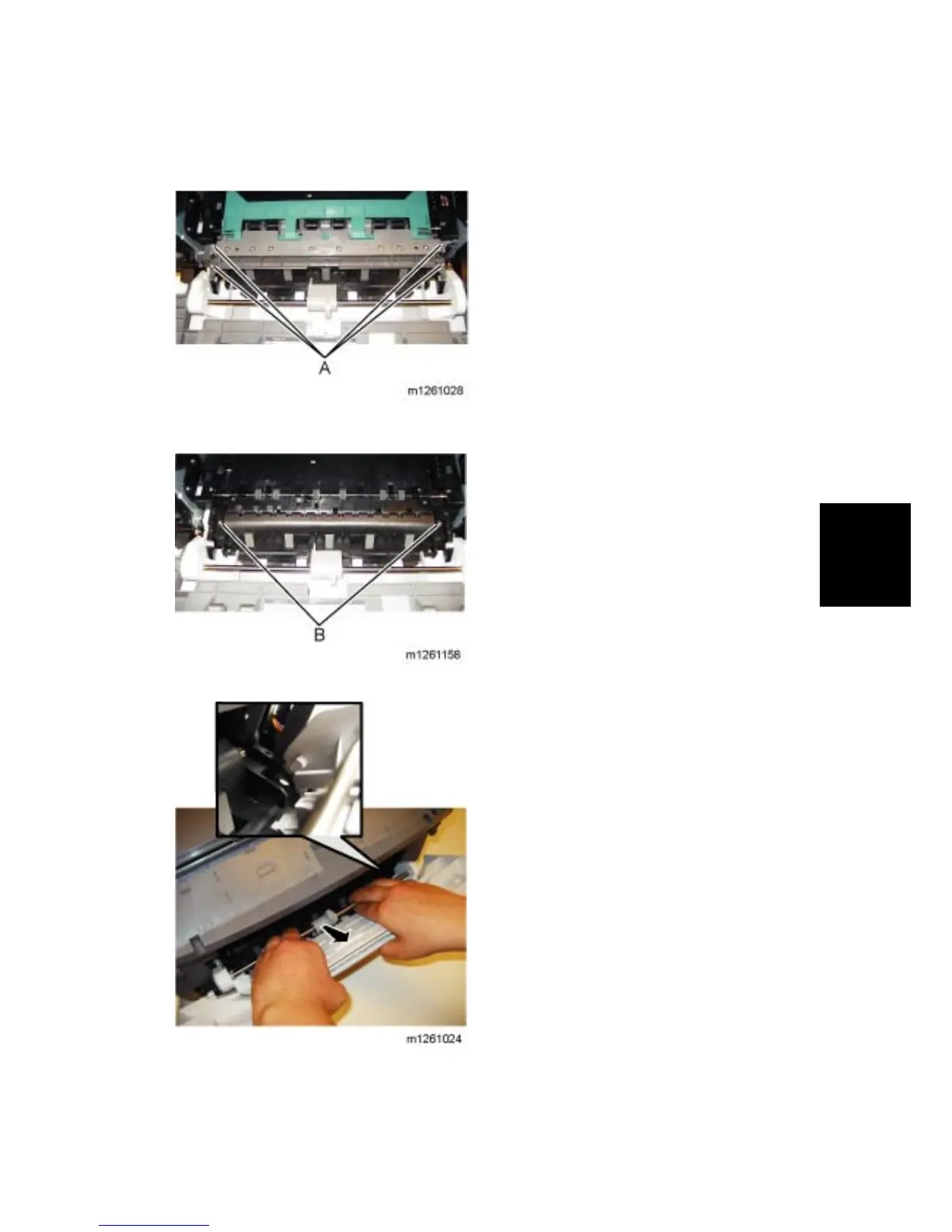

4.2.28 MULTIPURPOSE FEEDER REMOVAL
1. Open the front access door.
2. Remove the four screws (A) from the upper front guide.
3. Upper front guide.
4. Remove the two screws (B).
5. Close the front access door, and pull up on the MPF by the steel shaft until the MPF lifts from
its hinges.
