M126/M127/M128 4-64 SM
4.2.45 REAR EXIT GUIDE ASSEMBLY WITH SENSOR AND
REVERSING SOLENOID REMOVAL
1. Top cover ( p.4-68 "Top Cover Assembly Removal")
2. Disconnect the narrow media sensor cable from J35 on the engine board.
3. Remove the reversing solenoid cable from J10 on the engine board.

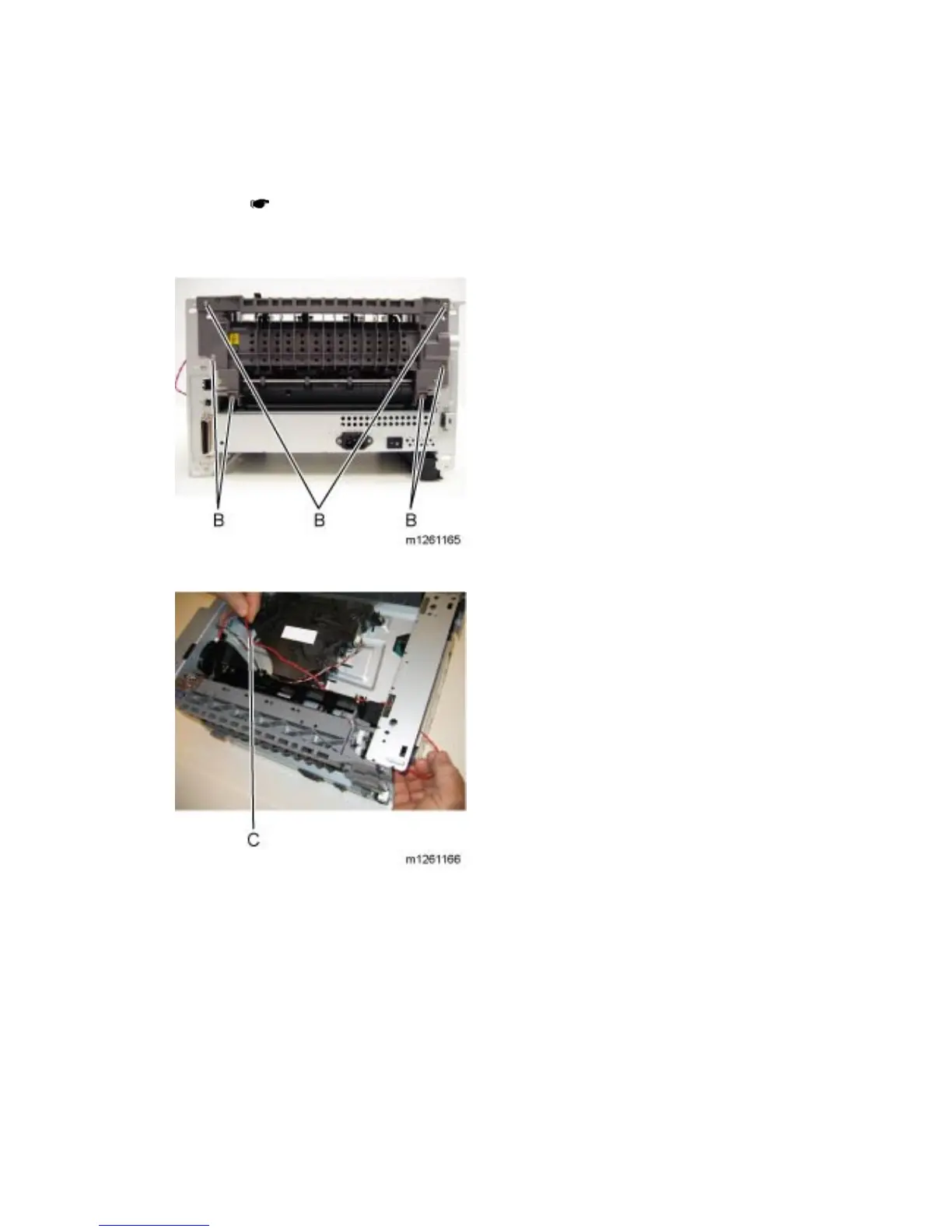

4. Remove the six screws (B) from the rear exit guide assembly.
5. Remove the solenoid cable (C) through the opening.
