M126/M127/M128 4-44 SM
4.2.27 MEDIA MANUAL INPUT SENSOR
1. Right side cover ( p.4-66 "Right Side Cover Removal")
2. Scanner assembly.
3. Place the machine on its side.
 Be careful to not mar the finish of the printer.

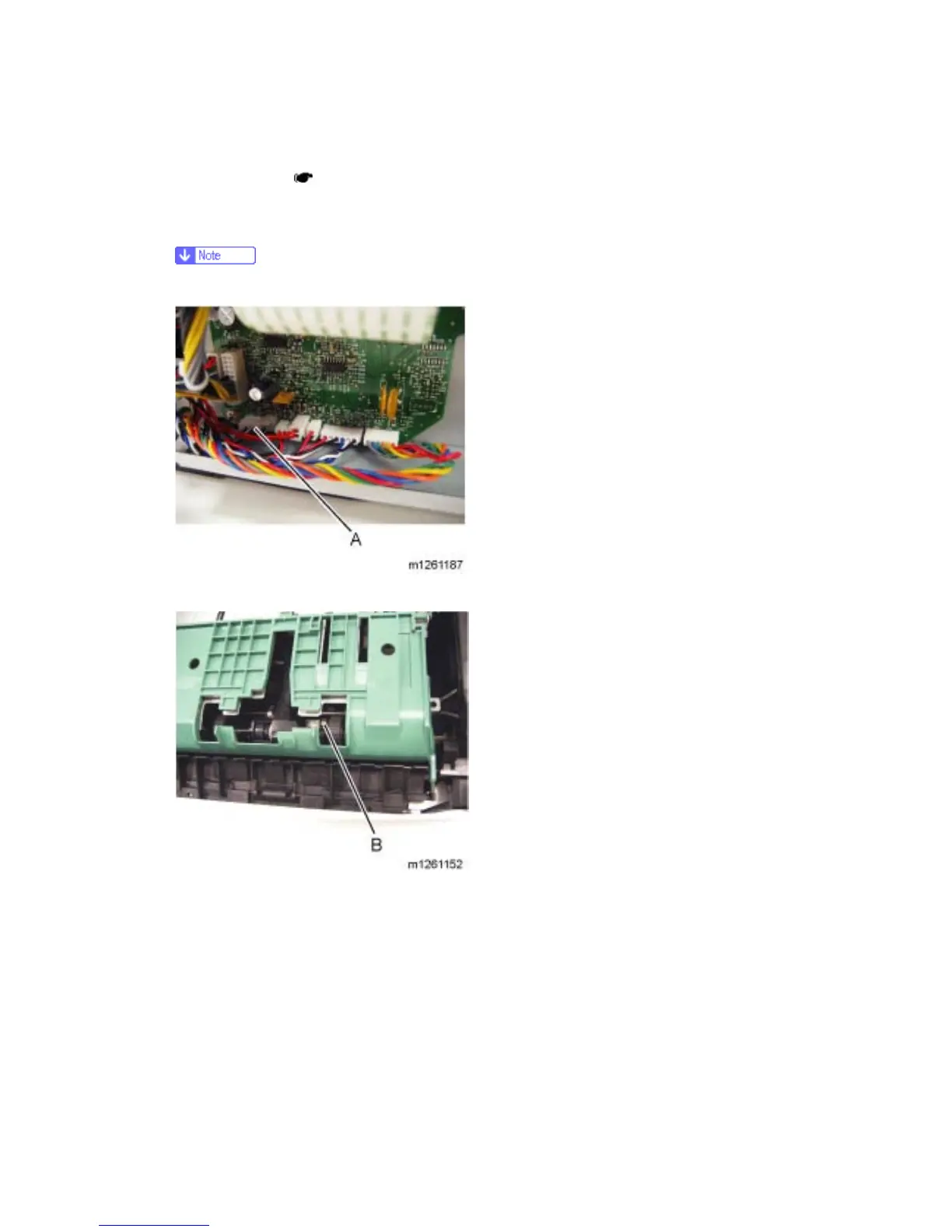

4. Disconnect the sensor cable (A) from J23 on the engine board.
5. Remove the screw (B) holding the sensor.
6. Free the cable from its retainers, and pull it through the opening toward the sensor mount.
Re-installation note:
 Prop open the duplex door, and insert the hook end of the spring hook through the frame
opening (C) from the controller board side. Extend the hook until the sensor connector can be
hooked.
To Next Page
