M126/M127/M128 4-42 SM
4.2.26 MEDIA FEED CLUTCH WITH CABLE REMOVAL
1. Main motor gear drive ( p.4-33 "Main Motor Gear Drive Removal")
2. Duplex (
p.4-16 "Duplex Removal")

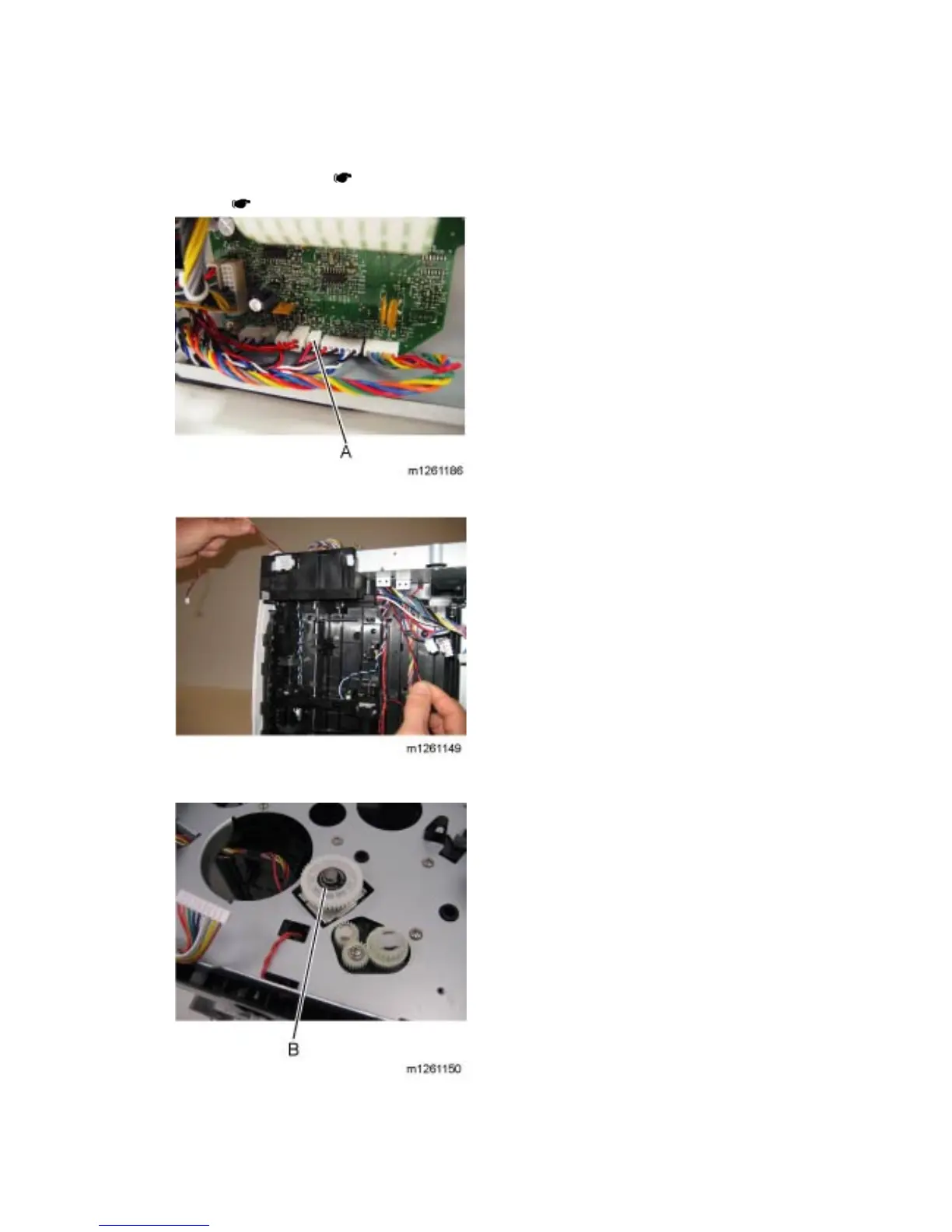

3. Disconnect the media feed clutch cable (A) from J34 on the engine board.
4. Unroute the cable from the bottom of the printer.
5. Remove the e-clip (B)
