M126/M127/M128 4-20 SM

4.2.14 FAN REMOVAL

1. Right side cover ( p.4-66 "Right Side Cover Removal")

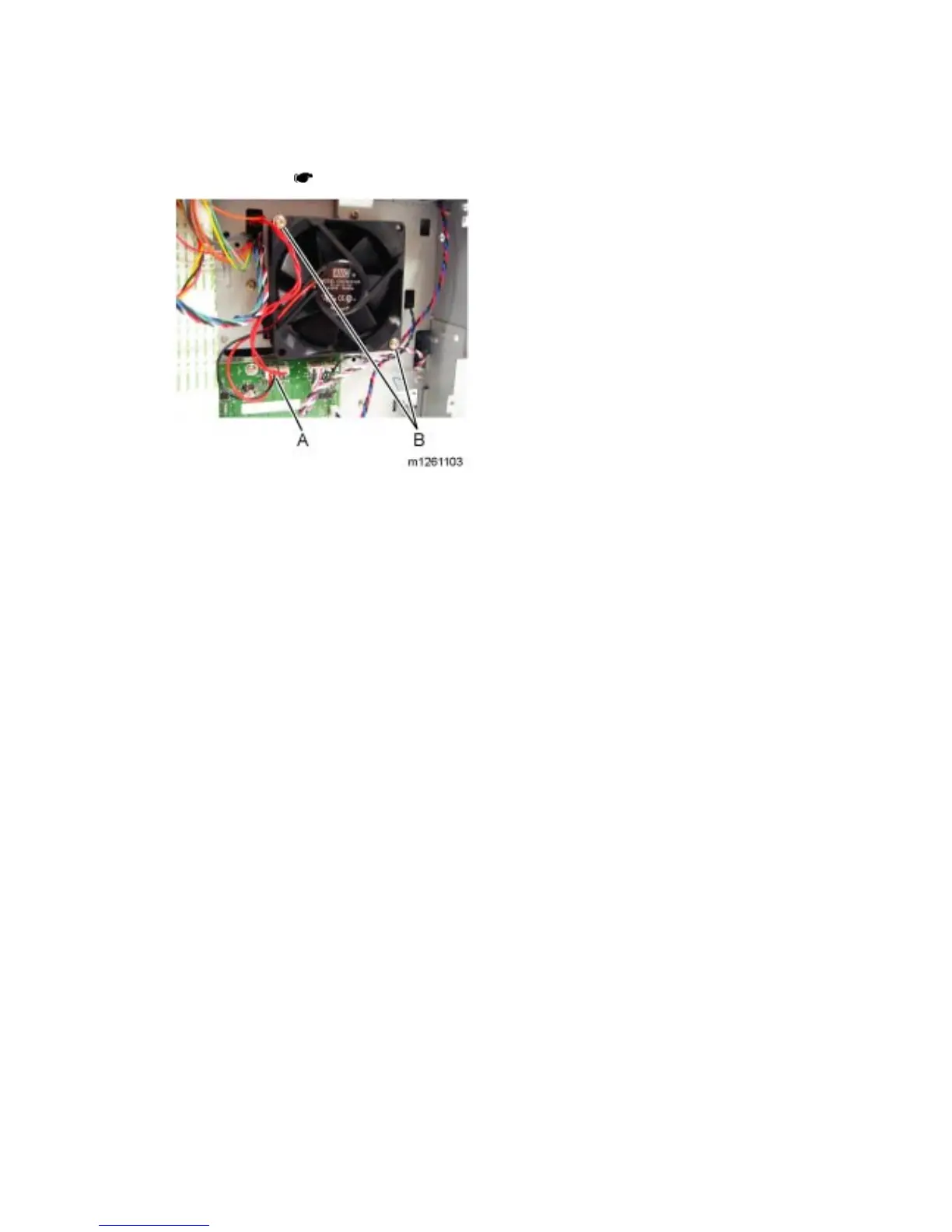

2. Disconnect the cable (A) from the engine board, and remove the two screws (B) holding the

fan to the right side frame.

3. Take out the fan.
