Removal Procedures
SM 4-63 M126/M127/M128
Replacement
and
Adjustment
4.2.44 REAR DOOR AND LOWER REAR COVER REMOVAL
1. Mid rear cover ( p.4-62 "Mid rear Cover Removal")
2. Open the rear door.

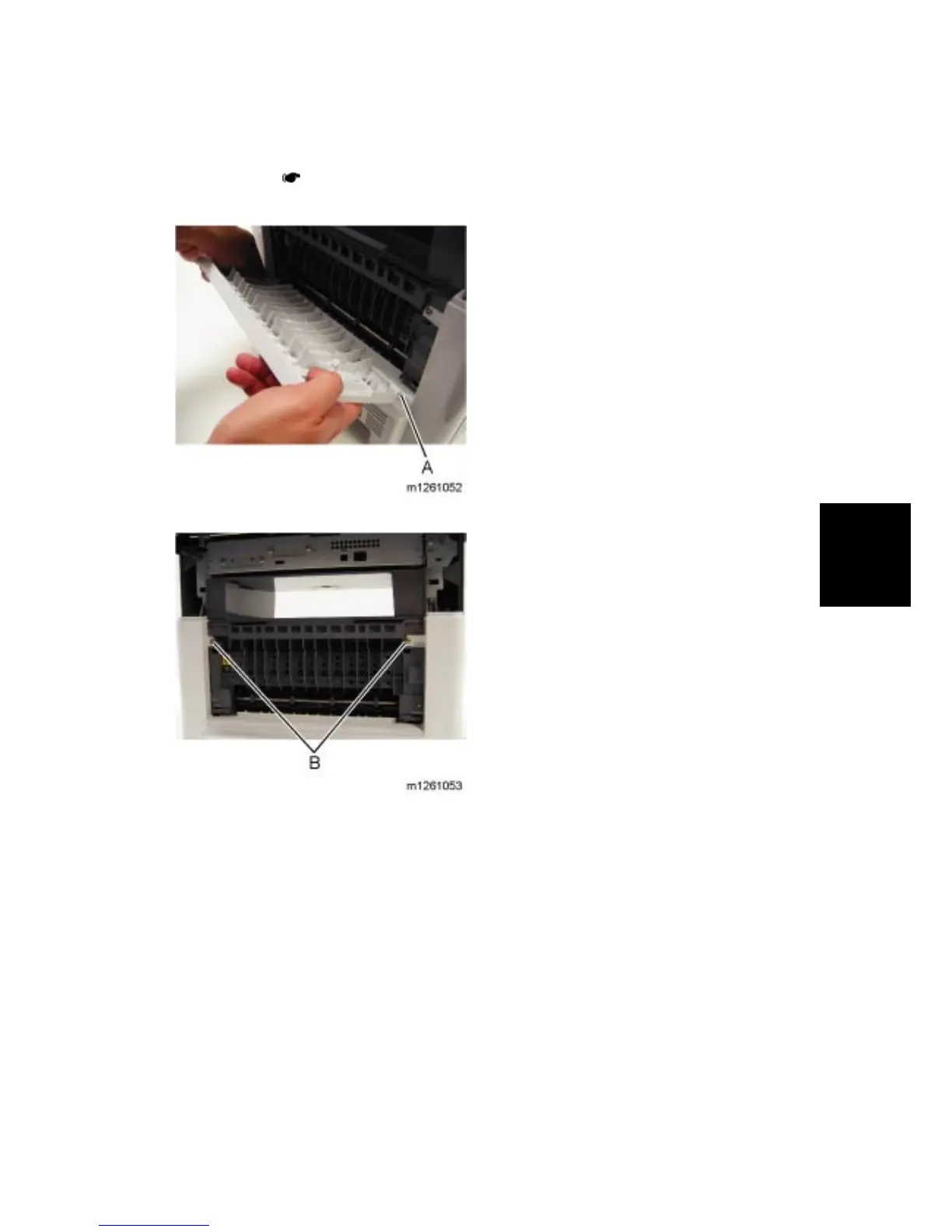

3. Pull the rear door up at an angle, and disconnect the door from the notch (A).
4. Remove the two screws (B) from the top of the rear cover.
5. Tilt the lower rear cover and remove it.
