M126/M127/M128 4-84 SM

4.3.7 OUTPUT BIN LED AND LENS REMOVAL

1. Disconnect the output LED cable from the controller board.

2. Controller board cage ( p.4-12 "Controller Board Cage").

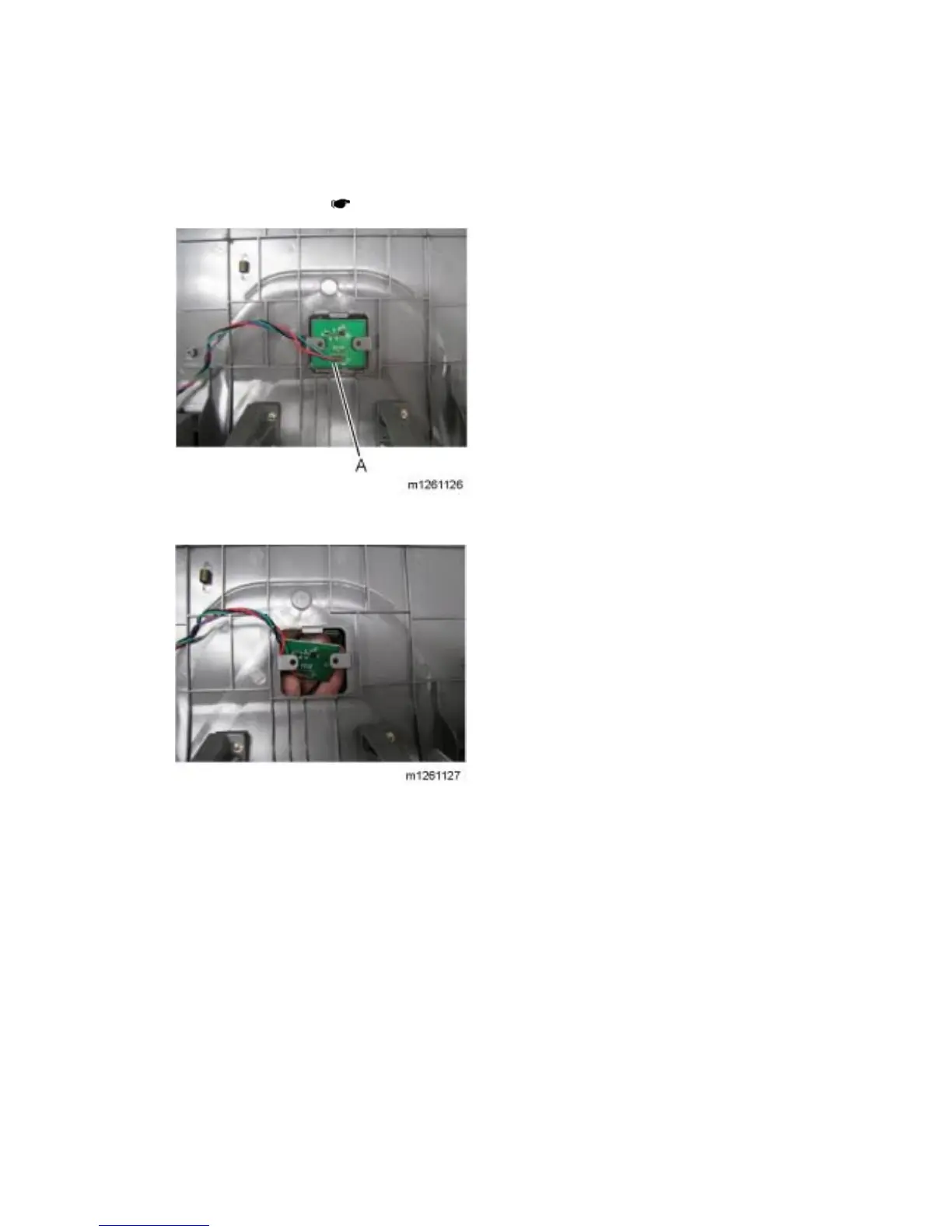

3. Press the tab (A) securing the lens to the tub assembly.

4. Pull down on the lens and LED and remove it from the tub.
