Removal Procedures
SM 4-25 M126/M127/M128
Replacement
and
Adjustment

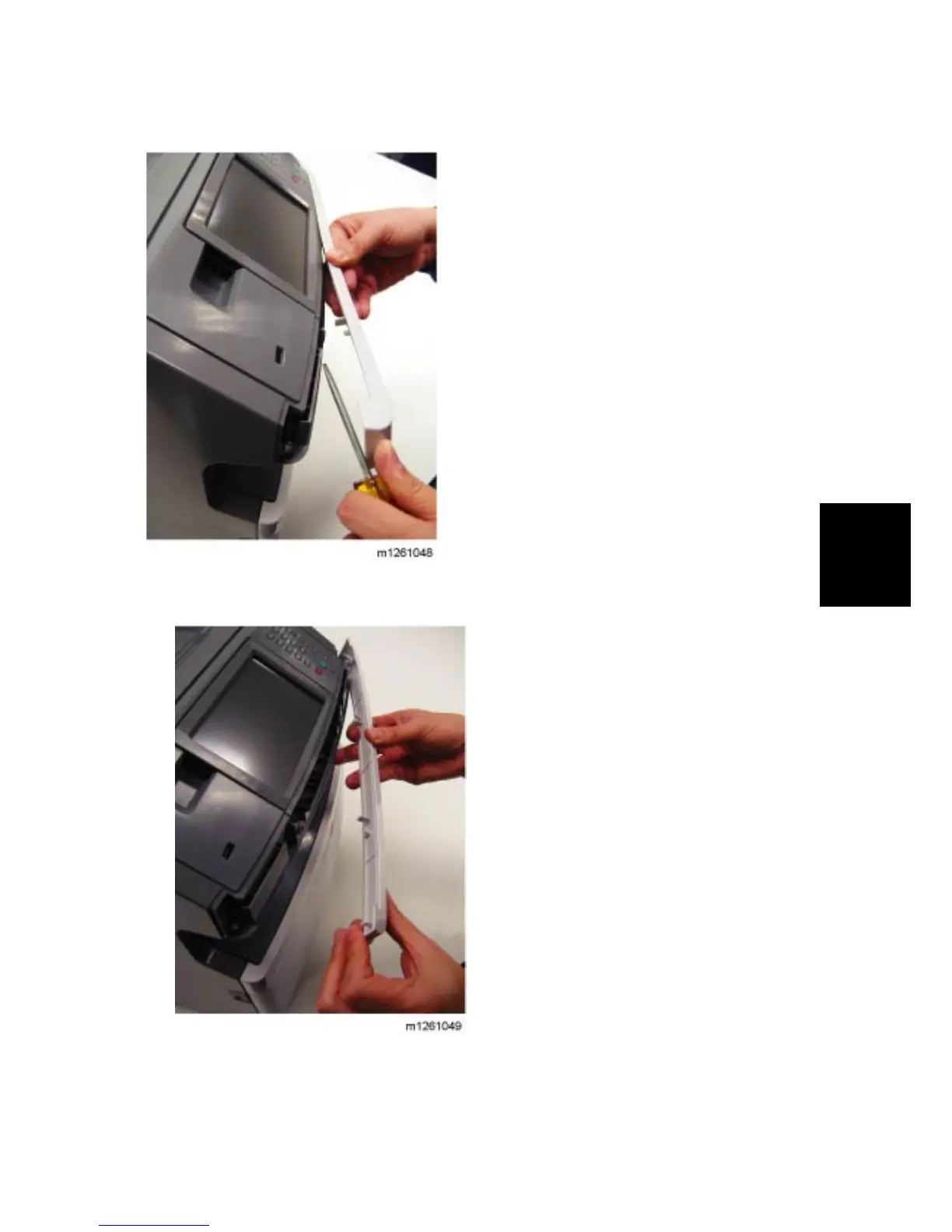

4.2.17 SCANNER FRONT COVER REMOVAL
1. Use a flatblade screwdriver to pry the scanner front cover away from the side cover. Be
careful to avoid marring the finish.
2. Carefully pull the scanner front cover away from the tub assembly.
