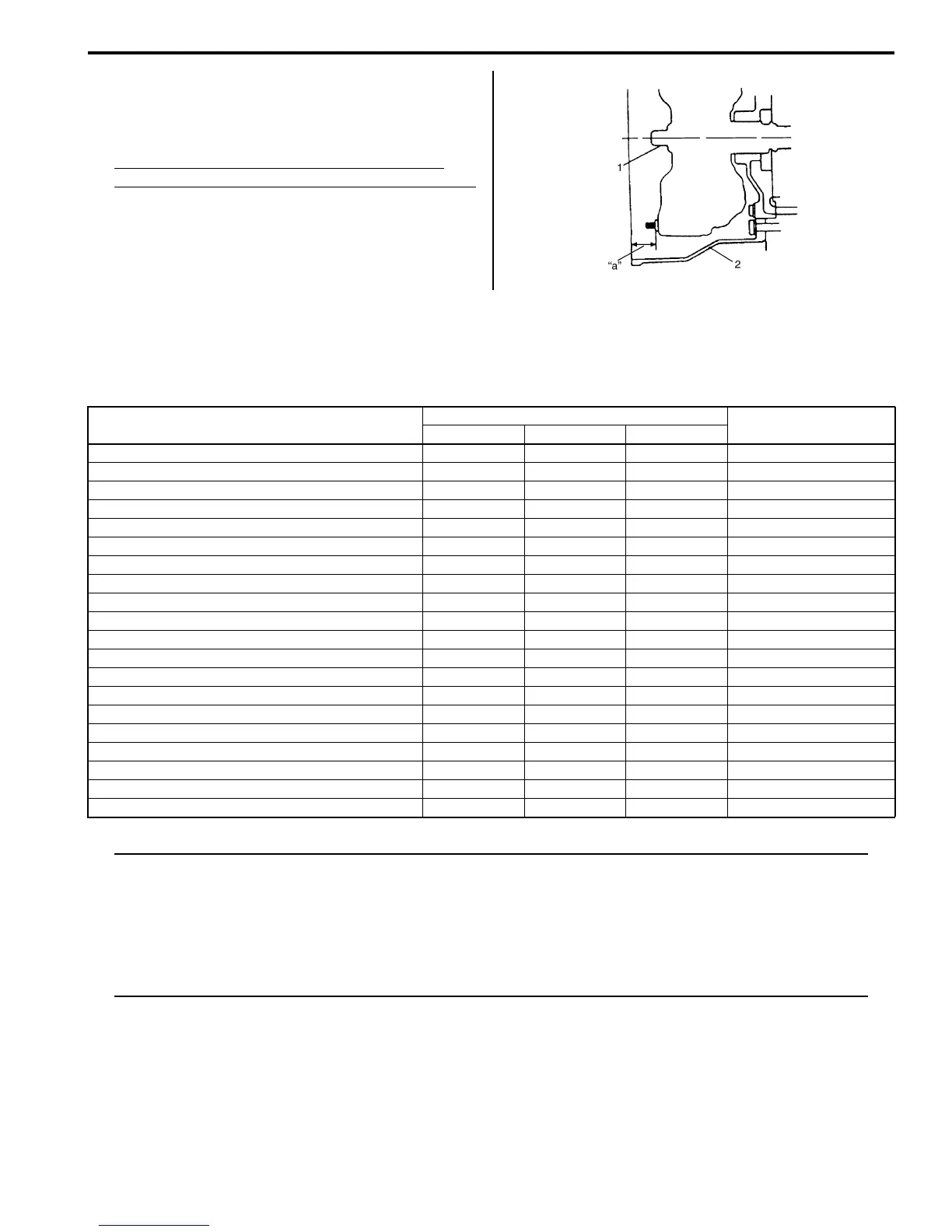

Automatic Transmission/Transaxle: 5A-135
51) Confirm that torque converter is fully fitted in
transmission. Confirmation can be done by
measuring dimension between end surface of
housing case (2) and drive plate installation seat.
Standard dimension between end surface of
case housing and drive plate installation seat “a”
17.4 mm (0.69 in.)
52) Check that torque converter turns smoothly and
apply grease to center piece (1) of torque converter.
Specifications
Tightening Torque Specifications
S5JB0A5107001
NOTE
The specified tightening torque is also described in the following.
“Manual Selector Assembly Components: ”
“Select Cable Component: ”
“Oil Cooler Hose and Pipe Components: ”
“Automatic Transmission Unit Components: ”
“Oil Pump Components: ”
“Valve Body Assembly Components: ”
Reference:
For the tightening torque of fastener not specified in this section, refer to “Fastener Information: in Section 0A”.
IYSQ01510279-01
Fastening part
Tightening torque
Note
N⋅mkgf-mlb-ft
Fluid pressure check hole bolt 8 0.8 6.0 )
A/T fluid drain plug 20 2.0 14.5 )
Manual selector assembly mounting bolt 18 1.8 13.0 )
Manual select cable nut 13 1.3 9.5 )
Manual shift shaft nut 12.5 1.25 9.0 ) / )
Transmission range sensor bolt 5.3 0.53 4.0 ) / )
Manual select lever nut 12.5 1.25 9.0 )
Input shaft speed sensor bolt 7 0.7 5.0 )
Output shaft speed sensor bolt 7 0.7 5.0 )
Oil pump bolt 7.5 0.75 5.5 )
Center support bolt 26 2.6 19.0 )
Torque converter housing bolt 35 3.5 25.5 )
Torque converter housing bolt 58 5.8 42.0 )
Oil pump bolt 22 2.2 16.0 )
Parking pawl bracket bolt 7.4 0.74 5.5 )
Valve body bolt 10 1.0 7.5 )
Transmission wire connector bolt 16 1.6 11.5 )
Oil strainer bolt 5.5 0.55 4.0 )
Transmission oil pan bolt 4.5 0.45 3.5 )
Adapter case bolt 31 3.1 30.0 )
To Next Page
