9F-11 Security and Locks:

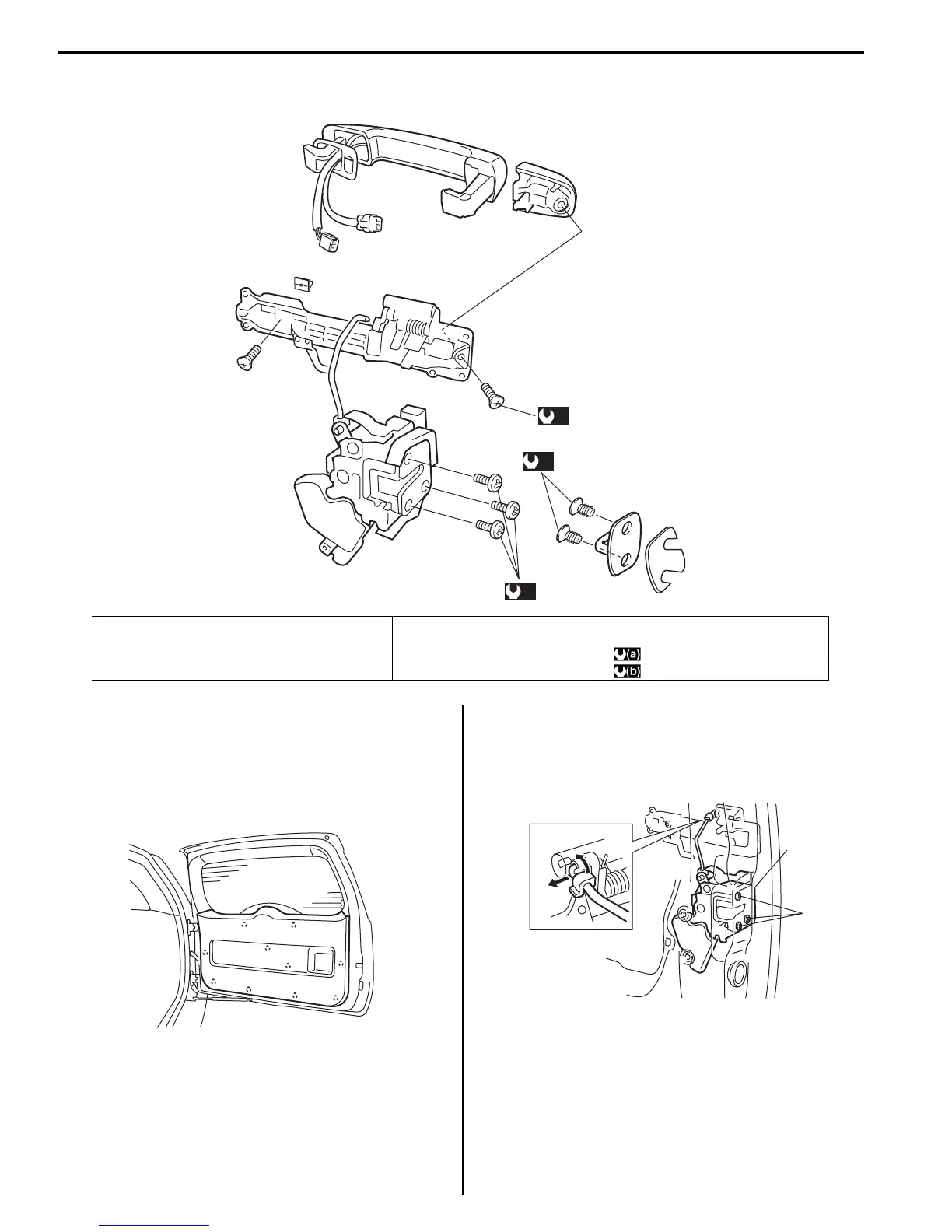

Rear End Door Lock Assembly Components
S5JB0A9606010
Rear End Door Lock Assembly Removal and
Installation
S5JB0A9606011
Removal
1) Remove door trim (1) from rear end door panel (2).
2) Disconnect door lock motor lead wire and door
opening control rod.
3) Loosen door latch bolts (1) and remove door latch
assembly (2).
(a)
(a)
(b)
I5JB0A960015-01
1. Rear end door latch assembly
(rear end door switch is built in this assembly)
4. Shim 7. Rear end door request switch
2. Rear end door opener switch 5. Door handle : 10 N⋅m (1.0 kgf-m, 7.5 lb-ft)
3. Latch striker 6. Emergency lever : 23 N⋅m (2.3 kgf-m, 17.0 lb-ft)
I5JB0A960016-01
2
1
I5JB0A960017-01
