Fuel System: 1G-21

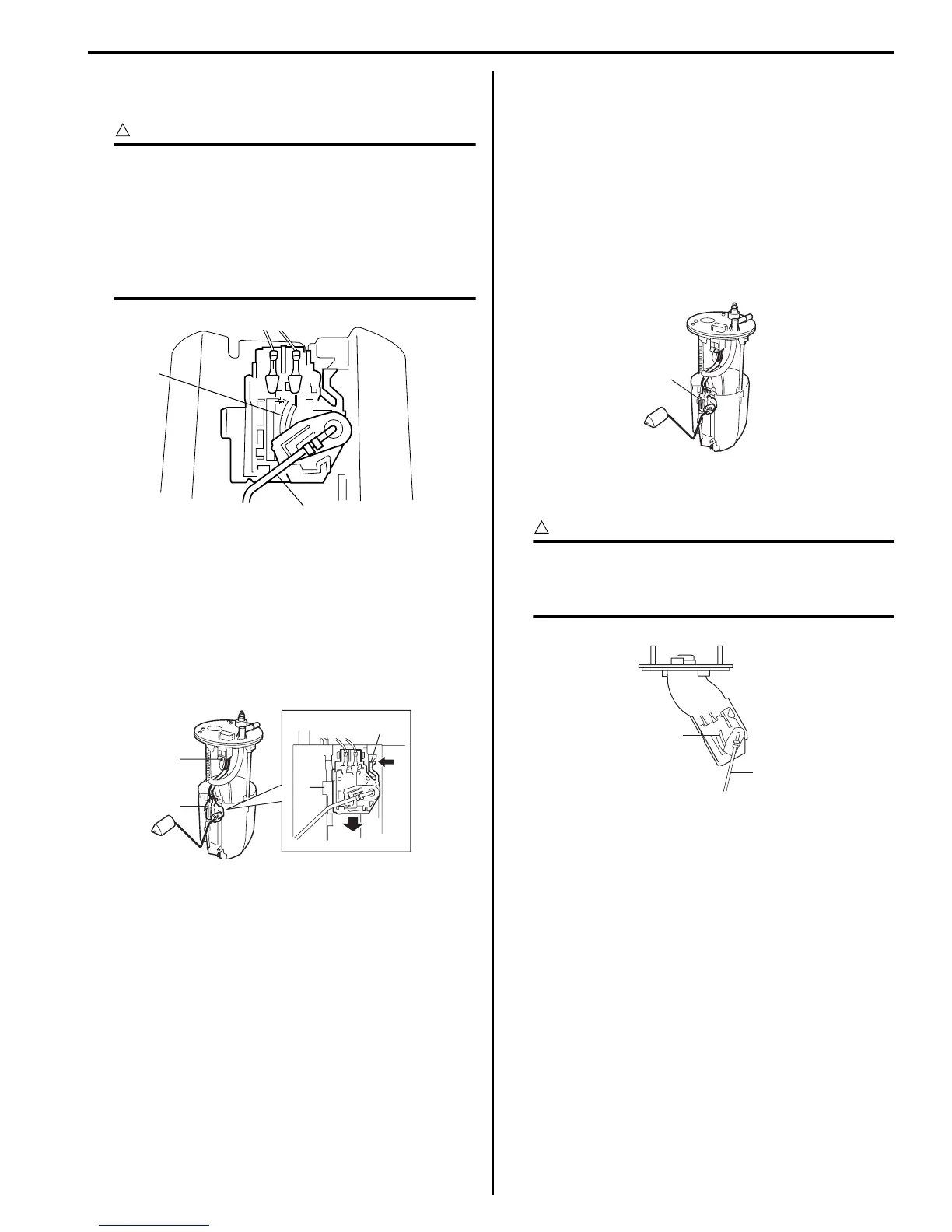

Main Fuel Level Sensor Removal and
Installation
S5JB0A1706022
CAUTION
!
• Do not touch resister plate (1) and deform
arm (2). It may cause main fuel level sensor
to fail.
• Be very careful not to cause damage to
fuel tube installed section (sealed section
in bore). If it be damaged, replace it with
new one, or fuel will leak from the part.
Removal
1) Remove fuel pump assembly from fuel tank referring
to “Fuel Pump Assembly Removal and Installation: ”.
2) Disconnect main fuel level sensor connector (3).
3) With pressing snap-fit part (2), remove main fuel
level sensor (1) by sliding it in the arrow direction as
shown in figure.
Installation
Reverse removal procedure for installation.
Fuel Pump Inspection
S5JB0A1706021
• Check fuel pump assembly for damage.
• Check fuel suction filter for evidence of dirt and
contamination.
If present, replace or clean and check for presence of
dirt in fuel tank.
• For electrical circuit, refer to “Fuel Pressure Check: in
Section 1A”.
• For inspection of main fuel level sensor (1), refer to
“Fuel Level Sensor Inspection: in Section 9C”.
Sub Fuel Level Sensor Removal and Installation
S5JB0A1706026
CAUTION
!
• Do not touch resister plate (1) and deform
arm (2). It may cause sub fuel level sensor
to fail.
1
2
I4RS0A170016-01
1
3
1
2
I5JB0A171026-01
1
I5JB0A171027-01
2
1
I5JB0A171028-01
