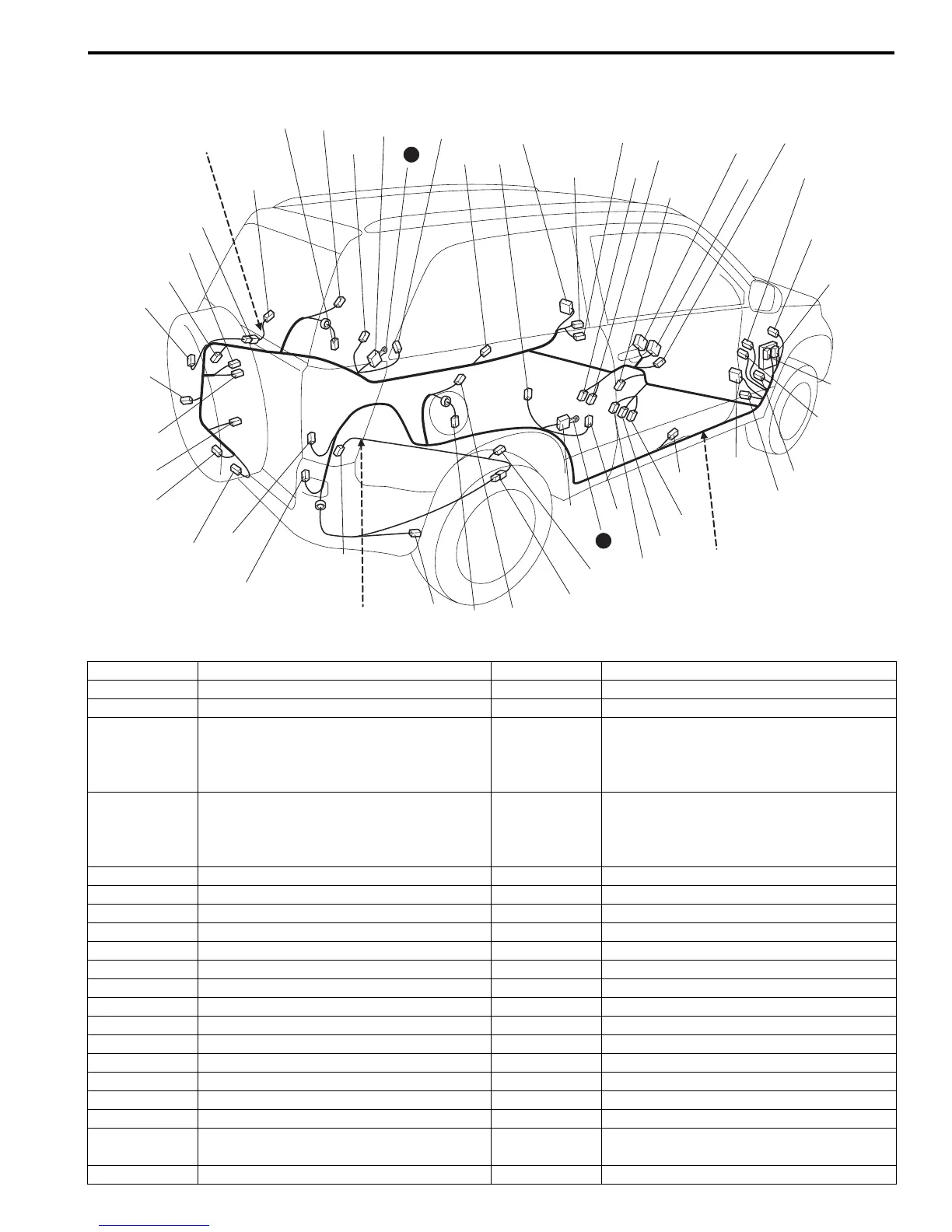

Wiring Systems: 9A-34
L: Floor harness, Luggage compartment light wire, Rear height sensor wire / R: Fuel pump wire (RHD, 3dr)
L: Floor harness
{
L15
R01
{
L19
L68
L23
L12
L44
L33
L06
L05
L11
L25
L04
L32
L59
L30
L36
L41 L64
L69
L47
L48
L26
L43
L54
L53
L38
L35
L34
L14
R02
R03
L20
L52
Fuel pomp wire
L31
(TO J09)
L42
(TO O01)
L28
(TO G72)
L29
(TO G55)
L08
(TO G07)
L09
(TO G08)
L01
(TO G80)
L07
(TO J01)
L03
(TO E79)
L27
(TO G72)
Luggage compartment
light wire
L
L57
L56
L63 L18
L10
L22
18
19
I5JB0A910917-02
No./Color Connective position No./Color Connective position
L01/N Main harness (To E80) L30/YEL Side air-bag inflator (L)
L03/YEL Main harness (To E79) L31/GRY Front door wire (Passenger side) (To J09)
L04/BLK Turn signal relay
L32/YEL (With
side A/B,
Curtain A/B
system)
A/B SDM
L05/N J/B
L33/YEL (With
side A/B,
Curtain A/B
system)
A/B SDM
L06/N J/B L34/N Front door switch (Passenger side)
L07/GRY Front door wire (Driver side) (To J01) L35/YEL Side air- bag sensor (L)
L08/N Instrument panel harness (To G07) L36/BLK Pretensioner (Passenger side)
L09/BLU Instrument panel harness (To G08) L38/GRY Wheel speed sensor (RL)
L10/N Front door switch (Driver side) L41/BLK Side curtain air-bag (Passenger side)
L11/YEL Side air-bag sensor (R) L42/N Rear end door wire (To O01)
L12/BLK Pretensioner (Driver side) L43/N Rear combination lamp (L)
L14/N Wheel speed sensor (RR) L44/N Keyless entry receiver
L15/GRY Fuel pump wire (To R01) L47/N ACC socket #1
L18/BLK Side curtain air-bag (Driver side) L48/N ACC socket #1
L19/N Luggage compartment light wire (To L68) L52/N Licence plate light #1
L20/N Rear combination lamp (R) L53/N Licence plate light #2
L22/N J/C L54/N Rear end door switch
L23/N J/C L56/N Seat belt switch (Without seat heater)
L25/YEL Side air-bag inflator (R) L57/N
Seat heater & Seat belt switch (Driver
side)
L26/N Trailer L59/N Seat heater (Passenger side)
To Next Page
