2B-4 Front Suspension:
Front Strut Assembly Components
S5JB0A2206002
7
6
5
4
14
2
1
13
3
12
(a)
(a)
8
(b)
9
(c)
11
10
I5JB0A220004-01

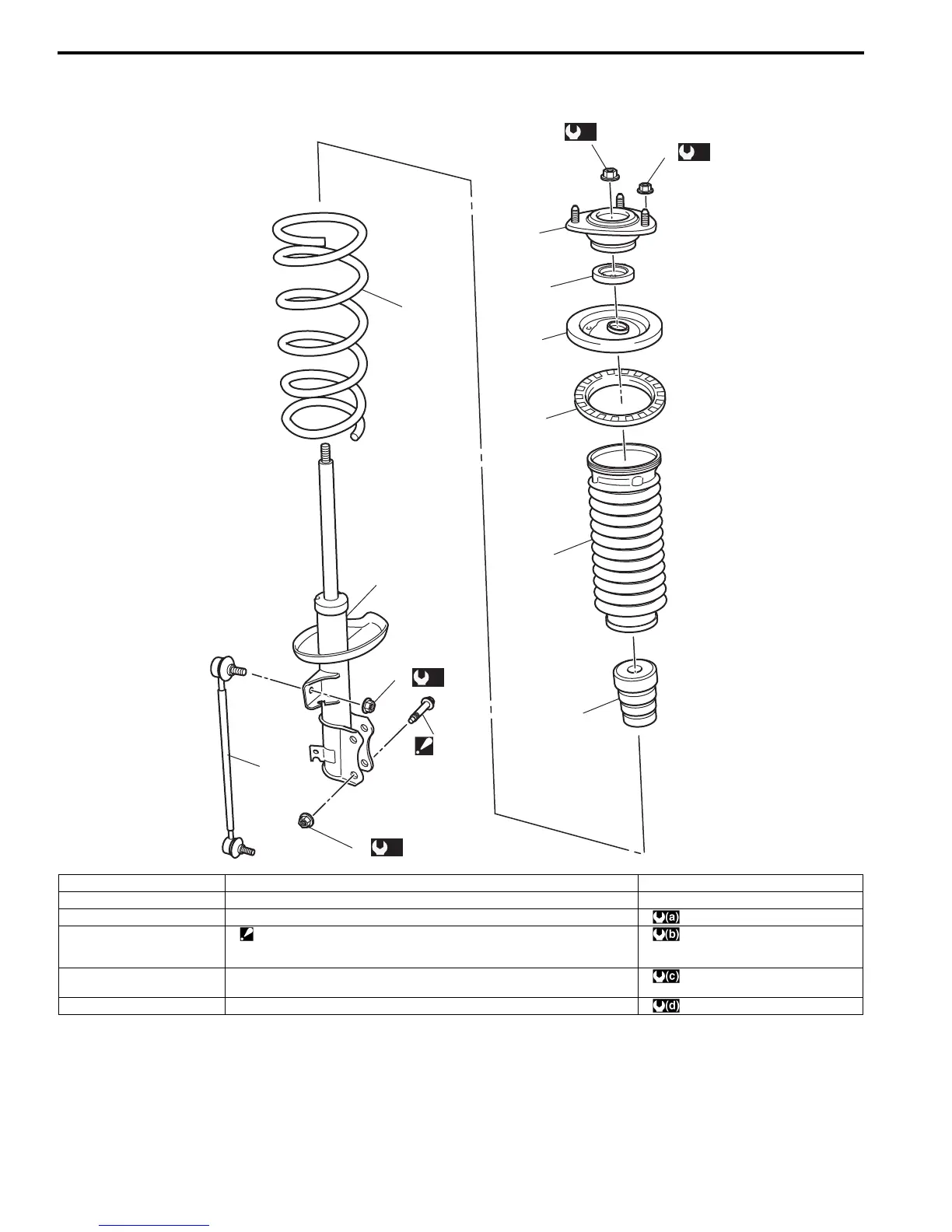

1. Strut assembly 7. Strut support 13. Stabilizer joint
2. Coil spring 8. Strut support nut 14. Strut dust cover
3. Bump stopper 9. Strut nut : 50 N⋅m (5.0 kgf-m, 36.5 lb-ft)
4. Coil spring seat 10. Strut bracket bolt
: Insert from vehicle front side.
: If reuse bolt, apply engine oil to thread, bearing and trunk surface.
: 90 N⋅m (9.0 kgf-m, 65.0 lb-ft)
5. Coil spring upper seat 11. Strut bracket nut
: If reuse nut, apply engine oil to thread and bearing.
: 135 N⋅m (13.5 kgf-m, 98.0 lb-ft)
6. Strut bearing 12. Stabilizer joint nut : 60 N⋅m (6.0 kgf-m, 43.5 lb-ft)
