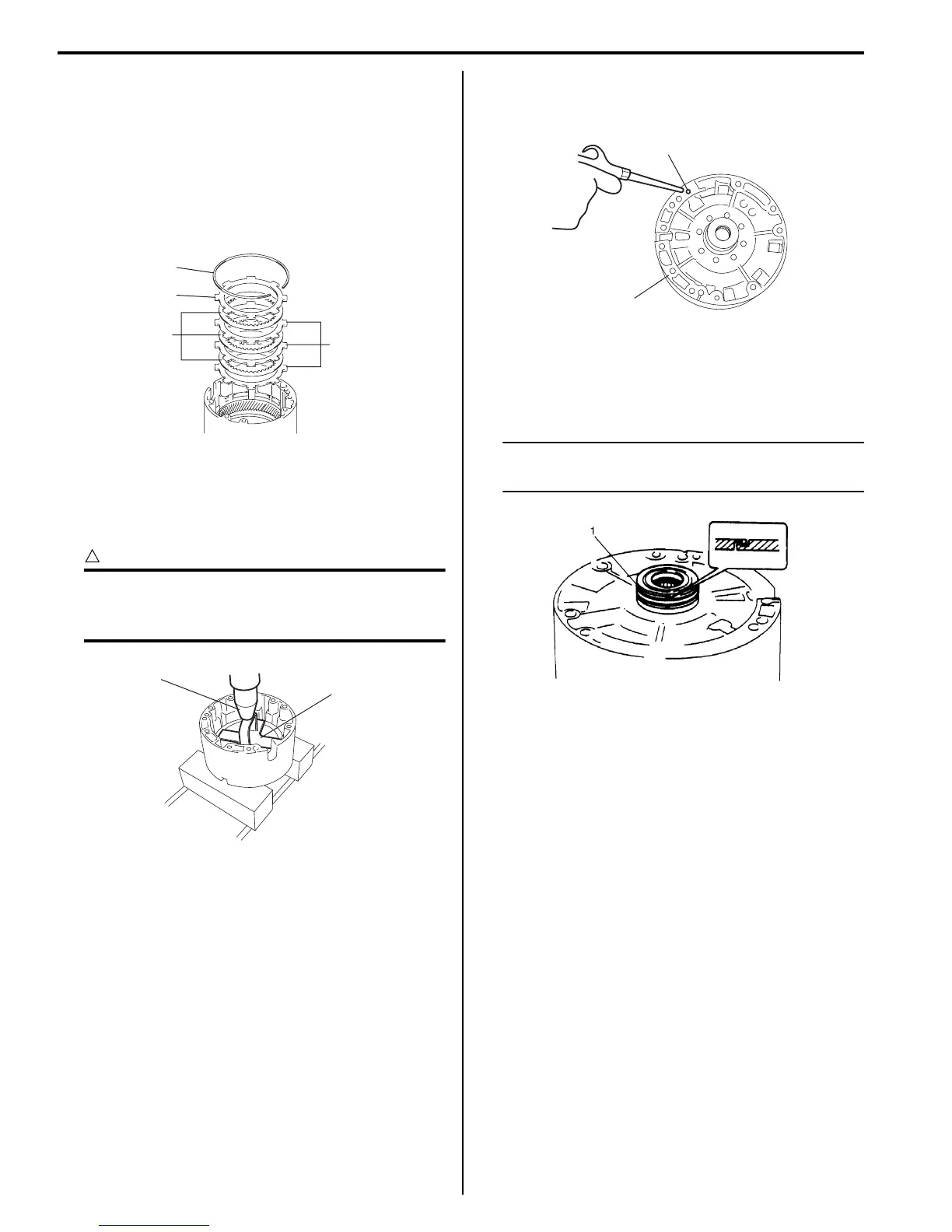

5A-110 Automatic Transmission/Transaxle:
Overdrive (Case Side) Disassembly and
Assembly
S5JB0A5106075
Disassembly
1) Remove retaining ring (1), brake backing plate (2),
brake disc (3) and brake plate (4) in that order. Then
remove planetary ring gear, thrust bearing race and
thrust bearing.
2) Remove retaining ring and piston return spring using
special tool and press (1).
Special tool
(A): 09926–96510
CAUTION
!
Be careful when applying pressure, for
overpressure will cause plate section of
piston return spring to deform.
3) Apply compressed air (400 – 800 kPa, 4 – 8 kg/cm
2
,
57 – 113 psi) to oil hole (1) in O/D case (2) and
remove brake piston.
4) Remove brake piston inner ring and brake piston
outer ring from brake piston.
5) Unsnap seal ring (1).
6) Remove 2 seal rings (1).
NOTE
Be careful not to open seal ring more than
necessary.
1
2
3
4
I5JB0A510104-01
1
(A)
I5JB0A510105-01
1
2
I5JB0A510106-01
IYSQ01510138-01
