1A-195 Engine General Information and Diagnosis:
DTC P2122: Pedal Position Sensor (Main) Circuit Low Input
S5JB0A1104082

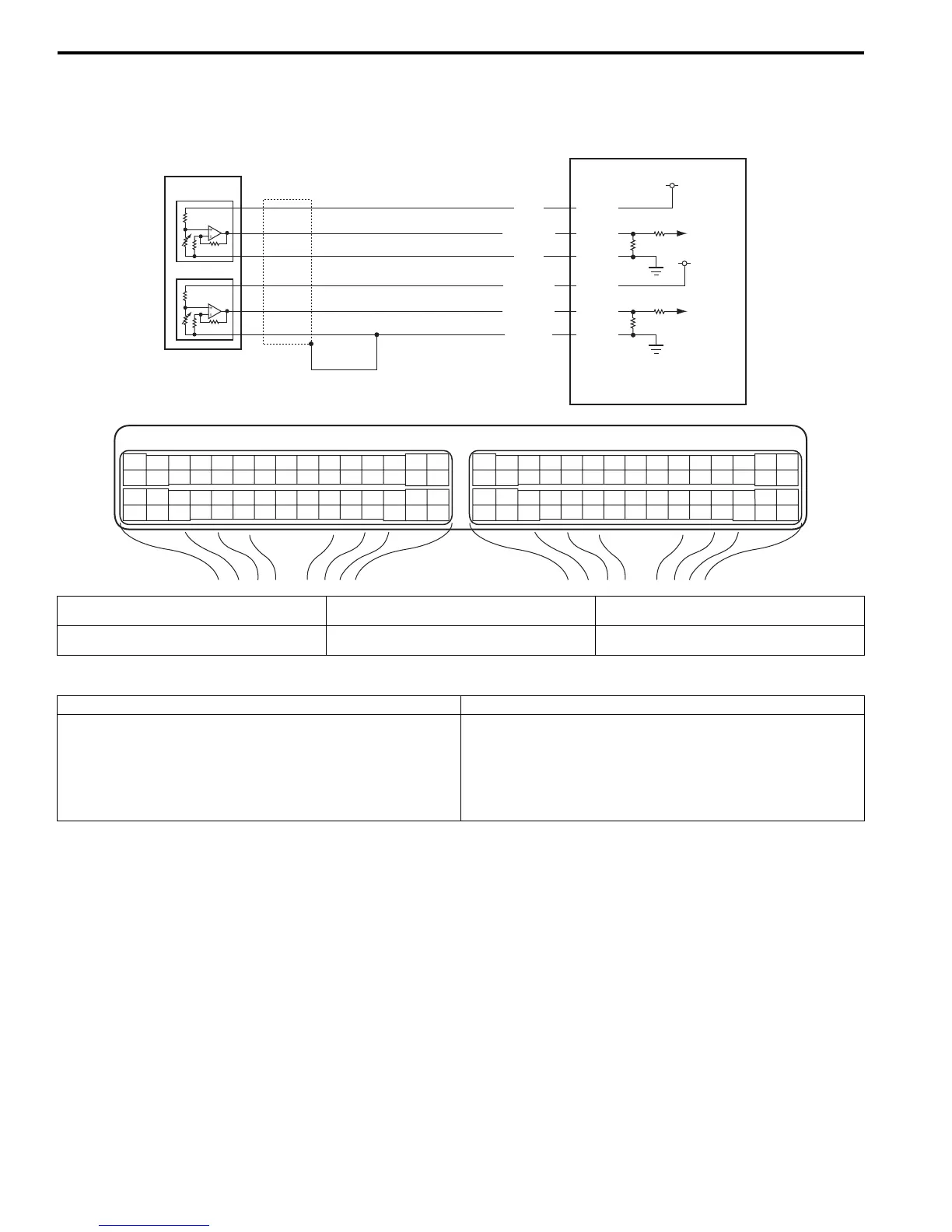

Wiring Diagram
DTC Detecting Condition and Trouble Area
DTC Confirmation Procedure
1) With ignition switch turned OFF, connect scan tool.
2) Turn ON ignition switch and clear DTC using scan tool.
3) Keep the accelerator pedal at idle position for 2 seconds.
4) Keep the accelerator pedal at fully depressed position for 2 seconds.
5) Repeat Step 3) and 4) for 3 times.
6) Check DTC.
E23 C37
34
1819
5671011
1720
47 46495051
2122
52
1625
9
24
14
29
5557 54 53
59
60 58
2
262728
15
30
56 48
32 31343536374042 39 38
44
45 43 41 33
11213
23
834
1819
5671011
1720
47 46495051
2122
52
1625
9
24
14
29
5557 54 53
59
60 58
2
262728
15
30
56 48
32 31343536374042 39 38
44
45 43 41 33
11213
23
8
E23-56
E23-55
E23-54
E23-53
E23-52
E23-51
5 V
5 V
WHT
WHT/BLU
ORN
ORN/BLU
BLU/GRN
BLU/YEL
1
1-1
3
2
1-2
I5JB0A110070-01
1. Accelerator pedal position (APP) sensor
assembly
1-2. Accelerator pedal position (APP) sensor (sub) 3. Ground of accelerator pedal position (APP)
sensor for shield wire
1-1. Accelerator pedal position (APP) sensor
(main)
2. ECM
DTC detecting condition Trouble area
Output voltage of accelerator pedal position sensor (main)
is less than specified value for 0.5 seconds continuously.
(1 driving detection logic)
• Accelerator pedal position (APP) sensor (main) circuit
• Accelerator pedal position (APP) sensor assembly
•ECM
• Incorrect mounting of accelerator pedal position (APP)
sensor assembly
