Power Assisted Steering System: 6C-1
Power Assisted Steering System
Precautions
P/S System Note
S5JB0A6300001
NOTE
• Some parts in the power steering gear case cannot be disassembled or adjusted. For detailed
information, refer to the description of “Steering Gear Case Construction: ”.
• All steering gear fasteners are important attaching parts in that they could affect the performance of
vital parts and systems, and/or could result in major repair expense. They must be replaced with one
of the same part number or with an equivalent part if replacement becomes necessary. Do not use a
replacement part of lesser quality or substitute design. Torque values must be used as specified
during reassembly to assure proper retention of these parts.
• Although the figures in this section show only the left-hand steering vehicle, the same work
procedure and data apply to the right-hand steering vehicle.
General Description
P/S System Construction
S5JB0A6301001

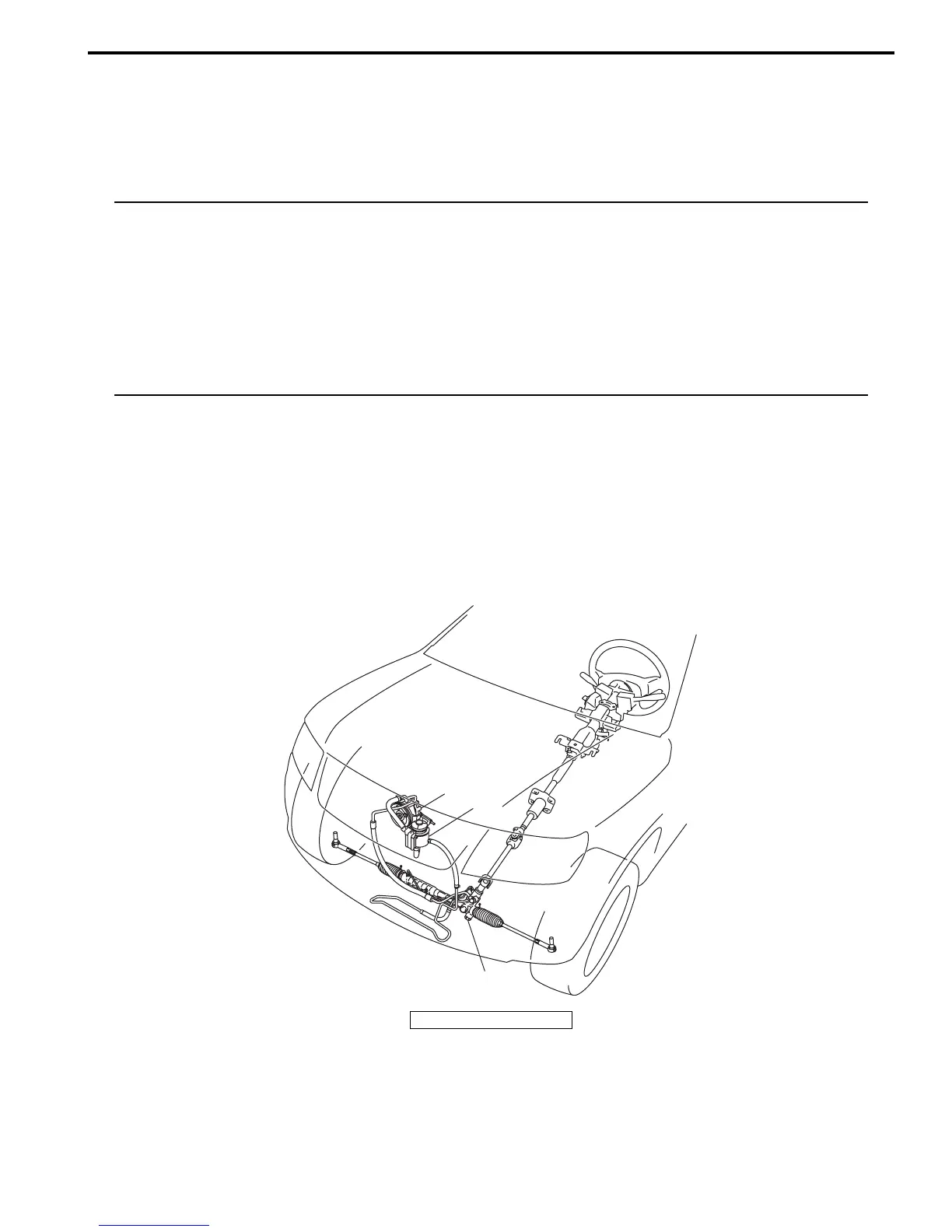

The power steering (P/S) system in this vehicle reduces the driver’s effort needed in turning the steering wheel by
utilizing the hydraulic pressure generated by the power steering (P/S) pump (2) which is driven by the engine.
It is an integral type with the rack and pinion gears and the control valve unit, hydraulic pressure cylinder unit all built in
the steering gear case (1).
2
3
1
I5JB0A630001-01
3. P/S fluid reservoir
