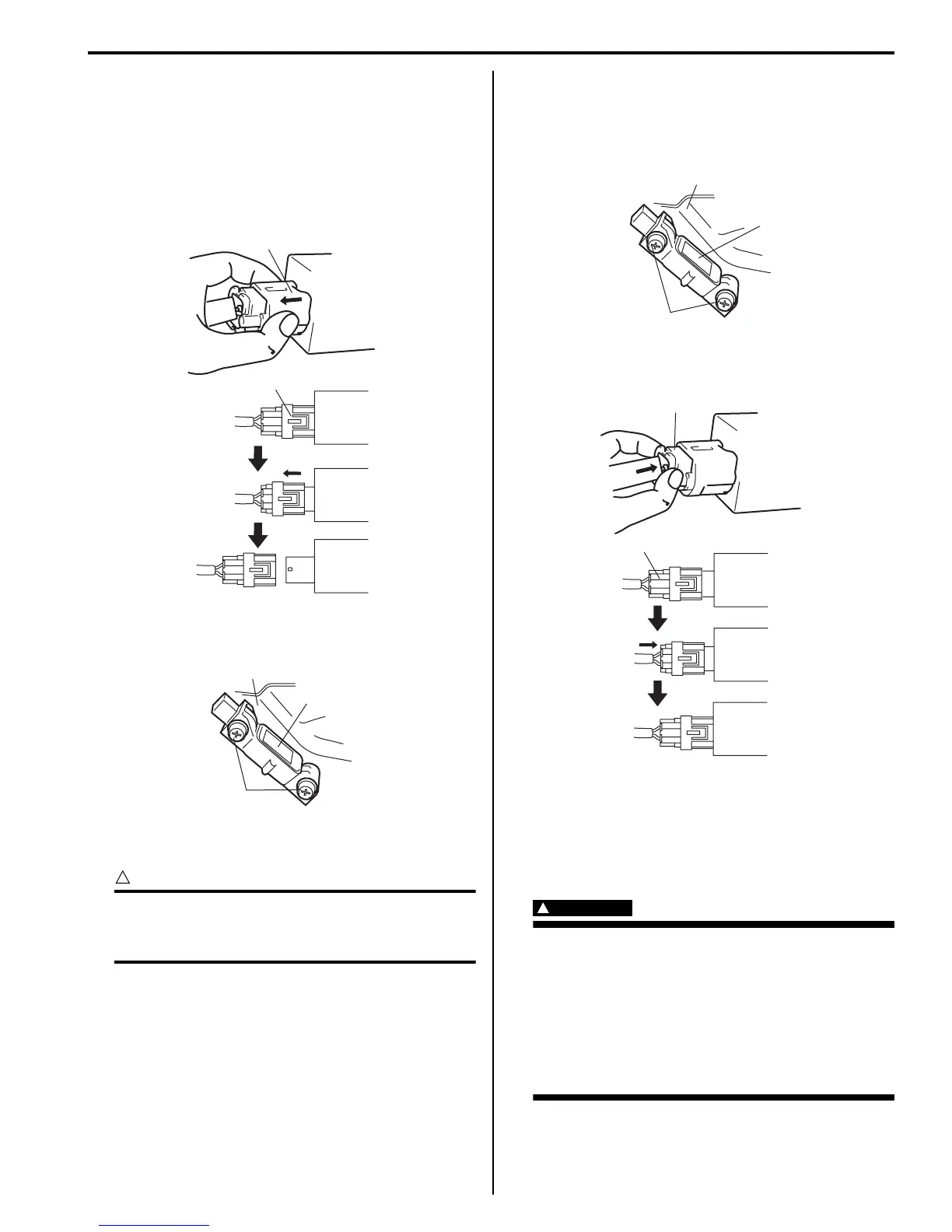

Air Bag System: 8B-109
Removal
1) Disconnect negative (–) cable at battery.
2) Disable air bag system. Refer to “Disabling Air Bag
System: ”.
3) Remove center pillar lower trim and side sill scuff.
4) Disconnect side-sensor connector sliding connector
outer (1) as shown.
5) Remove side-sensor bolts (1), and side-sensor (2)
from under body (3).
Installation
CAUTION
!
Proper operation of side-sensor requires that
sensor is rigidly attached to specified
position.
1) Check that none of following faulty conditions exists.
• Bend, deformity or rust of under body.
• Foreign matter on mating surface of sensor.
2) Install side-sensor (1) on under body (2) and tighten
side-sensor bolt (3) to specified torque.
Tightening torque
Side-sensor bolt (a): 11 N·m (1.1 kgf-m, 8.0 lb-ft)
3) Connect side-sensor connector pushing connector
inner (1) as shown.
4) Connect negative cable at battery.
5) Enable air bag system. Refer to “Enabling Air Bag
System: ”.
Side-Sensor Inspection
S5JB0A8206016
WARNING
!
During service procedures, be very careful
when handling a sensor.
• Never strike or jar a sensor.
• A sensor and mounting bracket bolts must
be carefully torqued to assure proper
operation. Under loose connection, it
could cause improper operation of the air
bag system.
1
1
I5JB0A820094-01
3
2
1
I5JB0A820093-02
2
1
3, (a)
I5JB0A820095-02
1
1
I5JB0A820096-01
