1F-12 Engine Cooling System:
Radiator Removal and Installation
S5JB0A1606014
Removal
1) Disconnect negative cable at battery.
2) For A/T, drain A/T fluid referring to “A/T Fluid
Change: in Section 5A”.
3) Drain coolant.
4) Remove cooling fan assembly referring to “Radiator
Cooling Fan Assembly Removal and Installation: ”.
5) For A/T, remove A/T fluid cooler inlet and outlet
hoses.
6) Remove radiator outlet hose from radiator.
7) Remove condenser bolts from condenser brackets.
8) Remove radiator from vehicle.
Installation
Reverse removal procedures, noting the following.
• Refill cooling system referring to Step 7) to 17) of
“Cooling System Flush and Refill: ”.
• After installation, verify there is no coolant leakage
each connection.
• Refill A/T fluid referring to “A/T Fluid Change: in
Section 5A”.
Water Pump Removal and Installation (For M16
Engine Model)
S5JB0A1606017
Removal
1) Disconnect negative cable at battery.
2) Drain coolant.
3) Remove water pump and generator drive belt
referring to “Water Pump and Generator Drive Belt
Removal and Installation (For M16 Engine): in
Section 1J”.

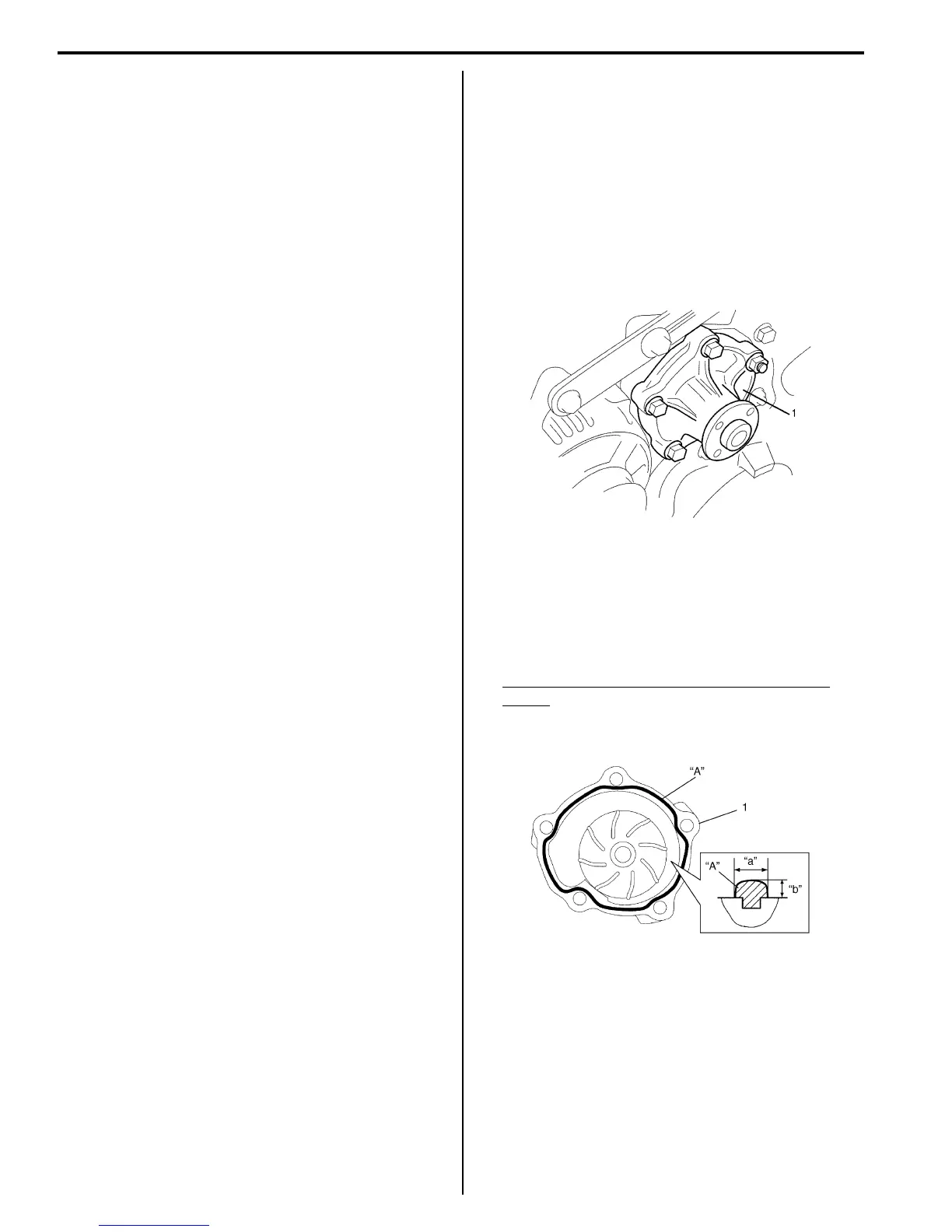

4) Remove water pump assembly (1).
Installation
1) Apply sealant to mating surface of water pump (1) as
shown in the figure.
“A”: Water tight sealant 99000–31250 (SUZUKI
Bond No.1207F)
Sealant quantity (to mating surface of water
pump)
Width “a”: 3 mm (0.12 in.)
Height “b”: 2 mm (0.08 in.)
I2RH0B160016-01
I3RM0A160016-01
