Automatic Transmission/Transaxle: 5A-57
Table for detecting condition
DTC Confirmation Procedure
WARNING
!
• When performing a road test, select a place where there is no traffic or possibility of a traffic
accident and be very careful during testing to avoid occurrence of an accident.
• Road test should be carried out with 2 persons, a driver and tester, on a level road.
1) Connect scan tool to DLC with ignition switch OFF.
2) Clear DTCs in TCM and ECM memories by using scan tool.
3) Start engine and warm it up to normal operating temperature.
4) Shift select lever to “N” and “D” range for each 10 seconds.
5) Start vehicle and increase vehicle speed to 65 km/h (40 mile/h) with throttle position 10% or more.
6) Stop vehicle and turn ignition switch OFF.
7) Repeat Step 3) to 5) one time.
8) Stop vehicle.
9) Check DTC, pending DTC and freeze-frame data.
DTC Troubleshooting
DTC P0962 Pressure Control Solenoid “A” Control Circuit Low
S5JB0A5104039

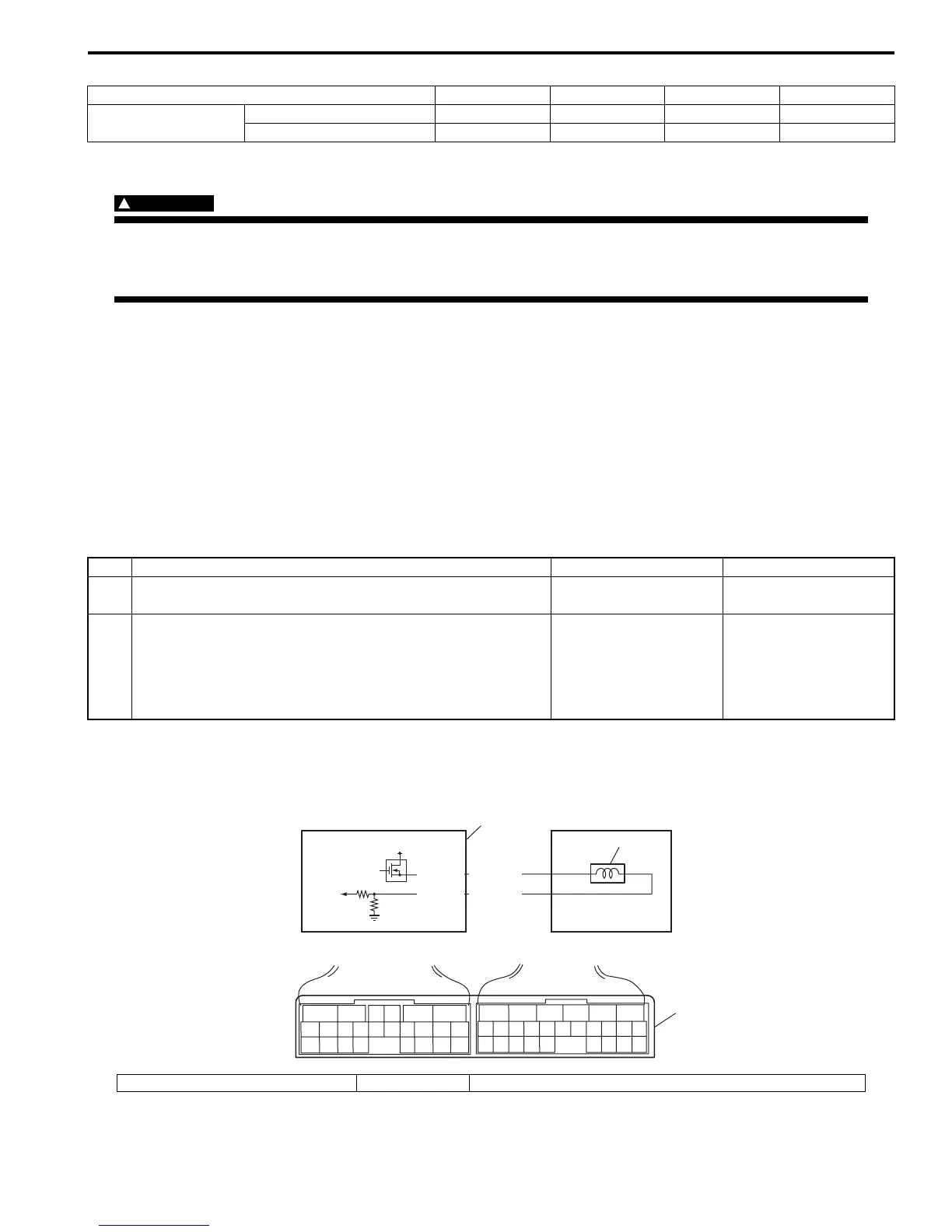

Wiring Diagram
TCM output gear position 1st 2nd 3rd 4th
Actual gear position Stuck OFF (DTC P0756) 1st 1st *1 4th *2 4th
Stuck ON (DTC P0757) 2nd *3 2nd 3rd 3rd *4
Step Action Yes No
1 Was “A/T System Check” performed? Go to Step 2. Go to “A/T System
Check: ”.
2 Check shift solenoid valve–B for operation referring to
“Solenoid Valves (Shift Solenoid-A, Shift Solenoid-B, TCC
Pressure Control Solenoid and Pressure Control Solenoid
Inspection: ”.
Are they in good condition?
Clean fluid passage or
replace valve body
assembly.
Replace shift solenoid
valve–B.
1
2
12V
E92-2
E92-4
YEL/RED
BRN/RED
65
16 15 14 13 12 11
43
24 23 2122
10 9 8 7
21
1920 18 17
E92
17 16
26 25
15 14
65 342
13 12
23 2224
11 10 9
21 20 19
87
18
1
E93
3
I5JB0A510024-01
1. Pressure control solenoid valve 2. TCM 3. Terminal arrangement of TCM connector (viewed from harness side)
