Suzuki GRAND VITARA User Manual

Instrumentation / Driver Info. / Horn: 9C-20

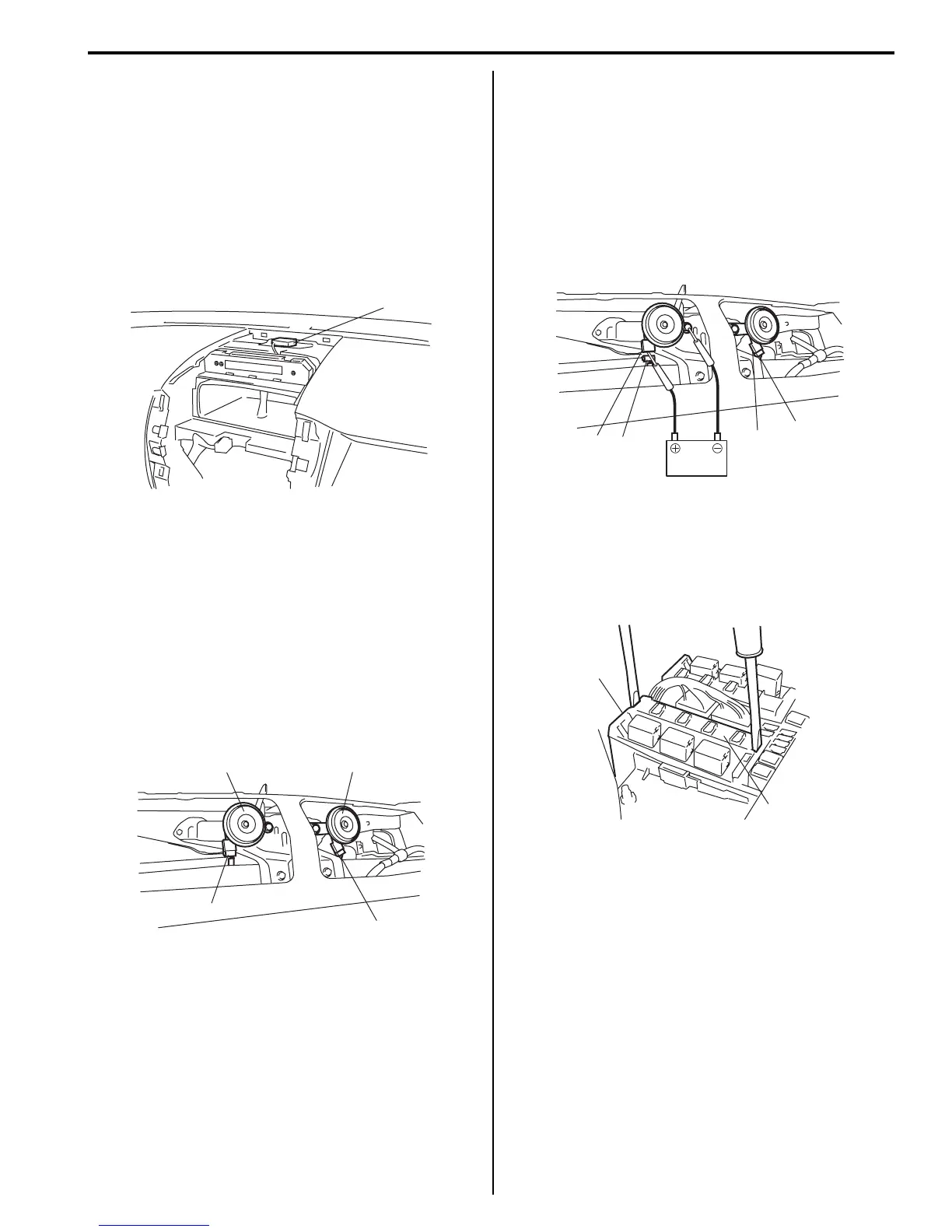

GPS Antenna Removal and Installation (If
Equipped)
S5JB0A9306028
Removal
1) Remove center ventilation louver referring to step 1)
and 2) of “Information Display (Clock) Removal and
Installation: ”.
2) Disconnect GPS antenna connector from navigation
unit referring to “Audio Unit Removal and Installation:
”.
3) Remove GPS antenna (1).
Installation
Reverse removal procedure.
Horn Removal and Installation
S5JB0A9306022
Removal
1) Disconnect negative (–) cable at battery.
2) Remove front bumper referring to “Front Bumper
Components: in Section 9K”.
3) Disconnect horn connector (1).
4) Remove horn (2).
Installation
Reverse removal procedure for installation.
Horn Inspection
S5JB0A9306023
1) Disconnect negative (–) cable at battery.
2) Remove front bumper referring to “Front Bumper
Components: in Section 9K”.
3) Disconnect horn connector (1).
4) Connect battery positive (+) to terminal of horn
connector (2) and negative (–) terminal to body
ground.
If horn is not sounding, replace horn.
Horn Relay Inspection
S5JB0A9306024
1) Disconnect negative (–) cable at battery.
2) Remove horn relay (included in integration relay) (1)
from main fuse box (2).
1
I5JB0A930023-01
1
22
1
I5JB0A930029-01
1
2
2
1
I5JB0A930024-01
2
1
I5JB0A950031-01
