Automatic Transmission/Transaxle: 5A-83
Select Cable Component
S5JB0A5106047
Select Cable Adjustment
S5JB0A5106048
1) Loosen manual select cable nut.
2) Shift select lever to “N”.
3) Align center line (1) on manual shift shaft (2) to “N”
reference line (3) as shown in figure.
4) Tighten manual select cable nut (1) to specified
torque.
Tightening torque
Manual select cable nut (a): 13 N·m (1.3 kgf-m,
9.5 lb-ft)
5) After select cable was adjusted, check for the
following.
• Push vehicle with selector lever shifted to “P”.
Vehicle should not move.
• Vehicle can not be driven in “N”.
• Vehicle can be driven in “D”, “3”, “2” and “L”.
• Vehicle can be backed in “R”.
1
2
3
4
5
6
7
8
9
(a)
(b)
(c)
(d)

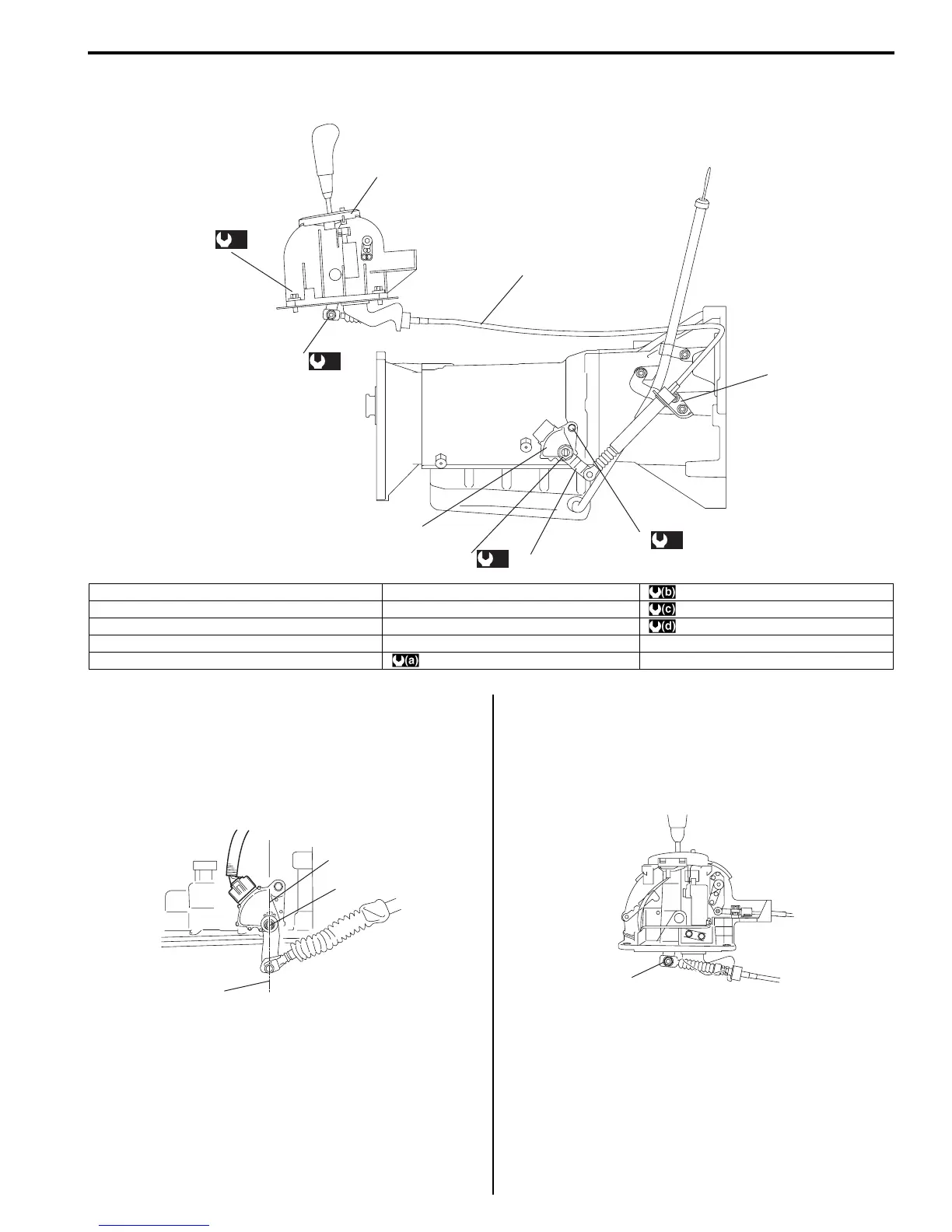

I5JB0A510035-01
1. Manual selector assembly 6. Manual select cable nut : 13 N⋅m (1.3 kgf-m, 9.5lb-ft)
2. Manual selector assembly mounting bolt 7. Manual select lever nut : 12.5 N⋅m (1.25 kgf-m, 9.0 lb-ft)
3. Select cable 8. Transmission range sensor : 5.3 N⋅m (0.53 kgf-m, 4.0 lb-ft)
4. Select cable bracket 9. Transmission range sensor bolt
5. Manual select lever : 17.5 N⋅m (1.75 kgf-m, 13.0 lb-ft)
1
2
3
I5JB0A510038-02
1, (a)
I5JB0A510036-02
To Next Page
