Air Bag System: 8B-15
) B1086 1086
Left side-sensor
Performance problem
Diagnose trouble
according to
diagnostic flow
corresponding to
each code No.
) B1087 1087 Communication error
) B1096 1096
Right side-sensor
Performance problem
) B1097 1097 Communication error
) B1321 1321
Left side-air bag
Resistance high
) B1322 1322 Resistance low
) B1323 1323 Short to ground
) B1324 1324 Short to power circuit
) B1325 1325
Right side-air bag
Resistance high
) B1326 1326 Resistance low
) B1327 1327 Short to ground
) B1328 1328 Short to power circuit
) B1331 1331
Left side curtain-air
bag circuit
Resistance high
) B1332 1332 Resistance low
) B1333 1333 Short to ground
) B1334 1334 Short to power circuit
) B1335 1335
Right side curtain-air
bag circuit
Resistance high
) B1336 1336 Resistance low
) B1337 1337 Short to ground
) B1338 1338 Short to power circuit

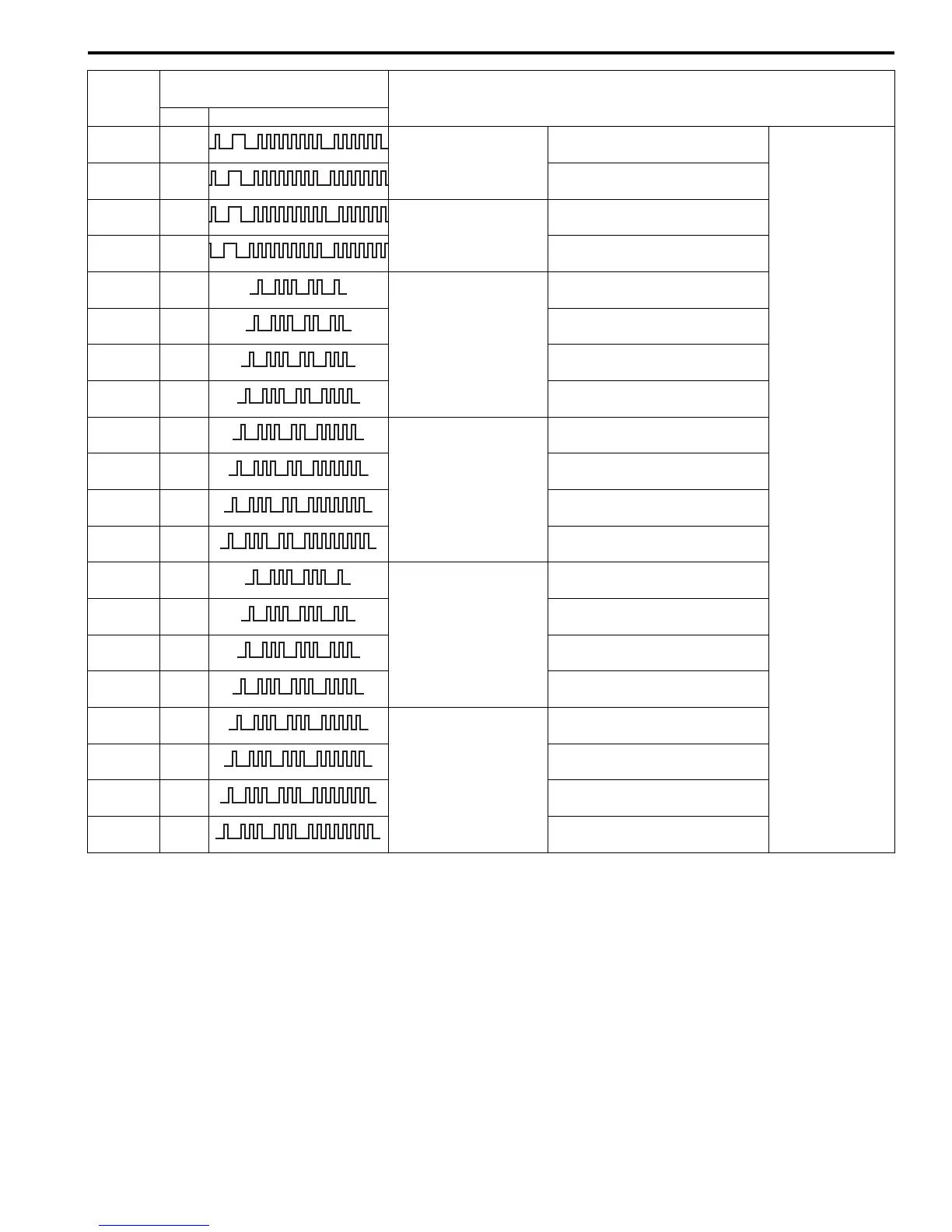

DTC
“AIR BAG” warning lamp
flashing pattern Diagnosis
No. Mode
MCODEB1086-0-01
MCODEB1087-0-01
MCODEB1096-0-01
MCODEB1097-0-01
MCODEB1321-0-01
MCODEB1322-0-01
MCODEB1323-0-01
MCODEB1324-0-01
MCODEB1325-0-01
MCODEB1326-0-01
MCODEB1327-0-01
MCODEB1328-0-01
MCODEB1331-0-01
MCODEB1332-0-01
MCODEB1333-0-01
MCODEB1334-0-01
MCODEB1335-0-01
MCODEB1336-0-01
MCODEB1337-0-01
MCODEB1338-0-01
