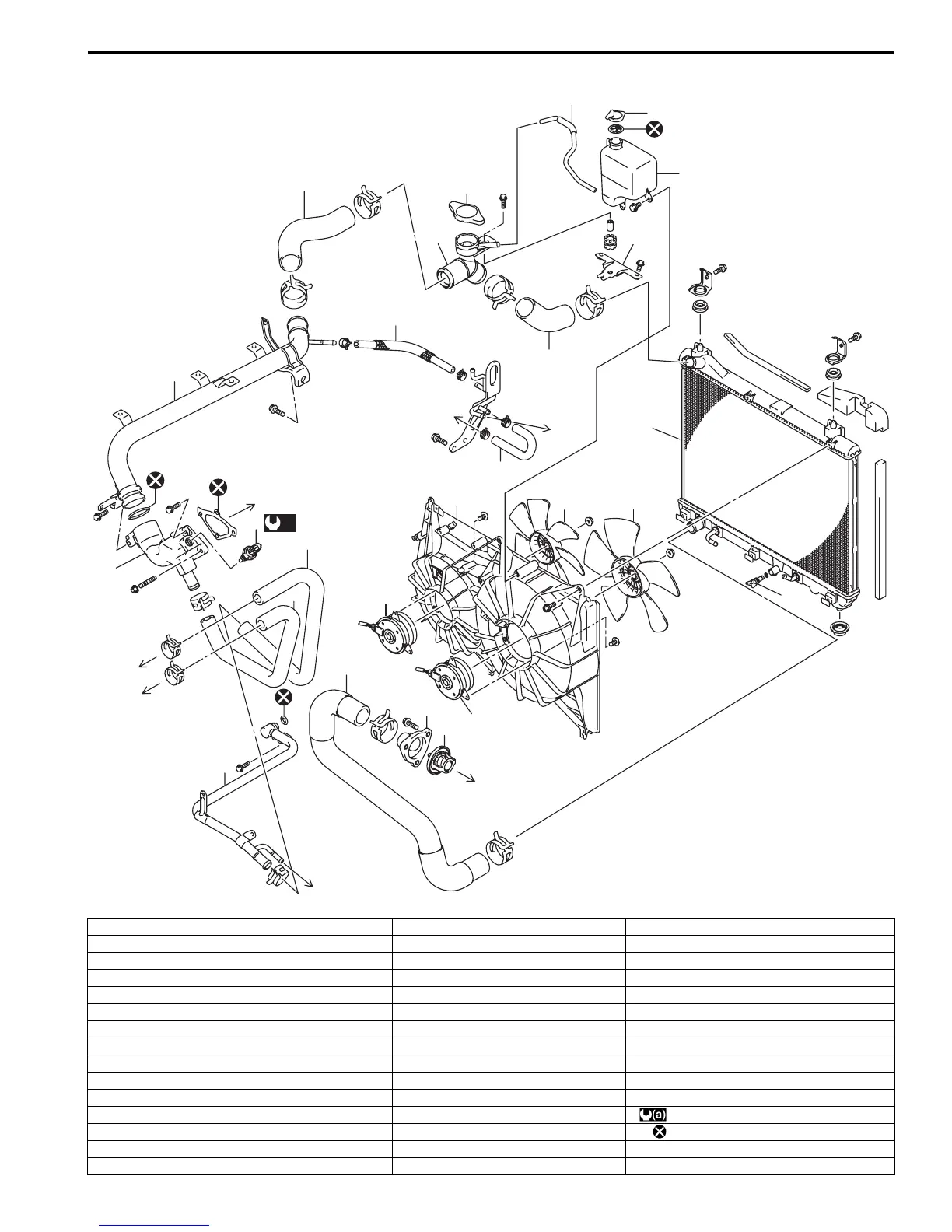

Engine Cooling System: 1F-5
[B]
8
(a)
21
25
24
15
7
11
6
16
5
33
3
16
14
31
34
29
30
29
32
32
1
4
36
35
37
38
26
2
39
22
23
10
10
9
9
I5JB0A161004-03
[A]: M16 engine model 14. Thermostat 29. To cylinder head
[B]: J20 engine model 15. Thermostat cap 30. To water pump
1. Radiator 16. Radiator inlet No.2 hose 31. To heater core
2. Reservoir 17. Water filler neck 32. To throttle body
3. Radiator cap 18. Water inlet hose 33. Water bypass No.2 hose
4. Drain plug 19. Radiator outlet pipe 34. Water bypass No.1 hose
5. Radiator outlet hose 20. Heater outlet No.2 hose 35. Main fan motor
6. Radiator inlet No.1 hose 21. Heater pipe 36. Sub fan motor
7. Water outlet cap 22. Reservoir hose 37. Sub fan
8. ECT sensor 23. Water filler neck bracket 38. Main fan
9. Gasket 24. Heater inlet hose 39. Reservoir cap
10. O-ring 25. Heater outlet No.1 hose : 13 N⋅m (1.3 kgf-m, 9.5 lb-ft)
11. Water outlet pipe 26. Fan shroud : Do not reuse.
12. Thermostat case water outlet pipe 27. To water filler neck
13. Thermostat case 28. To timing chain cover
