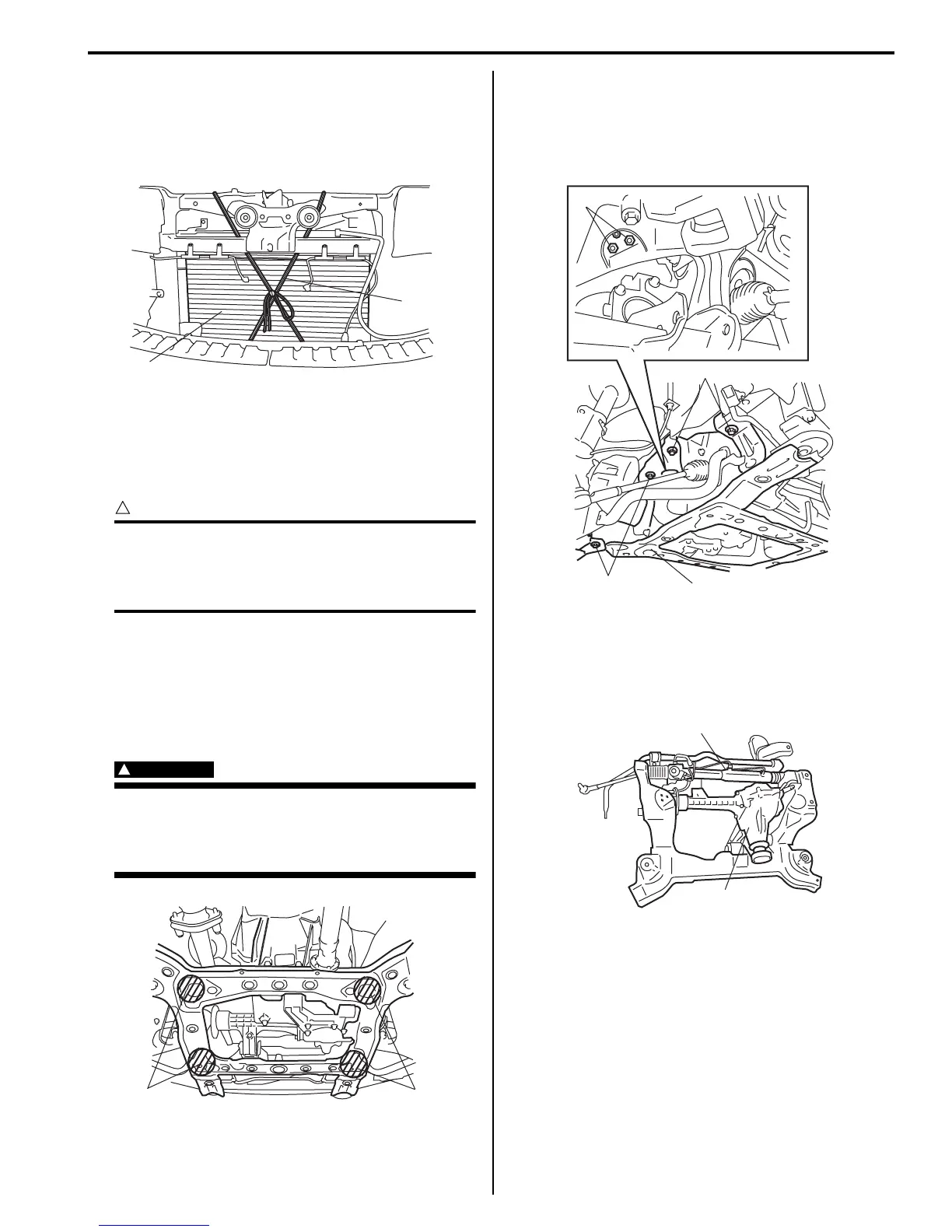

Front Suspension: 2B-19
11) Remove front propeller shaft referring to “Propeller
Shaft Removal and Installation: in Section 3D”.
12) Fix radiator (2) to body with rope (1) to avoid the
radiator (2) fall off when front suspension frame
lowered.
13) Support engine assemble as follows.
• For using engine supporting device
Using engine supporting device, support engine
according to “Engine Supporting Points: in
Section 0A”.
CAUTION
!
Be sure to support engine by using engine
front hunger only. Failure to follow this
instruction could result in damage to engine
front and rear hungers.
• For using chain hoist
a) Remove hood referring to “Hood Removal and
Installation: in Section 9J”.
b) Support engine assemble by using chain hoist.
14) Support suspension frame at the specified positions
(1) indicated in figure.
WARNING
!
When removing suspension frame, be sure to
apply some supporting equipment under it at
well-balanced position as shown in the figure
section so as to prevent from its drop.
15) Remove engine front body side mounting nuts (1).
16) Remove suspension frame mounting bolts (2), and
then lower suspension frame (3) with stabilizer bar,
P/S gear box assembly and front differential
assembly.
17) Remove P/S gear box assembly (1) and front
differential assembly (2) referring to “P/S Gear Case
Assembly Removal and Installation: in Section 6C”
and “Front Differential Dismounting and Remounting:
Front in Section 3B”.
1
2
I5JB0A220046-01
1
1
I5JB0A220047-01
1
2
2
3
I5JB0A220048-01
1
2
I5JB0A220049-01
To Next Page
