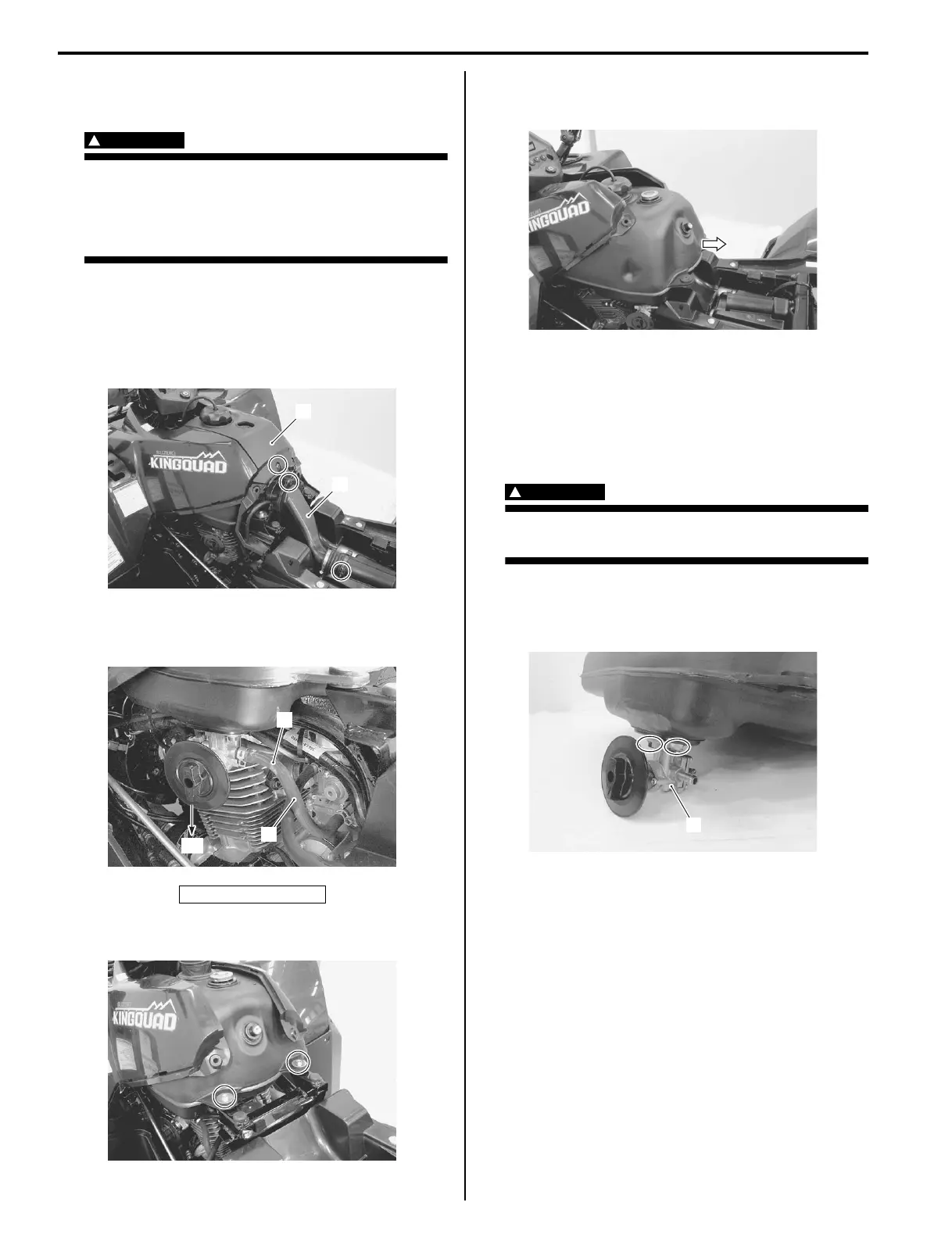

1G-13 Fuel System:
Fuel Tank Removal and Installation
B827H11706009
Removal
WARNING
!
• Keep away from fire or spark.
• Spilled gasoline should be wiped off
immediately.
• Work in a well-ventilated area.
1) Remove the side covers. Refer to “Exterior Parts
Removal and Installation in Section 9D (Page 9D-
3)”.
2) Remove the air cleaner duct (1) and fuel tank upper
cover (2).
3) Turn the fuel valve ON position “A”.
4) Disconnect the fuel hose (3) and vacuum hose (4).
5) Remove the fuel tank mounting bolts.
6) Remove the fuel tank backward.
7) Drain fuel completely.
Installation
Remount the fuel tank in the reverse order of removal.
Fuel Valve Removal and Installation
B827H11706019
Removal
WARNING
!
Gasoline is very explosive. Extreme care
must be taken.
1) Remove the fuel tank. Refer to “Fuel Tank Removal
and Installation (Page 1G-13)”.
2) Remove the fuel valve (1).
“A”: ON position
1
2
I827H1170017-01
“A”
3
4
I827H1170018-02
I827H1170019-01
I827H1170020-02
1
I827H1170021-01
To Next Page
