Suzuki LT-A400F Service Manual

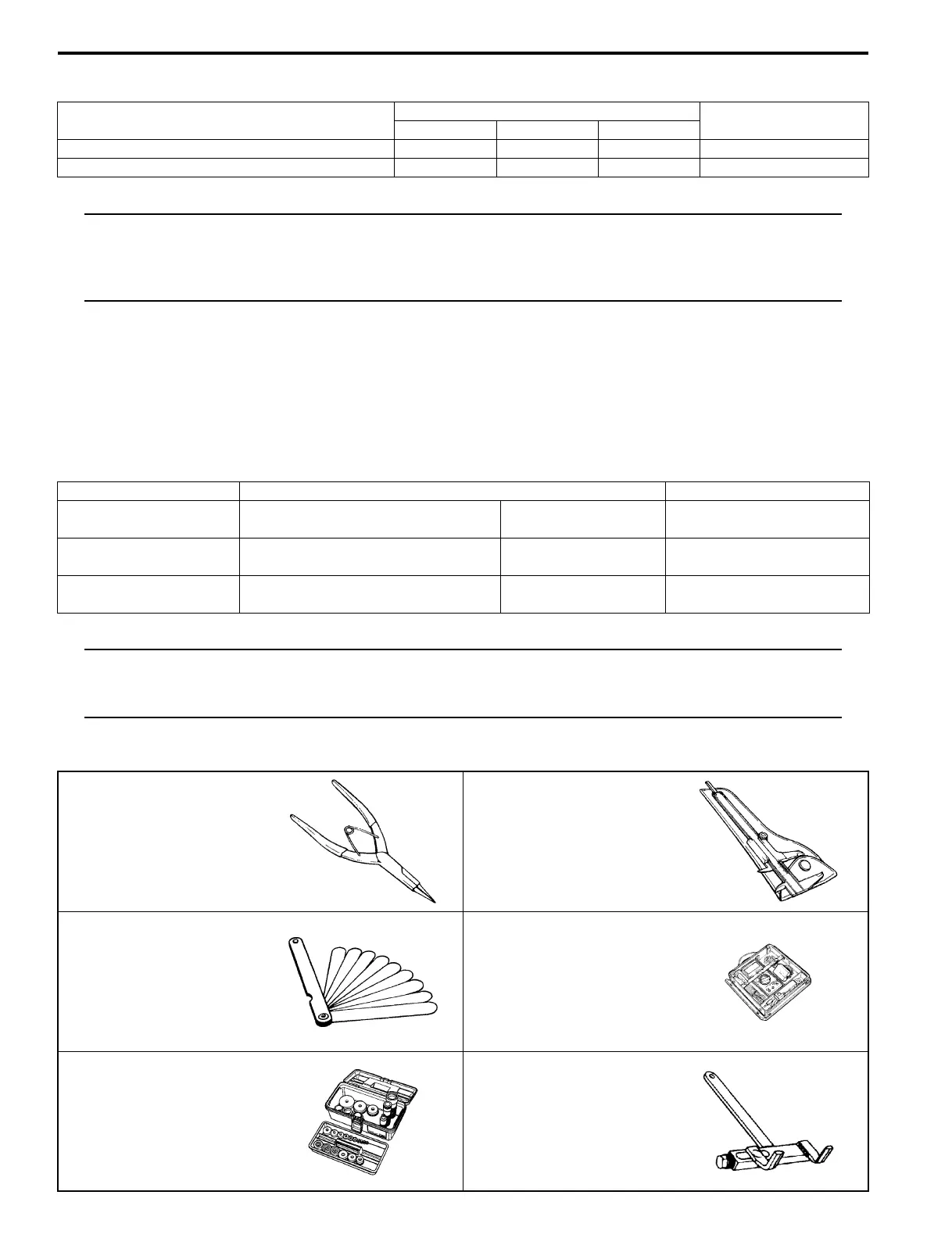

3C-23 Transfer:
Tightening Torque Specifications
B827H13307003
NOTE
The specified tightening torque is also described in the following.
“Transfer Gearshift Cam Components (LT-A400/F) (Page 3C-10)”
“Transfer Range Lever Components (LT-A400/F) (Page 3C-20)”
“Transfer Range Lever Components (LT-F400/F) (Page 3C-20)”
Reference:
For the tightening torque of fastener not specified in this section, refer to “Tightening Torque List (LT-A400/F) in
Section 0C (Page 0C-9)”.
Special Tools and Equipment
Recommended Service Material
B827H13308001
NOTE
Required service material is also described in the following.
“Transfer Gearshift Cam Components (LT-A400/F) (Page 3C-10)”
“Transfer Gearshift Cam Components (LT-F400/F) (Page 3C-11)”
Special Tool
B827H13308002
Fastening part
Tightening torque
Note
N⋅mkgf-mlb-ft
Drive bevel gear nut 100 10.0 72.5 )(Page 3C-6)
Gearshift cam stopper nut 10 1.0 7.0 )(Page 3C-18)
Material SUZUKI recommended product or Specification Note
Grease SUZUKI SUPER GREASE A or
equivalent
P/No.: 99000–25010 )(Page 3C-20)
Sealant SUZUKI BOND No.1207B or
equivalent
P/No.: 99000–31140 )(Page 3C-17)
Thread lock cement THREAD LOCK CEMENT SUPER
1322 or equivalent
P/No.: 99000–32110 )(Page 3C-18)
09900–06107 09900–20102
Snap ring pliers Vernier calipers (1/20 mm,
200 mm)
)(Page 3C-4) / )(Page 3C-
7) / )(Page 3C-17)
)(Page 3C-15) /
)(Page 3C-15) /
)(Page 3C-16) /
)(Page 3C-16)
09900–20803 09900–25008
Thickness gauge Multi-circuit tester set
)(Page 3C-15) /
)(Page 3C-15)
)(Page 3C-22)
09913–70210 09920–53740
Bearing installer set Clutch sleeve hub holder
)(Page 3C-19) )(Page 3C-4) / )(Page 3C-
6)
