Wheels and Tires: 2D-5
NOTE

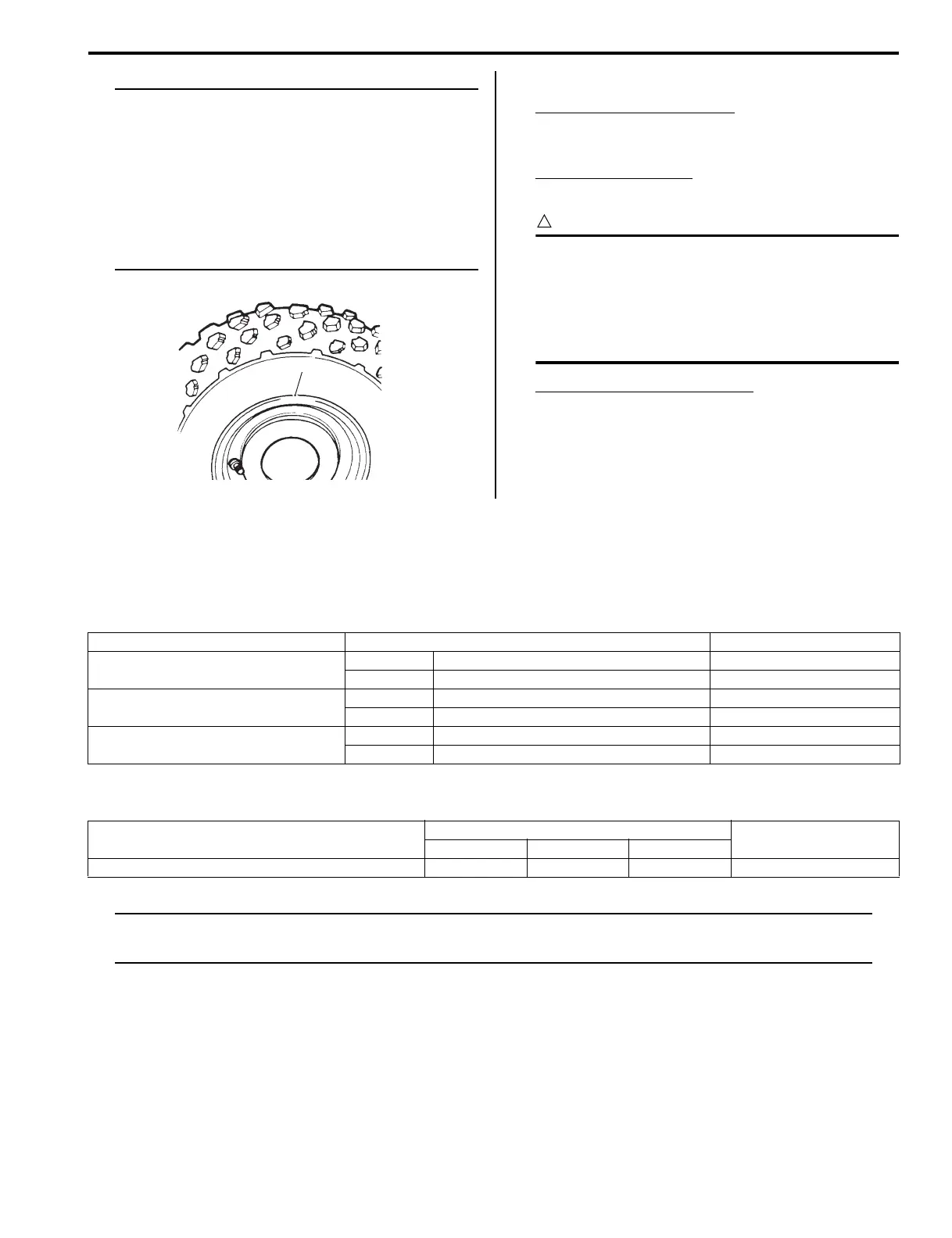

Check the “rim line” “B” cast on the tire
sidewalls. It must be equidistant from the
wheel rim all the way around. If the distance
between the rim line and the wheel rim
varies, this indicates that the bead is not
properly seated. If this is so, deflate the tire
completely, and unseat the tire bead on both
sides. Then, coat the bead with clean water,
and re-seat the tire.
6) Adjust the tire pressure to the specified pressure.
Cold inflation tire pressure
Front: 32.5 kPa (0.325 kgf/cm
2
, 4.7 psi)
Rear: 30 kPa (0.30 kgf/cm
2
, 4.4 psi)
Vehicle load capacity
172 kg (380 lbs)
CAUTION
!
Before inflating the tire, check the MAXIMUM
OPERATING PRESSURE rating of the tire.
This is indicated by a “” following the tire
size shown on the sidewall. The number of
“” on the tire indications the maximum
operating pressure.
Maximum operating pressure
: 25 kPa (0.25 kgf/cm
2
, 3.6 psi)
: 35 kPa (0.35 kgf/cm
2
, 5.1 psi)
: 45 kPa (0.45 kgf/cm
2
, 6.5 psi)
Specifications
Service Data (LT-A400/F, LT-F400/F)
B827H12407001
Tire
Tightening Torque Specifications
B827H12407002
NOTE
The specified tightening torque is also described in the following.
“Front and Rear Wheel Components (Page 2D-2)”
Reference:
For the tightening torque of fastener not specified in this section, refer to “Tightening Torque List (LT-A400/F) in
Section 0C (Page 0C-9)”.
“B”
I831G1240012-02
Item Standard Limit
Cold inflation tire pressure
Front 32.5 kPa (0.325 kgf/cm
2
, 4.7 psi) —
Rear 30 kPa (0.30 kgf/cm
2
, 4.4 psi) —
Tire size
Front AT25 x 8-12 , tubeless —
Rear AT25 x 10-12 , tubeless —
Tire tread depth
Front — 4.0 (0.16)
Rear — 4.0 (0.16)
Fastening part
Tightening torque
Note
N⋅mkgf-mlb-ft
Wheel set nut (Front and rear) 60 6.0 43.5 )(Page 2D-3)
