3B-21 Differential:
Final Gear Oil Level Inspection
B827H13206014
Refer to “Final Gear Oil Inspection in Section 0B
(Page 0B-11)”.
Final Gear Oil Replacement
B827H13206015
Refer to “Final Gear Oil Inspection in Section 0B
(Page 0B-11)”.

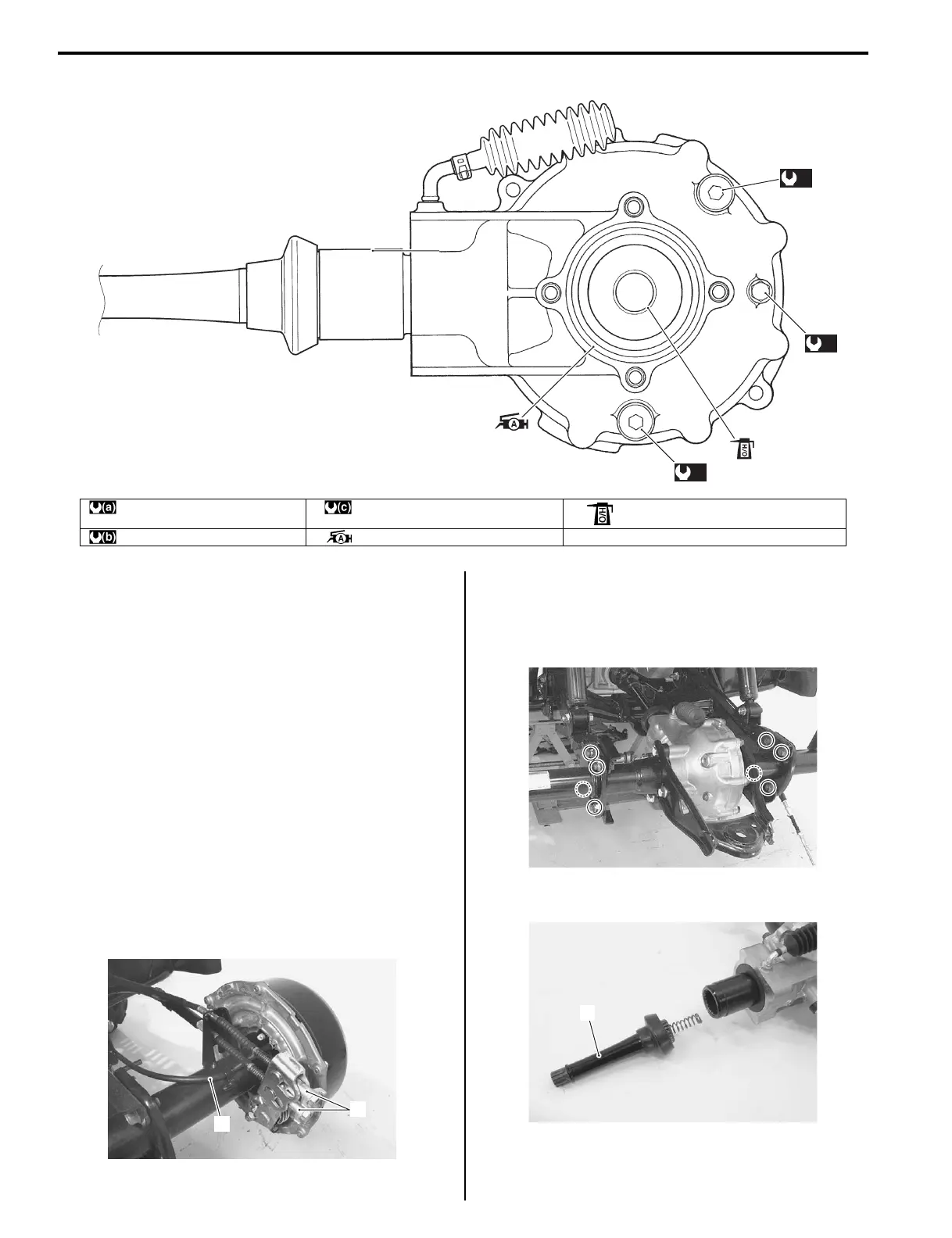

Final Gear Assembly Removal and Installation
B827H13206016
Removal
1) Drain the final gear oil. Refer to “Final Gear Oil
Inspection in Section 0B (Page 0B-11)”.
2) Remove the rear wheel. Refer to “Front / Rear
Wheel Removal and Installation in Section 2D
(Page 2D-3)”.
3) Disconnect the rear brake cables (1) and breather
hose (2).
4) Remove the rear axle housing mounting bolts from
the swingarm.
5) Remove the final gear assembly together with the
axle housings.
6) Remove the rear propeller shaft (3) and spring.
(c)
(b)
(a)
I827H1320064-02
: 33 N⋅m (3.3 kgf-m, 24.5 lb-ft) : 33 N⋅m (3.3 kgf-m, 24.5 lb-ft) : Apply hypoid gear oil.
: 10 N⋅m (1.0 kgf-m, 7.0 lb-ft) : Apply grease.
1
2
I827H1320065-01
I827H1320066-01
3
I827H1320067-01
To Next Page
