Automatic Transmission: 5A-6

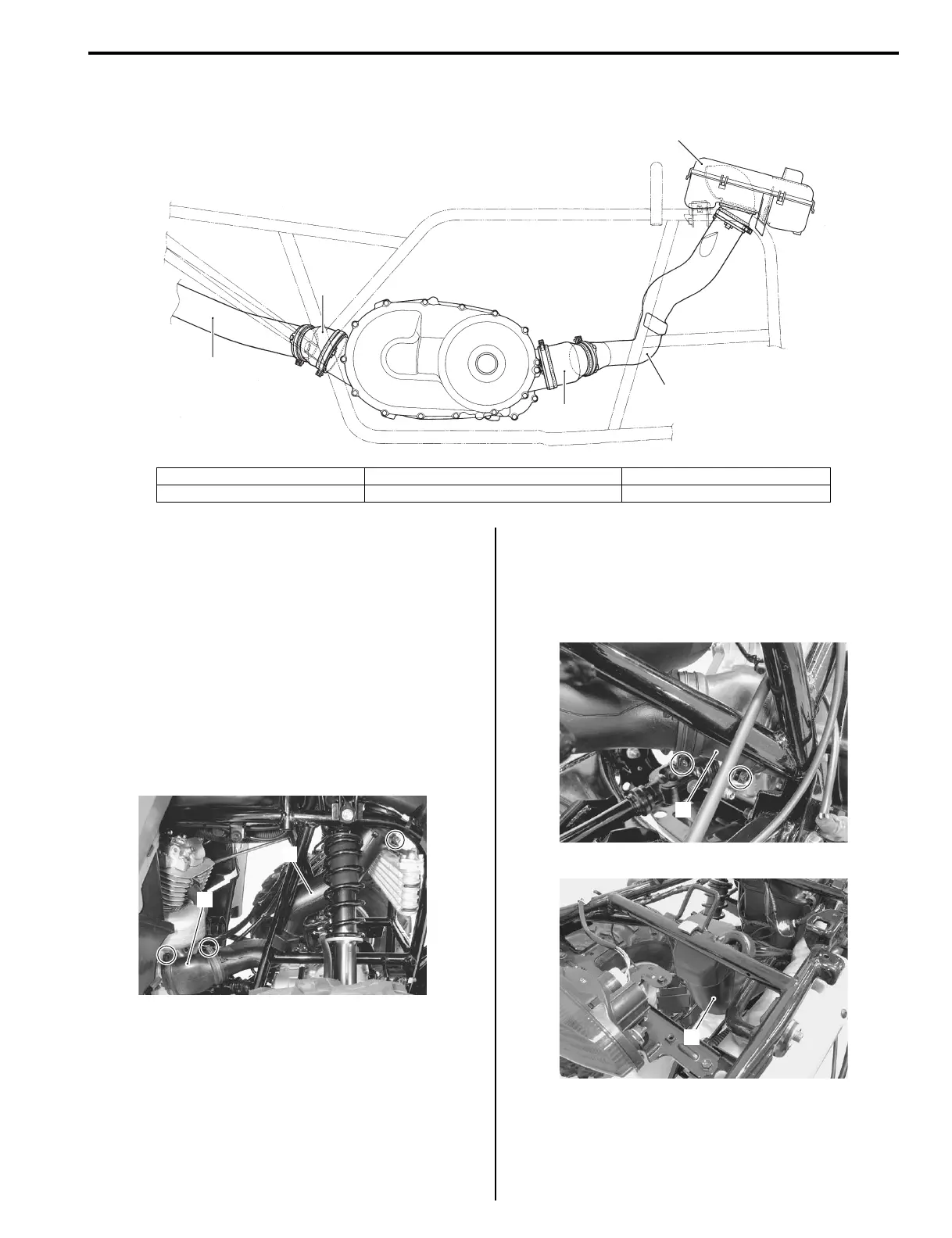

V-belt Cooling Duct Construction
B827H15106002
V-belt Cooling Duct Removal and Installation
(LT-A400/F)
B827H15106003
Removal
1) Remove the right inner fender. Refer to “Exterior
Parts Removal and Installation in Section 9D
(Page 9D-3)”.
2) Remove the cooling fan. Refer to“Cooling Fan
Removal and Installation in Section 1E (Page 1E-
13)”.
3) Loosen the clamp screws and remove the inlet
cooling duct (1) and connector (2).
4) Remove the rear fender. Refer to “Exterior Parts
Removal and Installation in Section 9D (Page 9D-
3)”.
5) Loosen the clamp screws and remove the connector
(3) and outlet belt cooling duct (4).
5
4
1
2
3
I827H1510005-02
1. Inlet cooling duct connector 3. Induction box 5. Outlet cooling duct
2. Inlet cooling duct 4. Outlet cooling duct connector
1
2
I827H1510006-01
3
I827H1510007-01
4
I827H1510008-01
To Next Page
