Suzuki LT-A400F Service Manual

Manual Transmission: 5B-10

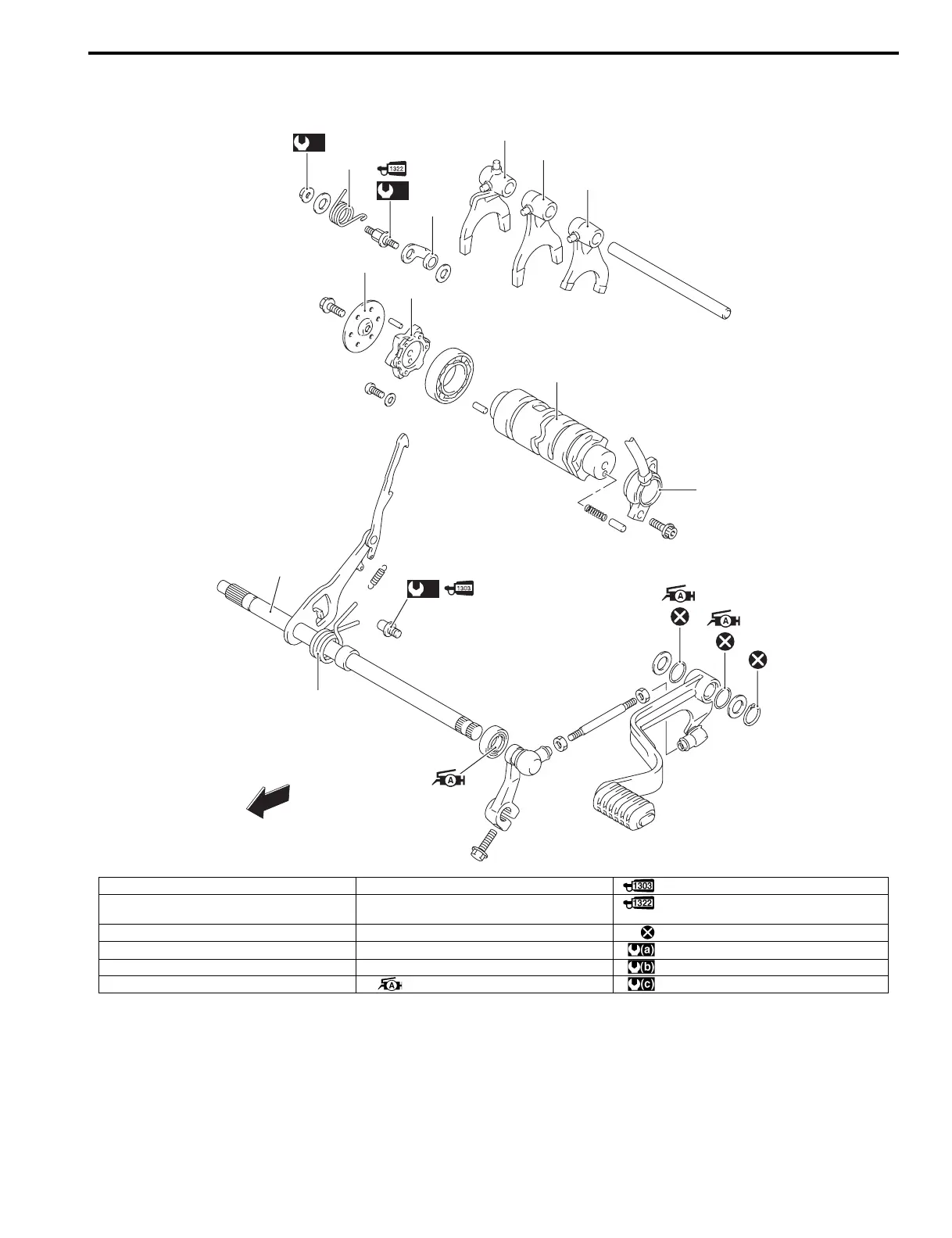

Gearshift Shaft / Gearshift Cam Plate Components (LT-F400/F)
B827H15206019
(a)
4
(b)
5
1
3
2
6
7
8
9
(c)
11
10
FWD
FWD
I827H1520032-02
1. Gearshift fork (for reverse gear) 7. Gearshift cam plate : Apply thread lock to thread part.
2. Gearshift fork (for 1st driven 3rd driven
gear)
8. Gearshift cam : Apply thread lock to thread part.
3. Gearshift fork (for 2nd driven gear) 9. Gear position switch : Do not reuse.
4. Gearshift spring 10. Gearshift shaft : 10 N⋅m (1.0 kgf-m, 7.0 lb-ft)
5. Gearshift cam stopper 11. Return spring : 10 N⋅m (1.0 kgf-m, 7.0 lb-ft)
6. Gearshift cam plate guide : Apply grease. : 19 N⋅m (1.9 kgf-m, 13.5 lb-ft)
