Suzuki LT-A400F Service Manual

Front Suspension: 2B-2

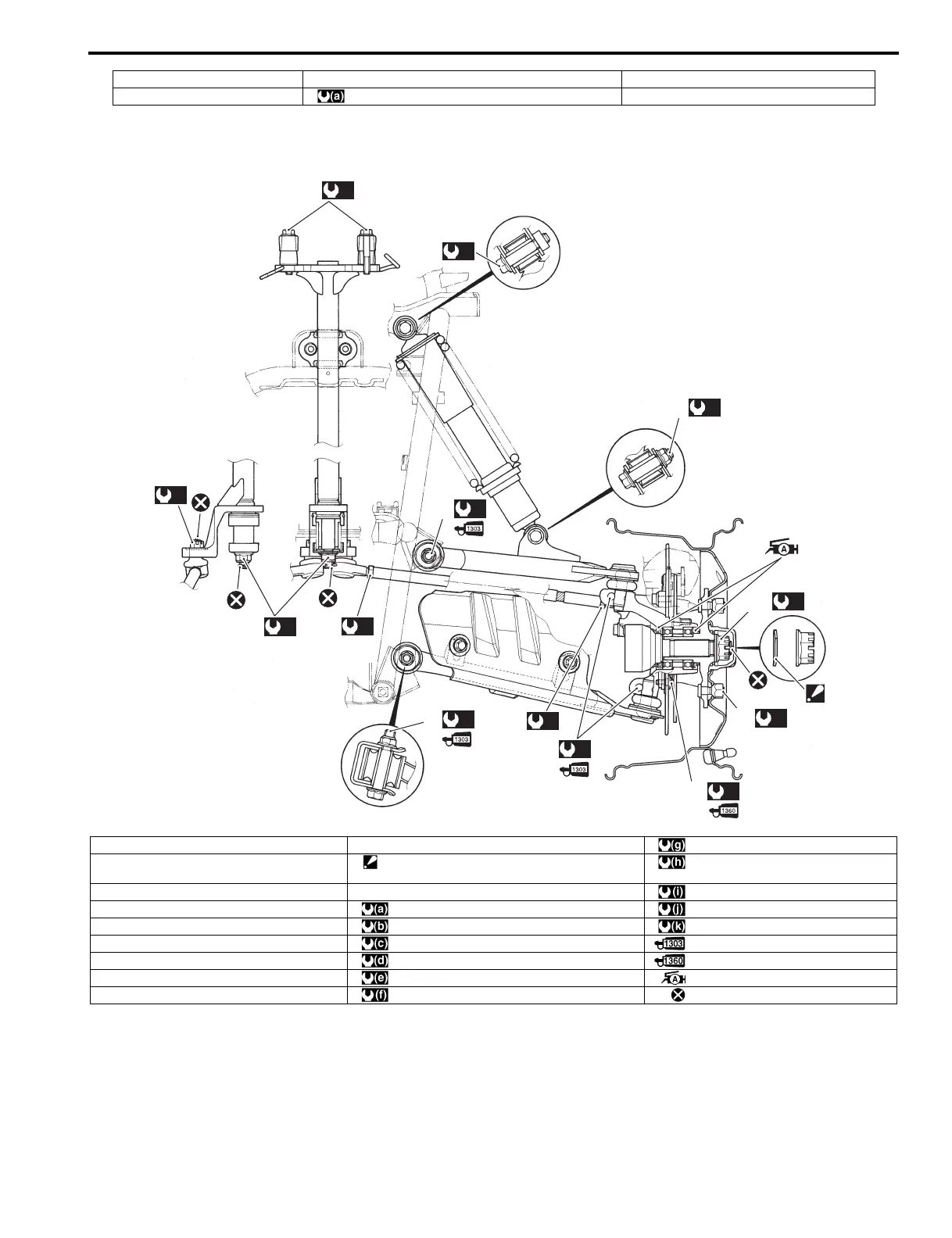

Front Suspension Assembly Construction
B827H12206002
8. Outer dust seal 17. Tie rod end nut
9. Lower suspension arm : 55 N⋅m (5.5 kgf-m, 40.0 lb-ft)
(a)
1
(g)
7
(b)
2
(c)
3
(j)
10
11
(i)
9
(k)
12
(h)
8
(e)
5
(g)
7
(e)
5
(d)
4
(f)
6
I827H1220001-04
1. Front shock absorber mounting bolt (Upper) 10. Front hub nut : 65 N⋅m (6.5 kgf-m, 47.0 lb-ft)
2. Front shock absorber mounting nut (Lower) 11. Washer
: The conical side of washer faces outside.
: 50 N⋅m (5.0 kgf-m, 36.0 lb-ft)
3. Handlebar clamp bolt 12. Brake disc cover mounting bolt : 60 N⋅m (6.0 kgf-m, 43.5 lb-ft)
4. Steering shaft lower nut : 55 N⋅m (5.5 kgf-m, 60.0 lb-ft) : 110 N⋅m (11.0 kgf-m, 79.5 lb-ft)
5. Tie-rod lock-nut : 60 N⋅m (6.0 kgf-m, 43.5 lb-ft) : 12 N⋅m (1.2 kgf-m, 8.5 lb-ft)
6. Tie-rod end nut : 26 N⋅m (2.6 kgf-m, 19.0 lb-ft) : Apply thread lock to thread part.
7. Suspension arm pivot nut : 49 N⋅m (4.9 kgf-m, 35.0 lb-ft) : Apply thread lock to thread part.
8. Steering knuckle pinch bolt : 29 N⋅m (2.9 kgf-m, 21.0 lb-ft) : Apply grease.
9. Front wheel set nut : 29 N⋅m (2.9 kgf-m, 21.0 lb-ft) : Do not reuse.
