Manual Transmission: 5B-6

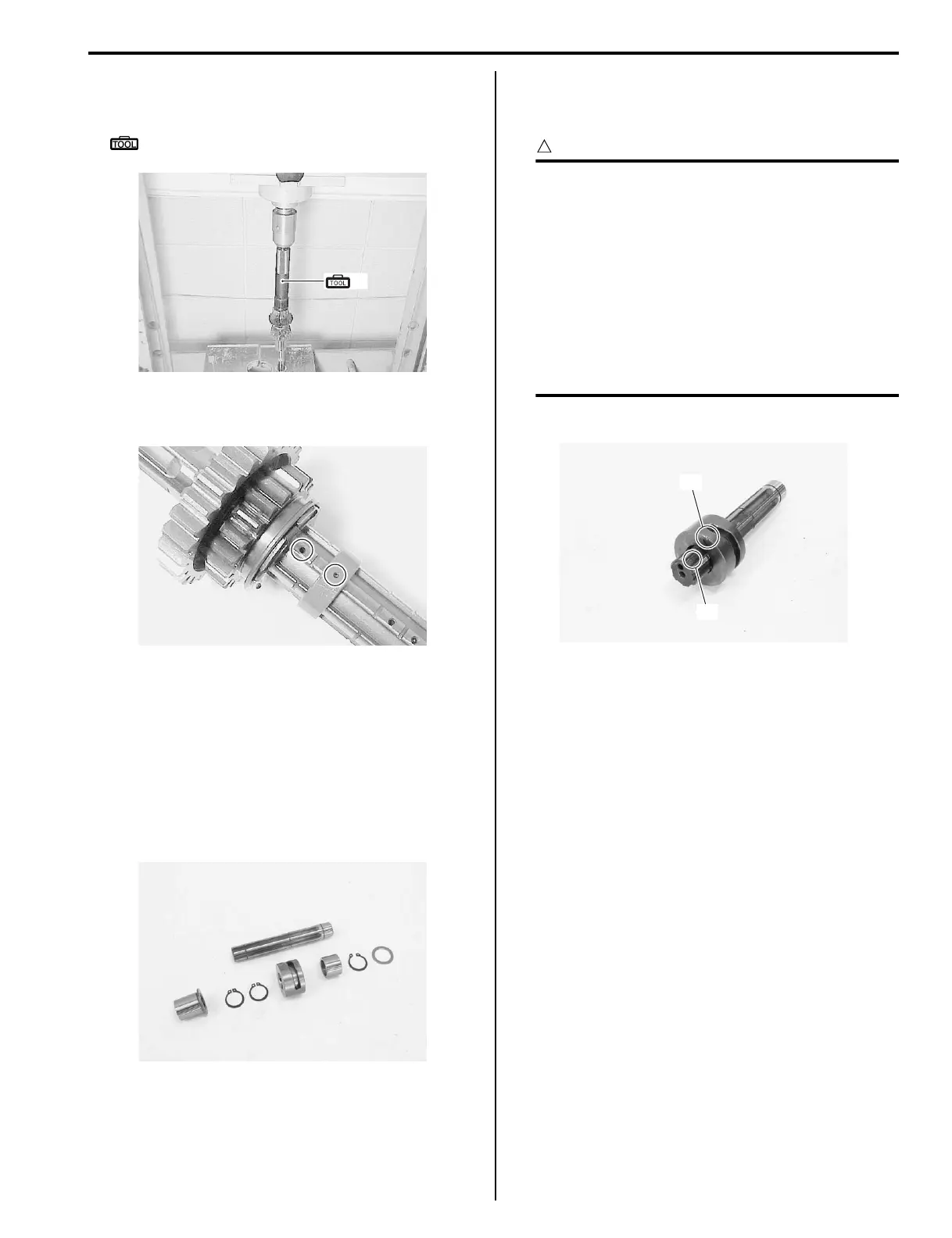

• Fit the special tool and install the 2nd drive gear using
a hydraulic press.
Special tool
(A): 09913–70210 (Bearing installer set)
• When Installing the bushings, align the shaft hole with
the bushing hole.
Transmission Reverse Gearshift Cam
Disassembly and Assembly (LT-F400/F)
B827H15206018
Refer to “Transmission Removal and Installation (LT-
F400/F) (Page 5B-3)”.
Disassembly
Disassemble the reverse gearshift cam assembly as
shown in the figure.
Assembly
When assembling the reverse gearshift cam, pay
attention to the following points:
CAUTION
!
• Never reuse a snap ring. After a snap ring
has been removed from a shaft, it should
be discarded and a new snap ring must be
installed.
• When installing a snap ring, care must be
taken not to expand the end gap larger
than required to slip the snap ring over the
shaft.
• After installing a snap ring, always ensure
that it is completely seated in its groove
and securely fitted.
• Align the punch mark “A” with “B” on the shaft.
(A)
I827H1520013-01
I827H1520014-01
I827H1520011-03
“A”
“B”
I827H1520016-03
